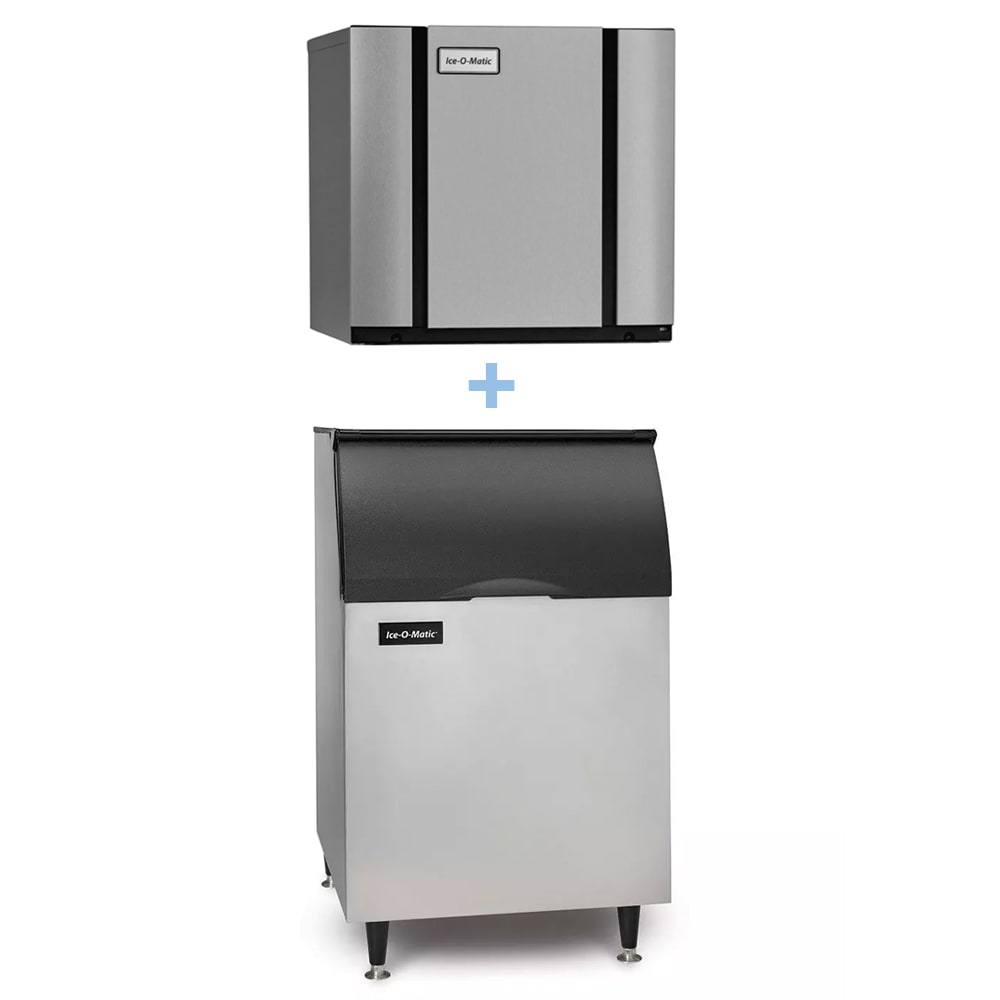

Ice-O-Matic CIM1136FA/B55PS
Designed with a smooth internal plastic food zone, the Ice-O-Matic CIM1136FA/B55PS ice maker with bin doesn’t foster the growth of microbes, such as mold spores, bacteria, or mildew. This piece of equipment has a maximum production capacity of 932 pounds in 24 hours when optimal environmental conditions are met, and its bin can store 510 pounds of prepared ice. The bin is made of aluminum to resist corrosion.
The Ice-O-Matic CIM1136FA/B55PS modular cube ice maker with bin produces full-cube ice, a form that’s optimal for cooling beverages because of how slowly it melts. Because of their shape and size, the cubes’ melting speed is slower than that of half-cube or nugget ice, though they’re not ideal for blended frozen beverages, such as margaritas and smoothies. The inside of the bin is lined with polyethylene to keep the ice fresh.
Ice Machine Details
- Part of the Elevation Series
- 932-lb. maximum daily ice production
- 762-lb. AHRI-certified daily ice production
- Full-size ice cubes
- Cube dimensions: 7/8 in. x 7/8 in. x 7/8 in.
- Air cooled
- Self-contained condenser simplifies installation
- Environmentally friendly design incorporates recyclable components
- Plastic food zone facilitates cleaning
- Cross contamination prevented by PURE ICE antimicrobial treatment
- Smart LED light signals when maintenance is required
- Descaling and sanitizing activated with 1 touch
- Removable internal pieces are BPA-free and dishmachine safe
- Dual-exhaust system
- Universal Smart Harness delivers digital diagnostics
- LED display is simple to read
- Ideal ambient temperature: 50-70 degrees F
- Ideal water pressure: 20-80 PSIG
- 18,200-BTU heat transfer capacity
Product Features

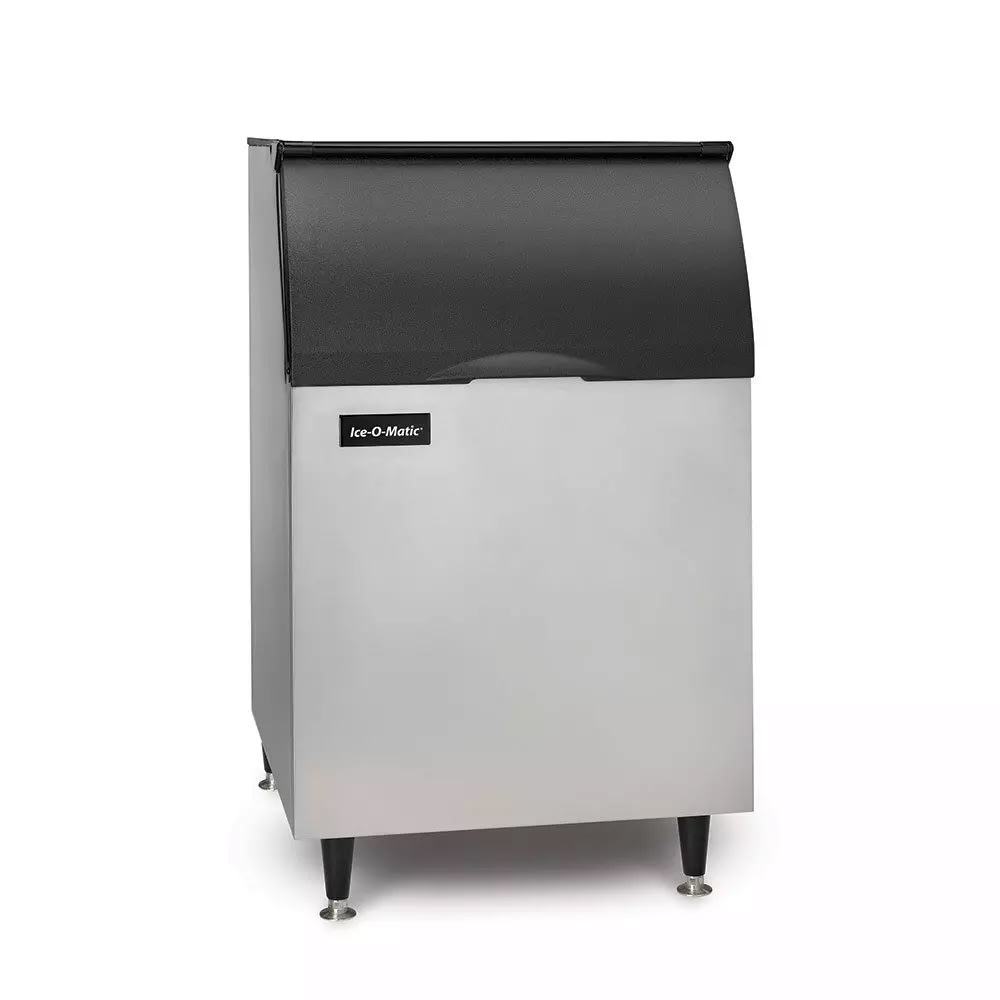

Ice Bin Details
- 510-lb. storage capacity
- Durable, 6-in. legs
- Strong aluminum exterior
- Foam-insulated polyethylene bin liner preserves ice
- Top-hinged sloped front access
Dimensions & Utilities
- Ice machine head: 30.25 in. W x 24.25 in. D x 26.90 in. H
- Ice bin: 30 in. W x 31 in. D x 50 in. H
- 12.2 A, 5.1 kW
- 208-230 V/60 Hz/1 ph
Elevation Series Modular Cube Ice Maker w/ Bin, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30″ W, approximately 932 lb production/24 hours at 70°/50° (762 lb at 90°/70°), full-size cubes, PURE ICE built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 208-230v/60/1-ph, 12.2 amps, cULus, NSF, CE; Ice Bin: 510 lb storage capacity, 30″W x 31″D x 50″H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable stainless finish exterior, 6″ legs, NSF
