Description

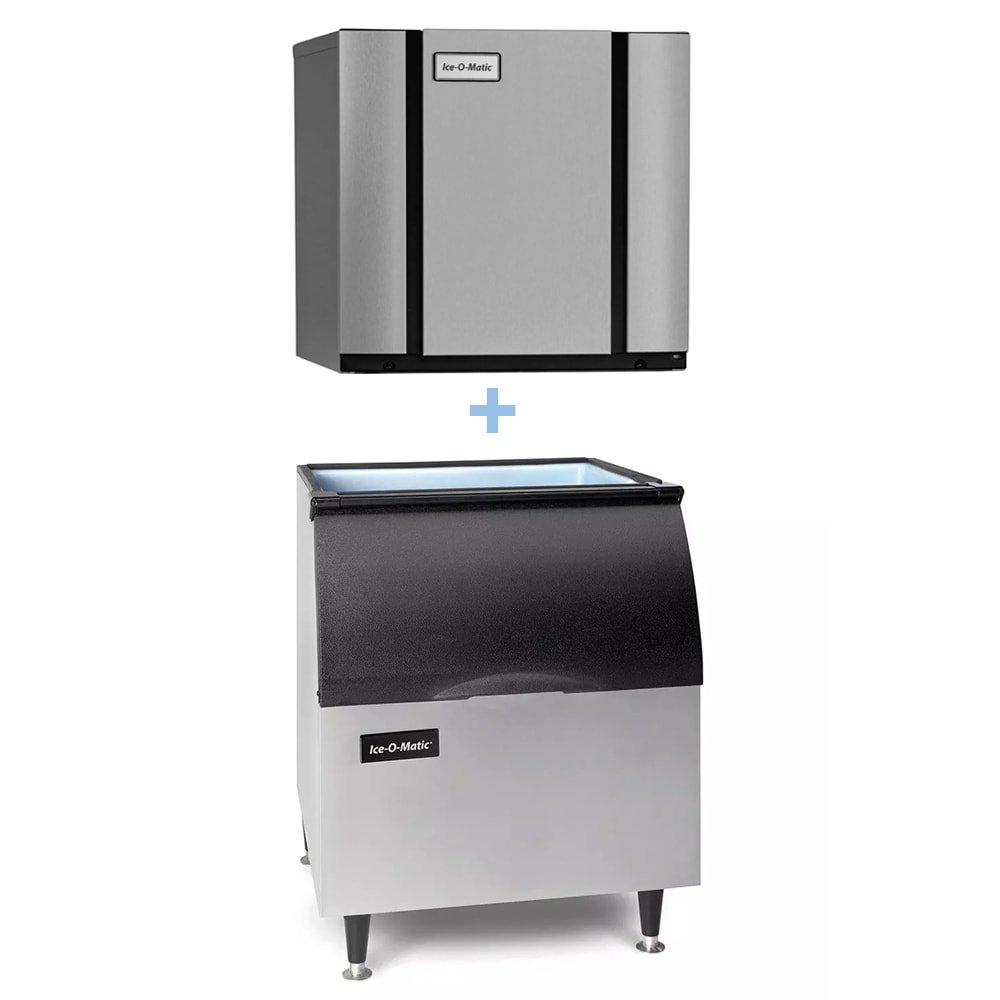

Ice-O-Matic CIM1136FA/B40PS
The Ice-O-Matic CIM1136FA/B40PS ice maker with bin is designed with a modular, compact construction that’s only 30.25 inches wide, making it optimal for commercial kitchens with limited space. Able to hold as much as 344 pounds of ice at one time, the bin has a durable aluminum exterior that resists dents and dings. Inside, this piece of equipment is lined with insulating foam polyethylene to prevent ice from melting.
Operators can access the interior of the Ice-O-Matic CIM1136FA/B40PS modular cube ice maker with bin through its sloped, top-hinged door. Delivering digital diagnostic capabilities, this equipment’s universal control board enables the calibration of multiple units. To signal when cleaning is needed, the machine is equipped with a smart LED light. Its LED display enables employees to monitor settings at a glance.
Ice Machine Details
- Part of the Elevation Series
- 932-lb. maximum daily ice production
- 762-lb. AHRI-certified daily ice production
- Full-size ice cubes
- Cube dimensions: 7/8 in. x 7/8 in. x 7/8 in.
- Air cooled
- Condenser is self-contained for space preservation
- Recyclable components
- Plastic food zone doesn’t harbor bacteria
- PURE ICE antimicrobial treatment prevents cross contamination
- Smart LED light signals when cleaning is needed
- 1-touch sanitizing and descaling controls
- Removable, BPA-free components are dishwasher safe
- Dual-system exhausts air from top and side
- Universal Smart Harness provides digital diagnostics
- LED display improves visibility
- Ideal ambient temperature: 50-70 degrees F
- Ideal water pressure: 20-80 PSIG
- 18,200-BTU heat transfer capacity
Product Features

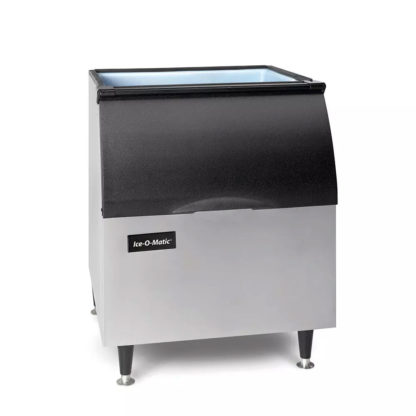

Ice Bin Details
- 344-lb. storage capacity
- 6-in. legs can be adjusted
- Aluminum exterior
- Interior lined with foam-insulated polyethylene
- Sloped, top-hinged front access
Dimensions & Utilities
- Ice machine head: 30.25 in. W x 24.25 in. D x 26.90 in. H
- Ice bin: 30 in. W x 31 in. D x 371/2 in. H
- 12.2 A, 5.1 kW
- 208-230 V/60 Hz/1 ph
Elevation Series Modular Cube Ice Maker w/ Bin, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30″ W, approximately 932 lb production/24 hours at 70°/50° (762 lb at 90°/70°), full-size cubes, PURE ICE built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 208-230v/60/1-ph, 12.2 amps, cULus, NSF, CE; Ice Bin: 344 lb storage capacity, 30″W x 31″D x 37-1/2″H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable stainless finish exterior, 6″ legs, NSF
