Description

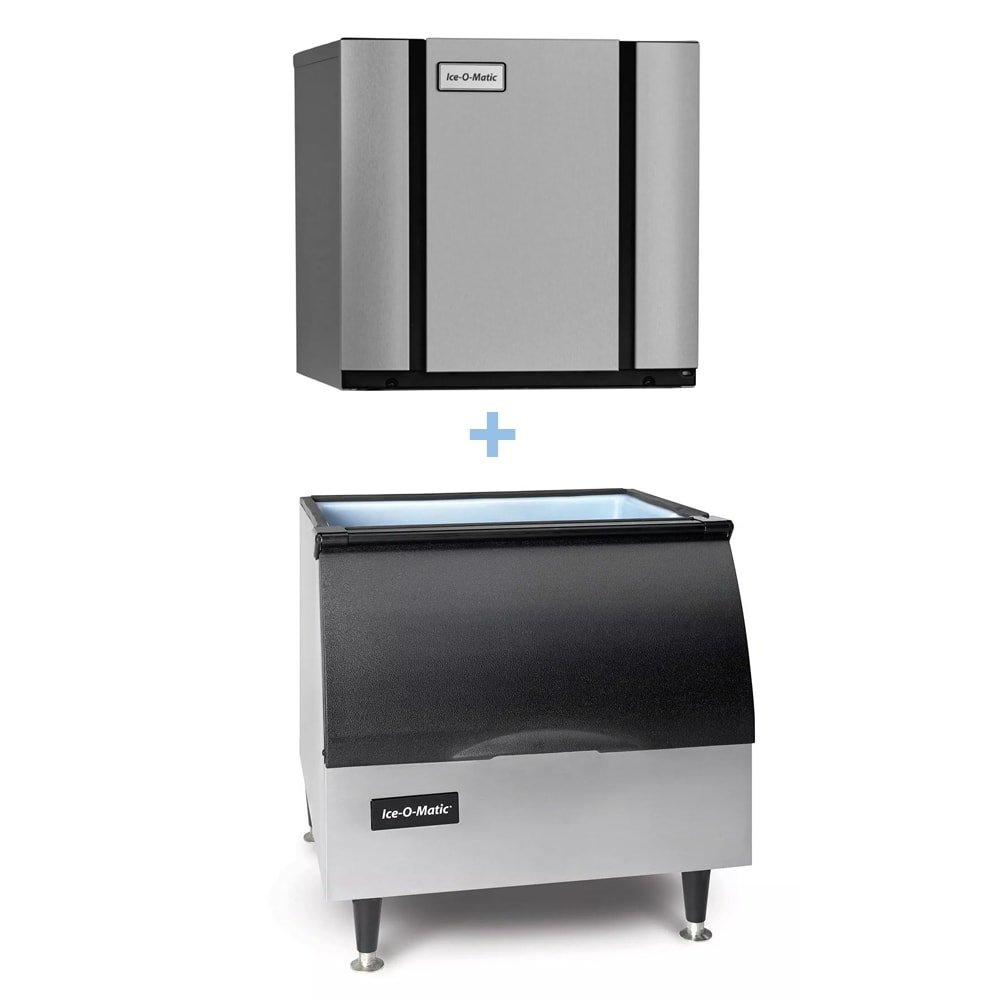

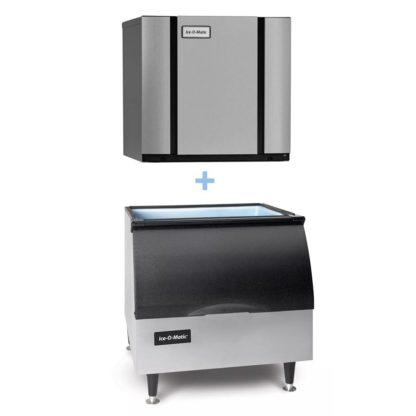

Ice-O-Matic CIM1136FA/B25PP
The Ice-O-Matic CIM1136FA/B25PP ice maker with bin is designed with an interior food zone constructed of smooth plastic that won’t harbor bacteria. To facilitate cleaning, employees can remove the internal components and clean them in a warewasher, and one-touch controls activate the machine’s sanitizing and descaling procedures. Resisting bacterial spread and inhibiting the formation of mildew and mold, an antimicrobial treatment is applied to the ice maker.
Producing 932 pounds of ice per 24 hours in ambient conditions, the Ice-O-Matic CIM1136FA/B25PP modular cube ice maker with bin produces full-size ice cubes. This form of ice is the largest after gourmet and measures 7/8 by 7/8 by 7/8 of an inch. Able to store 242 pounds of ice, the bin’s polyethylene liner is insulated with foam for optimized ice preservation.
Ice Machine Details
- Part of the Elevation Series
- 932-lb. maximum daily ice production
- 762-lb. AHRI-certified daily ice production
- Full-size ice cubes
- Cube dimensions: 7/8 in. x 7/8 in. x 7/8 in.
- Air cooled
- Self-contained condenser enables compact use
- Eco-conscious construction includes BPA-free plastic and recyclable parts
- Plastic food zone eliminates small spaces where bacteria can accrue
- Treated with PURE ICE antimicrobial protection
- Operators are alerted by smart LED light when cleaning is required
- 1-touch descaling and sanitizing feature
- BPA-free components can be removed and washed in warewashers
- Dual-exhaust system improves efficiency
- Universal Smart Harness simplifies configuration
- LED display
- Ideal ambient temperature: 50-70 degrees F
- Ideal water pressure: 20-80 PSIG
- 18,200-BTU heat transfer capacity
Product Features

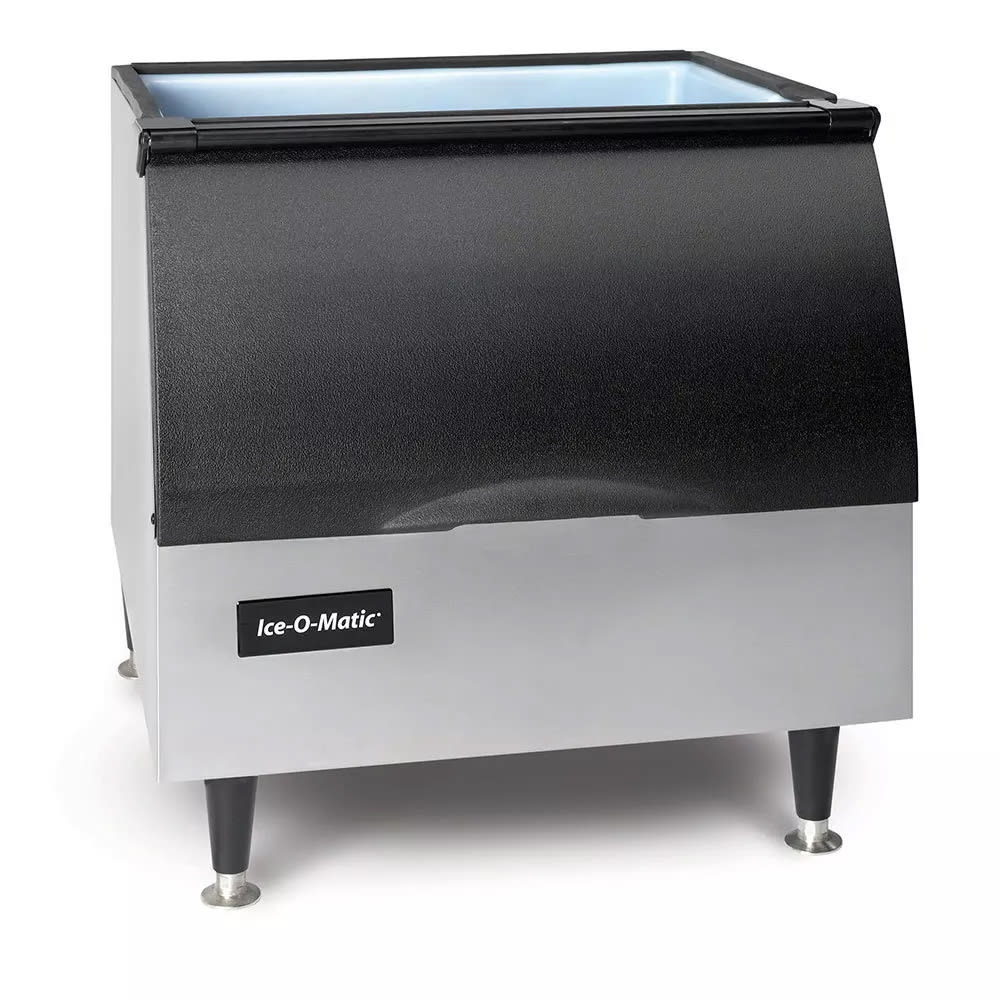

Ice Bin Details
- 242-lb. storage capacity
- 6-in. adjustable legs
- Strong aluminum finish
- Foam-insulated polyethylene bin liner preserves ice
- Sloped front
Dimensions & Utilities
- Ice machine head: 30.25 in. W x 24.25 in. D x 26.90 in. H
- Ice bin: 30 in. W x 31 in. D x 28 in. H
- 12.2 A, 5.1 kW
- 208-230 V/60 Hz/1 ph
Elevation Series Modular Cube Ice Maker w/ Bin, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30″ W, approximately 932 lb production/24 hours at 70°/50° (762 lb at 90°/70°), full-size cubes, PURE ICE built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 208-230v/60/1-ph, 12.2 amps, cULus, NSF, CE; Ice Bin: 242 lb storage capacity, 30″W x 31″D x 28″H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, rotocast exterior finish, 6″ legs, NSF
