Description

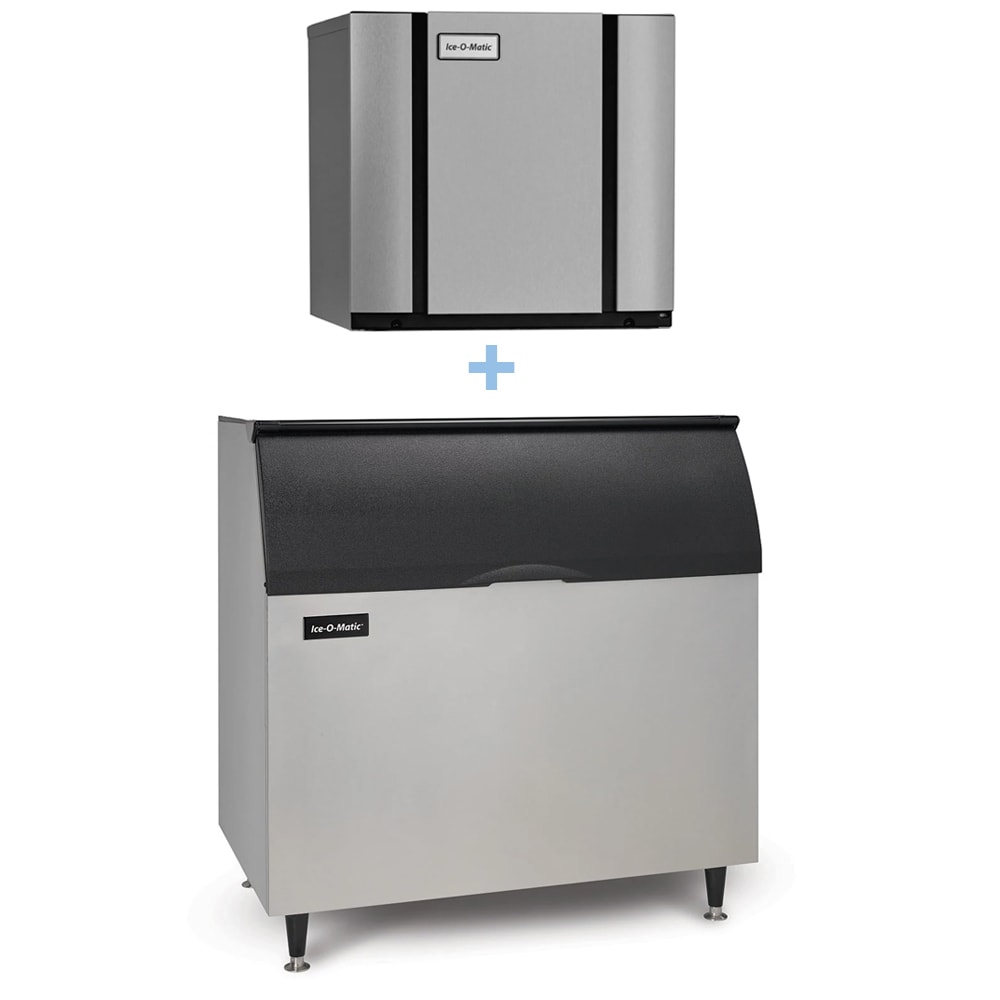

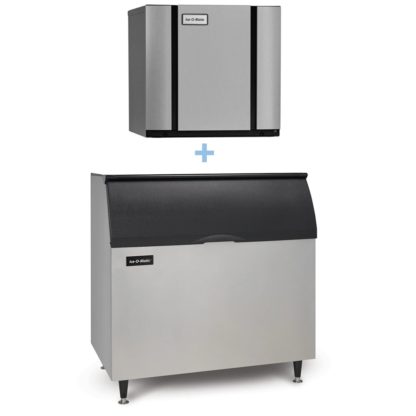

Ice-O-Matic CIM1136FA/B110PS
Optimal for keeping a consistent supply of fresh, clean ice, the Ice-O-Matic CIM1136FA/B110PS ice maker with bin produces full cubes. This form of ice measures 7/8 inch by 7/8 inch by 7/8 inch and is rhomboidal in shape. Because of full-cube ice’s large dimensions and slow melting process, it’s great for preserving the full flavor of cocktails.
The Ice-O-Matic CIM1136FA/B110PS modular cube ice maker with bin is constructed to serve entire dining rooms, fill satellite bins, stock fresh-food displays, and more. This piece of equipment is air-cooled with a self-contained condenser¬, the economical alternative to remote or water-cooled units. To cool the machine, fans push fresh air across the condenser. The unit requires no additional wiring because the entire condenser is within the machine itself.
Ice Machine Details
- Part of the Elevation Series
- 932-lb. maximum daily ice production
- 762-lb. AHRI-certified daily ice production
- Makes full-cube ice
- Cube dimensions: 7/8 in. x 7/8 in. x 7/8 in.
- Environmentally friendly design incorporates recyclable parts and BPA-free plastic
- Plastic food zone eliminates nooks and crannies to facilitate cleaning
- PURE ICE antimicrobial protection inhibits bacterial formation
- Smart LED light alerts operators when cleaning is required
- 1-touch controls streamline sanitization and descaling
- Snap-out components are safe for dishwasher use
- Dual-exhaust system discharges air from top and side
- Universal Smart Harness simplifies servicing and installation
- Digital diagnostics provide status of machine
- Self-contained condenser
- Air cooled
- Common configuration and universal components
- 18,200-BTU heat transfer capacity
Product Features

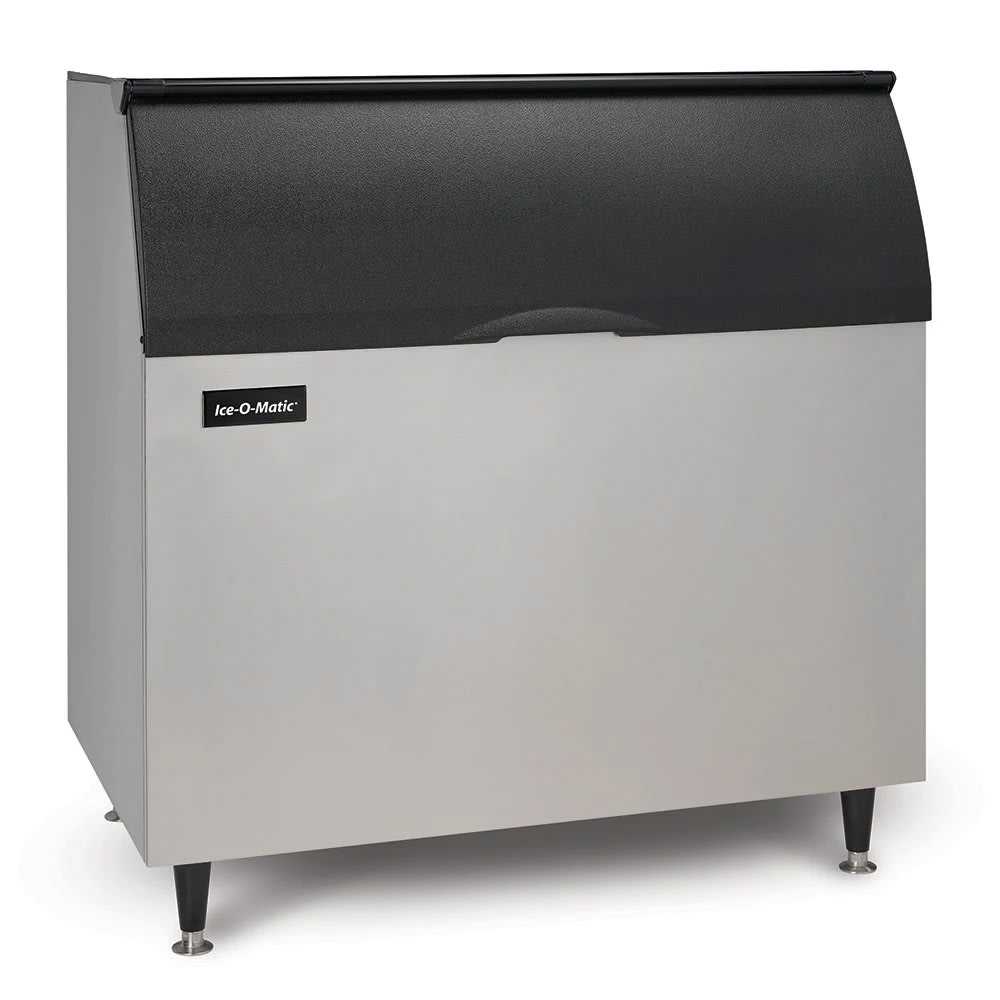

Ice Bin Details
- 854-lb. storage capacity
- Strong aluminum finish
- Foam-insulated polyethylene bin liner maximizes ice preservation
- Stay-open door optimizes ice access
- 6-in. durable legs can be adjusted
Dimensions & Utilities
- Ice machine head: 30.25 in. W x 24.25 in. D x 26.90 in. H
- Ice bin: 50 in. W x 31 in. D x 50 in. H
- 12.2 A, 5.1 kW
- 208-230 V/60 Hz/1 ph
Elevation Series Modular Cube Ice Maker w/ Bin, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30″ W, approximately 932 lb production/24 hours at 70°/50° (762 lb at 90°/70°), full-size cubes, PURE ICE built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 208-230v/60/1-ph, 12.2 amps, cULus, NSF, CE; Ice Bin w/ Filler Panels: 854 lb storage capacity, 48″W x 31″D x 50″H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable stainless finish exterior, 6″ legs, NSF
