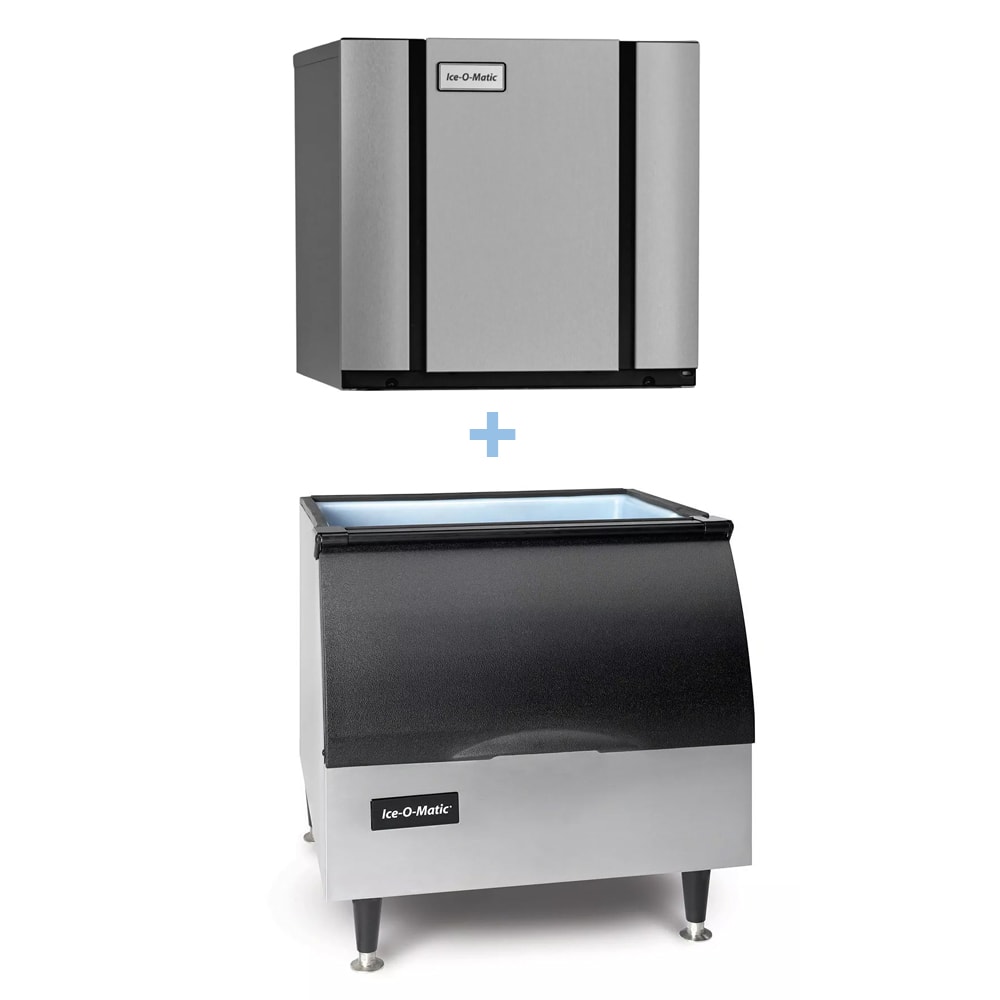

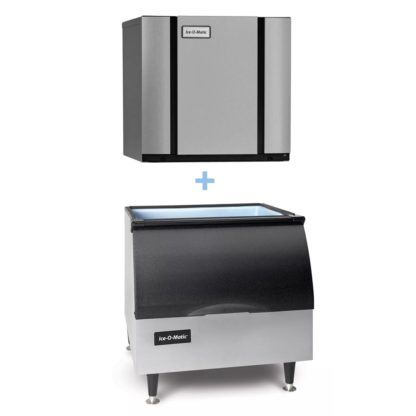

Ice-O-Matic CIM0836HA/B25PP
The Ice-O-Matic CIM0836HA/B25PP ice maker with bin has snap-out food zone components that can be placed in the dishwasher to facilitate cleaning. By pushing a button, users can start the sanitizing and descaling process, and to reduce the spread of germs in a busy environment, the unit is protected with PURE ICE antimicrobial. Providing status updates for monitoring purposes, it has an LED screen, and to streamline installation, the air-cooled condenser is self-contained.
When conditions are ideal, the Ice-O-Matic CIM0836HA/B25PP half-cube ice machine produces as much as 896 pounds of ice daily, but when ambient temperatures are too high, it makes closer to 711 pounds per day. It makes half-size cubes of ice, which are ideal for use in frozen beverages and soft drinks. To access the ice in the bin, it has a sloped front door, and the bin has a capacity of 242 pounds. Insulated with foam, ice doesn’t melt quickly while it’s stored.
Ice Maker Details
- Part of the Elevation Series
- 896-lb. daily ice production
- 711-lb. AHRI-certified daily ice production
- Makes half-size cubes of ice
- Half-size cube dimensions: 3/8 in. x 7/8 in. x 7/8 in.
- PURE ICE antimicrobial slows bacterial growth
- LED display provides status updates
- Air-cooled, self-contained condenser with a dual exhaust
- Push-button sanitizing and descaling controls
- Streamlined cleaning with plastic food zone
- Snap-out, dishwasher-safe food zone components
- Ideal incoming water pressure: 20-80 PSIG
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient air temperature: 50-100 degrees F
- 15,100-BTU heat transfer capacity
Product Features

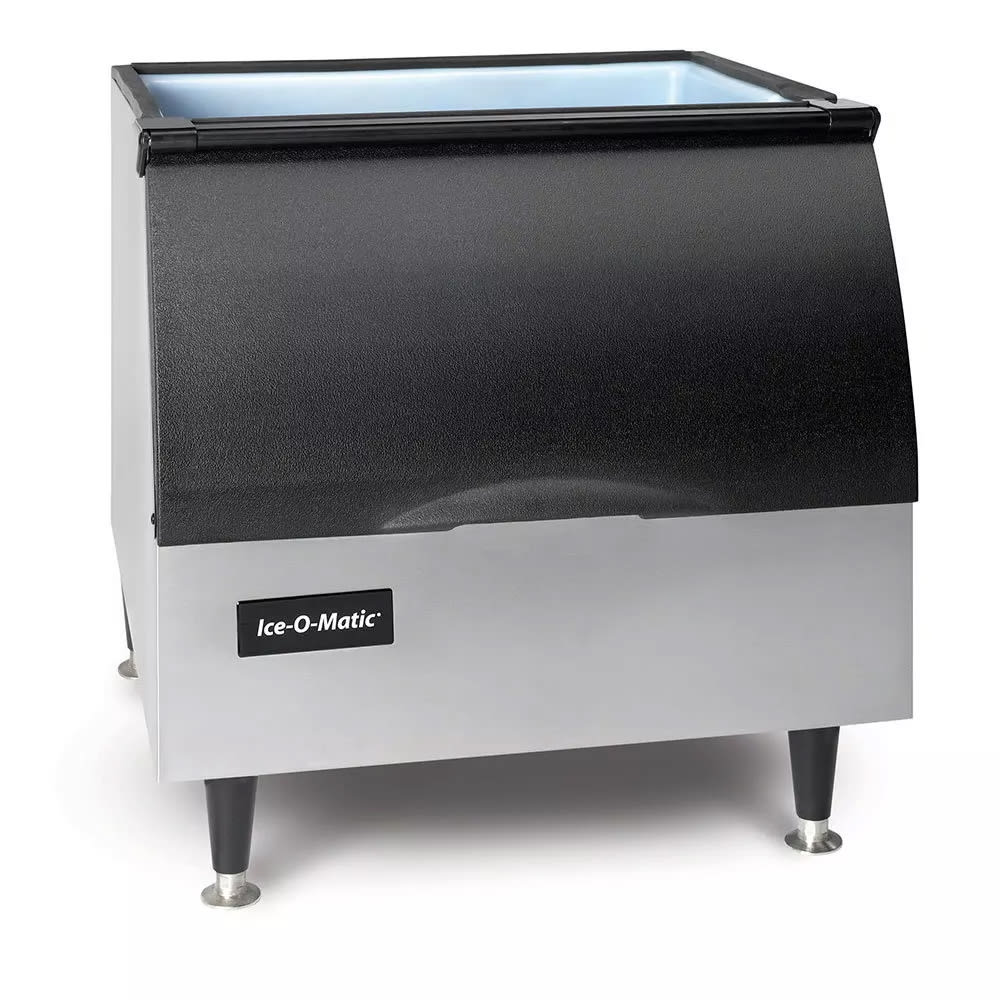

Ice Bin Details
- 242-lb. application capacity
- Sloped, top-hinged front door
- Polyethylene interior with foam insulation
- Rotocast exterior finish
- Strong 6-in. legs
Dimensions & Utilities
- Ice maker: 30.25 in. W x 24.25 in. D x 26.9 in. H
- Ice bin: 30 in. W x 31 in. D x 28 in. H
- 11.8 A, 5 kW
- 208-230 V/60 Hz/1 ph
Elevation Series Modular Cube Ice Maker w/ Bin, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30″ W, approximately 896 lb production/24 hours at 70°/50° (711 lb at 90°/70°), half-size cubes, PURE ICE built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 208-230v/60/1-ph, 11.8 amps, cULus, NSF, CE; Ice Bin: 242 lb storage capacity, 30″W x 31″D x 28″H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, rotocast exterior finish, 6″ legs, NSF
