Ice-O-Matic CIM0836HA/B110PS 896 lb Half Cube Ice Maker w/ Bin – 854 lb Storage, Air Cooled, 208-230v/1ph

The Ice-O-Matic CIM0836HA/B110PS ice maker has a dual exhaust that discharges from the side and top, and it’s operated with a self-contained, air-cooled condenser. Producing half-size cubes of ice, this unit can make as much as 896 pounds daily, but when operating temperatures are higher, it makes closer to 711 pounds of ice per day. For later use, 854 pounds of ice can be stored in the bin, which is lined with polyethylene to provide resistance against corrosion. Offering dependable storage, the bin is insulated so ice doesn’t melt quickly.

Slowing the growth of bacteria, the Ice-O-Matic CIM0836HA/B110PS half-cube ice maker is protected with PURE ICE antimicrobial. When users push the button, the unit will perform sanitizing and descaling, and the food zone is made of plastic without crevices that bacteria can get stuck in. To clean the food zone’s components, users can snap them out, and they can be placed in the dishwasher. An LED status display provides a readout of how the unit is operating to enable monitoring.

Ice Maker Details

• Part of the Elevation Series
• 896-lb. daily ice production
• 711-lb. AHRI-certified daily ice production
• Makes half-size cubes of ice
• Half-size cube dimensions: ³/₈ in. x ⁷/₈ in. x ⁷/₈ in.
• 1-touch descaling and sanitizing
• Food zone is made of plastic to facilitate cleaning
• Removable, dishwasher-safe food zone components
• PURE ICE antimicrobial ensures microbes grow slowly
• LED display shows operating status
• Self-contained, air-cooled condenser
• Dual exhaust from the top and side
• Ideal incoming water pressure: 20-80 PSIG
• Ideal incoming water temperature: 40-100 degrees F
• Ideal ambient air temperature: 50-100 degrees F
• 15,100-BTU heat transfer capacity

Product Features

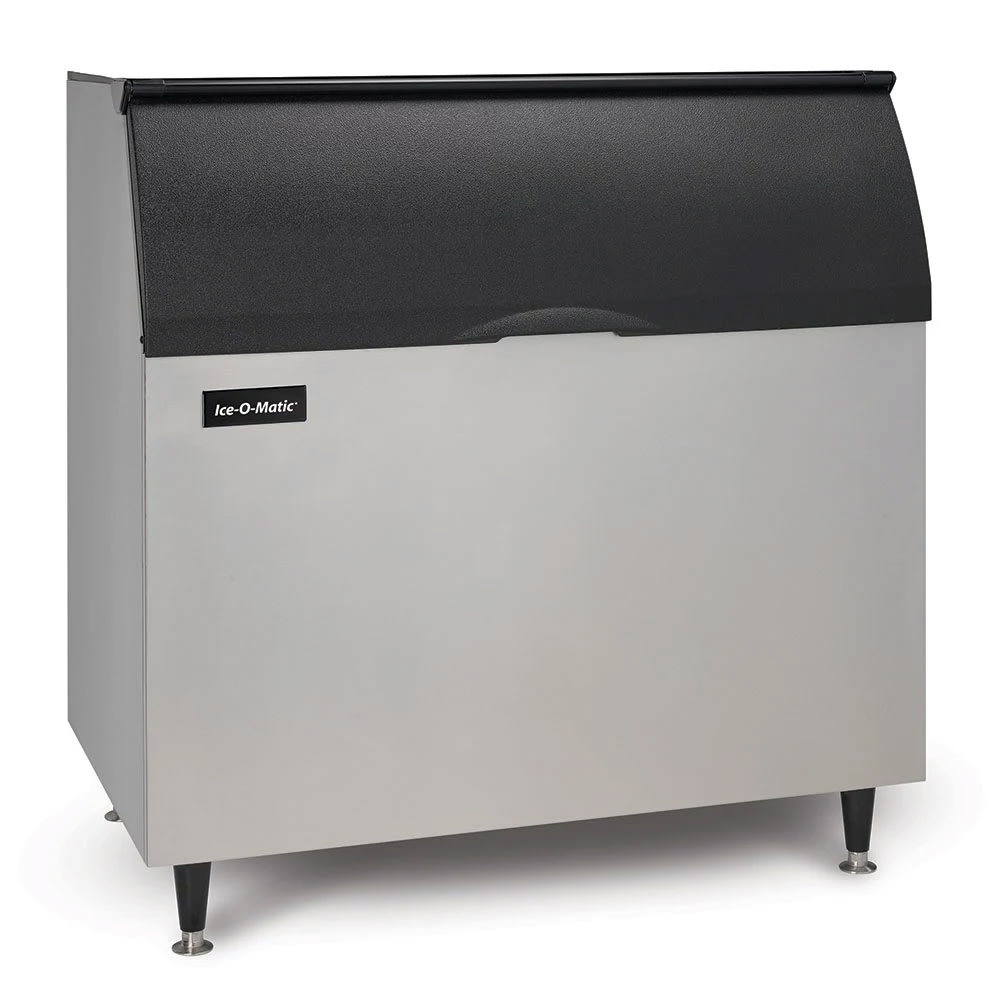

Ice Bin Details

• 854-lb. application capacity
• Sloped, top-hinged front door
• Corrosion-resistant polyethylene interior
• Exterior has a durable stainless finish
• Dependable storage with foam insulation
• Mounted on adjustable 6-in. legs

Dimensions & Utilities

• Ice maker: 30.25 in. W x 24.25 in. D x 26.9 in. H
• Ice bin: 48 in. W x 31 in. D x 50 in. H
• 11.8 A, 5 kW
• 208-230 V/60 Hz/1 ph

Elevation Series Modular Cube Ice Maker w/ Bin, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30″ W, approximately 896 lb production/24 hours at 70°/50° (711 lb at 90°/70°), half-size cubes, PURE ICE built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 208-230v/60/1-ph, 11.8 amps, cULus, NSF, CE; Ice Bin w/ Filler Panels: 854 lb storage capacity, 48″W x 31″D x 50″H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable stainless finish exterior, 6″ legs, NSF
