Description

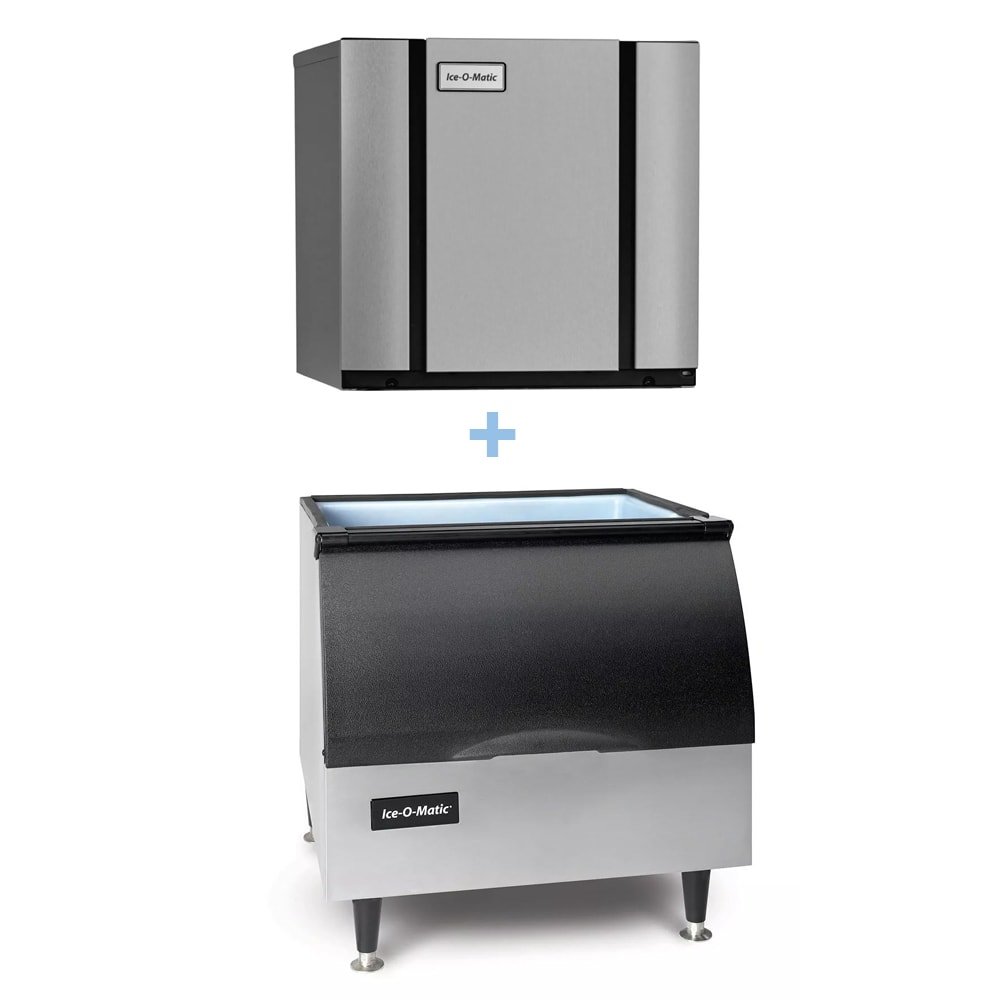

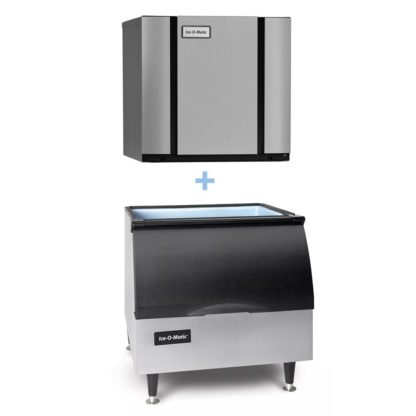

Ice-O-Matic CIM0836FA/B25PP
The Ice-O-Matic CIM0836FA/B25PP ice maker/bin combo produces full-size cubes at a maximum rate of 896 pounds per day in ideal environmental conditions. Its plastic food zone won’t harbor bacteria, and its components can be removed and cleaned in the dishwasher. To keep users alerted to operational updates, it features a clear LED display. This unit cools with R404A refrigerant and a self-contained condenser to streamline installation.
Insulated with foam, the Ice-O-Matic CIM0836FA/B25PP ice machine’s bin can hold ice for extended periods without melting. It’s mounted on sturdy 6-inch legs and can accommodate a maximum of 242 pounds of ice. Sanitary and long lasting, it features a polyethylene interior liner and a durable rotocast exterior.
Ice Maker Details
- Part of the Elevation Series
- 896-lb. maximum daily ice production
- 711-lb. AHRI daily ice production
- Makes full-size cubes
- Cube size: 7/8 in. x 7/8 in. x 7/8 in.
- Plastic food zone with warewasher-safe components
- 1-touch descaling and sanitizing streamlines cleaning and optimizes performance
- LED display indicates status updates
- Protected with PURE ICE antimicrobial agent
- Air cooled
- Air is released from top and side with dual exhaust system
- Self-contained condenser
- Uses R404A refrigerant
- Ideal incoming water pressure: 20-80 PSIG
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient temperature range: 50-100 degrees F
- 15,100-BTU heat transfer capacity
Product Features

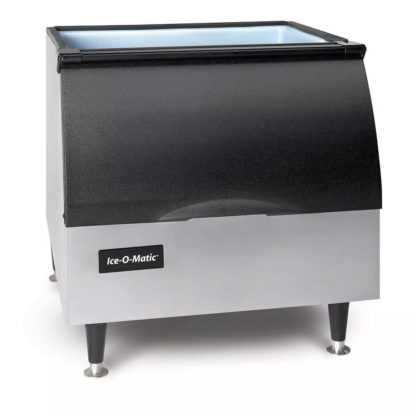

Ice Bin Details
- 242-lb. application capacity
- Foam insulation slows ice melting
- Top-hinged, sloped front door
- Sturdy rotocast exterior
- Supported with 6-in. legs
- Interior lined with sanitary polyethylene
Dimensions & Utilities
- Ice maker: 30.25 in. W x 24.25 in. D x 26.90 in. H
- Ice bin: 30 in. W x 31 in. D x 28 in. H
- 11.8, 5 kW
- 208-230 V/60 Hz/1 ph
Elevation Series Modular Cube Ice Maker w/ Bin, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30″ W, approximately 896 lb production/24 hours at 70°/50° (711 lb at 90°/70°), full-size cubes, PURE ICE built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 208-230v/60/1-ph, 11.8 amps, cULus, NSF, CE; Ice Bin: 242 lb storage capacity, 30″W x 31″D x 28″H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, rotocast exterior finish, 6″ legs, NSF
