Description

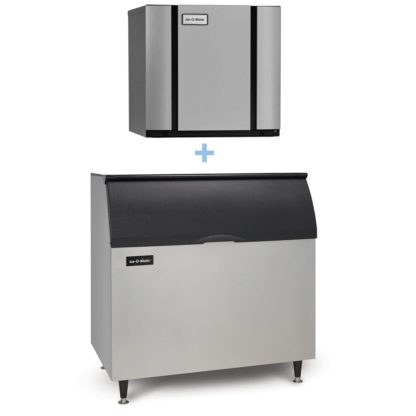

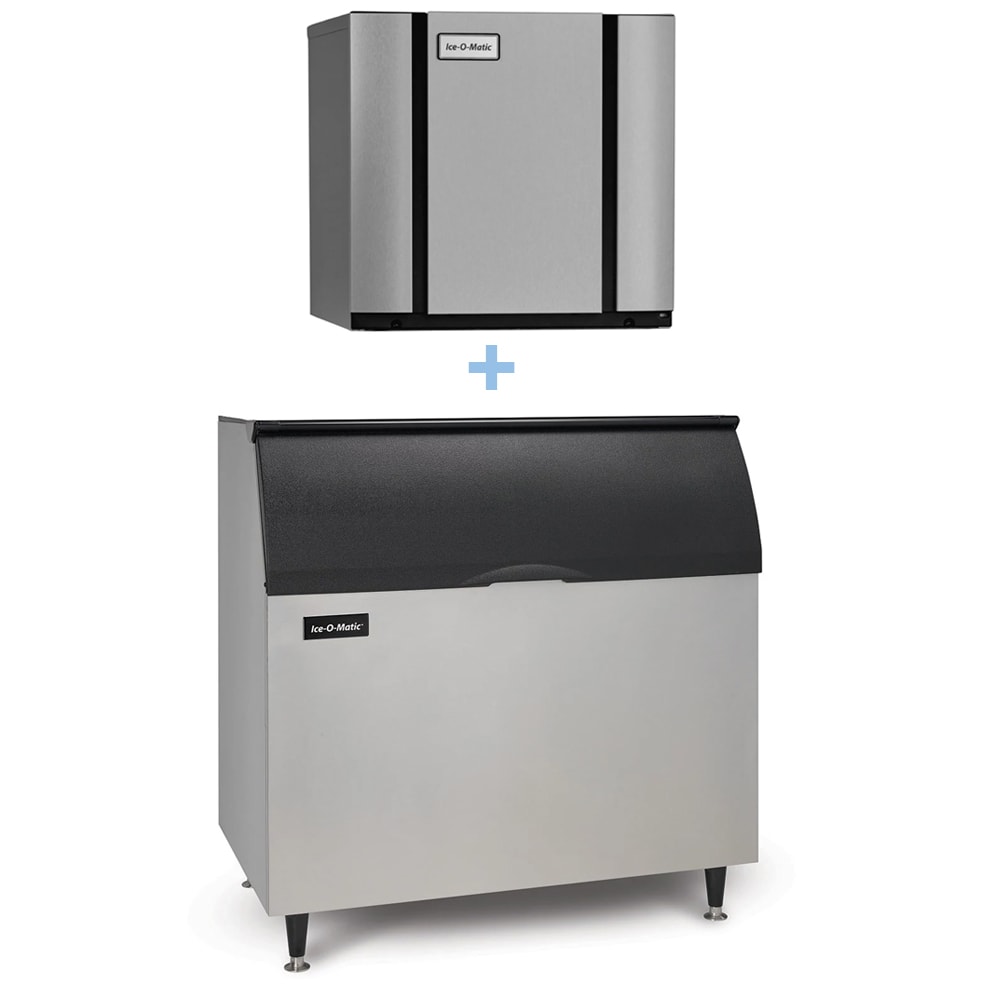

Ice-O-Matic CIM0836FA/B110PS
To streamline cleaning, the Ice-O-Matic CIM0836FA/B110PS ice maker with bin features a plastic food zone with components that can be safely washed in a dishmachine. Depending on various environmental conditions, it can produce a maximum of 896 pounds of ice in a 24-hour period. Treated with PURE ICE antimicrobial, it optimizes sanitation by inhibiting the growth of mildew and bacteria. This unit is air cooled and features a self-contained condenser for simplified installation.
Made of aluminum, the exterior of the Ice-O-Matic CIM0836FA/B110PS ice machine’s accompanying bin is long lasting and corrosion resistant. Its interior is lined with easy-to-clean polyethylene and insulated with foam to prevent ice from melting prematurely. Suitable for high-volume environments, it can hold as much as 854 pounds of ice.
Ice Maker Details
- Part of the Elevation Series
- 896-lb. maximum daily ice production
- 711-lb. AHRI daily ice production
- Makes full-size cubes
- Cube size: 7/8 in. x 7/8 in. x 7/8 in.
- 1-touch sanitizing and descaling facilitates streamlined, thorough cleaning
- LED display indicates status updates
- PURE ICE antimicrobial agent defends against germ growth
- Plastic food zone with warewasher-safe components
- Air cooled
- Air is released from top and side with dual-exhaust system
- Self-contained condenser
- Cools with R404A refrigerant
- Ideal incoming water pressure: 20-80 PSIG
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient temperature range: 50-100 degrees F
- 15,100-BTU heat transfer capacity
Product Features

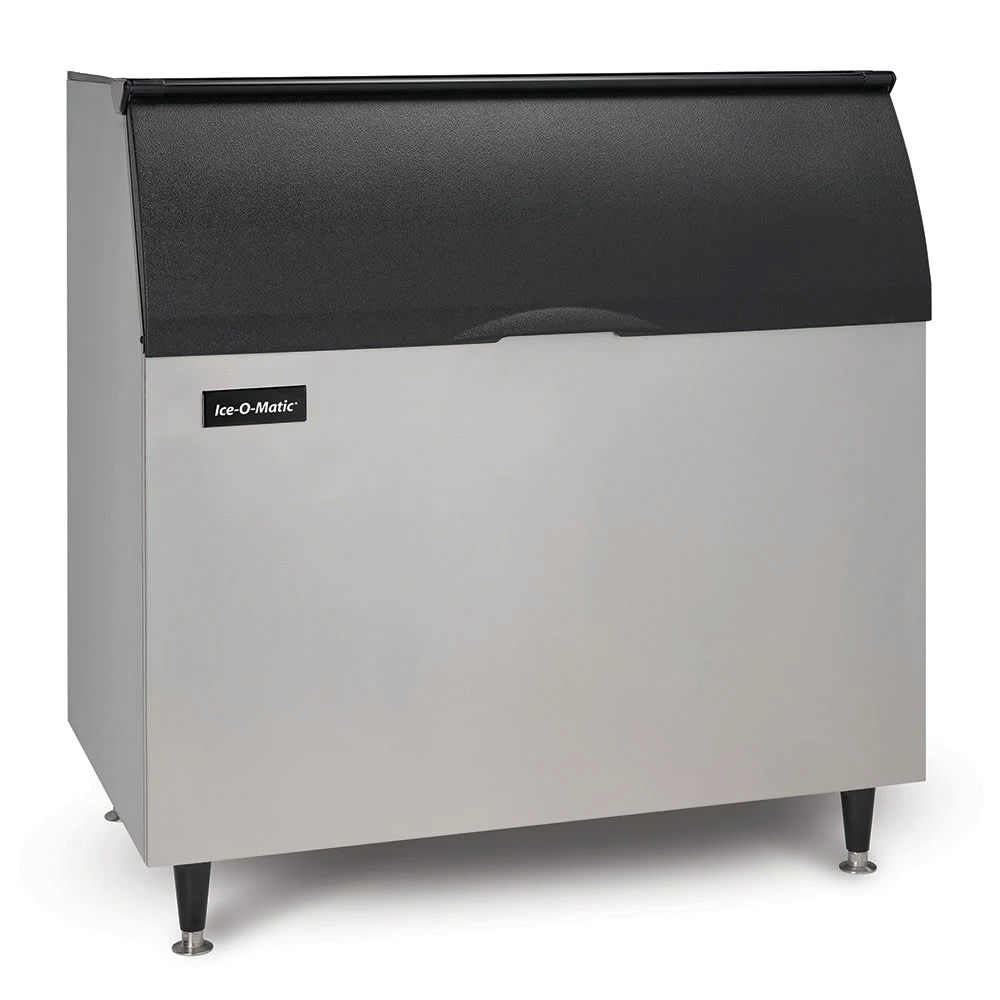

Ice Bin Details
- 854-lb. application capacity
- Foam insulation preserves ice
- Top-hinged, sloped front door
- Exterior made of corrosion-resistant aluminum
- Supported with 6-in. legs
- Interior lined with sanitary polyethylene
Dimensions & Utilities
- Ice maker: 30.25 in. W x 24.25 in. D x 26.90 in. H
- Ice bin: 48 in. W x 31 in. D x 50 in. H
- 11.8, 5 kW
- 208-230 V/60 Hz/1 ph
Elevation Series Modular Cube Ice Maker w/ Bin, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30″ W, approximately 896 lb production/24 hours at 70°/50° (711 lb at 90°/70°), full-size cubes, PURE ICE built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 208-230v/60/1-ph, 11.8 amps, cULus, NSF, CE; Ice Bin w/ Filler Panels: 854 lb storage capacity, 48″W x 31″D x 50″H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable stainless finish exterior, 6″ legs, NSF
