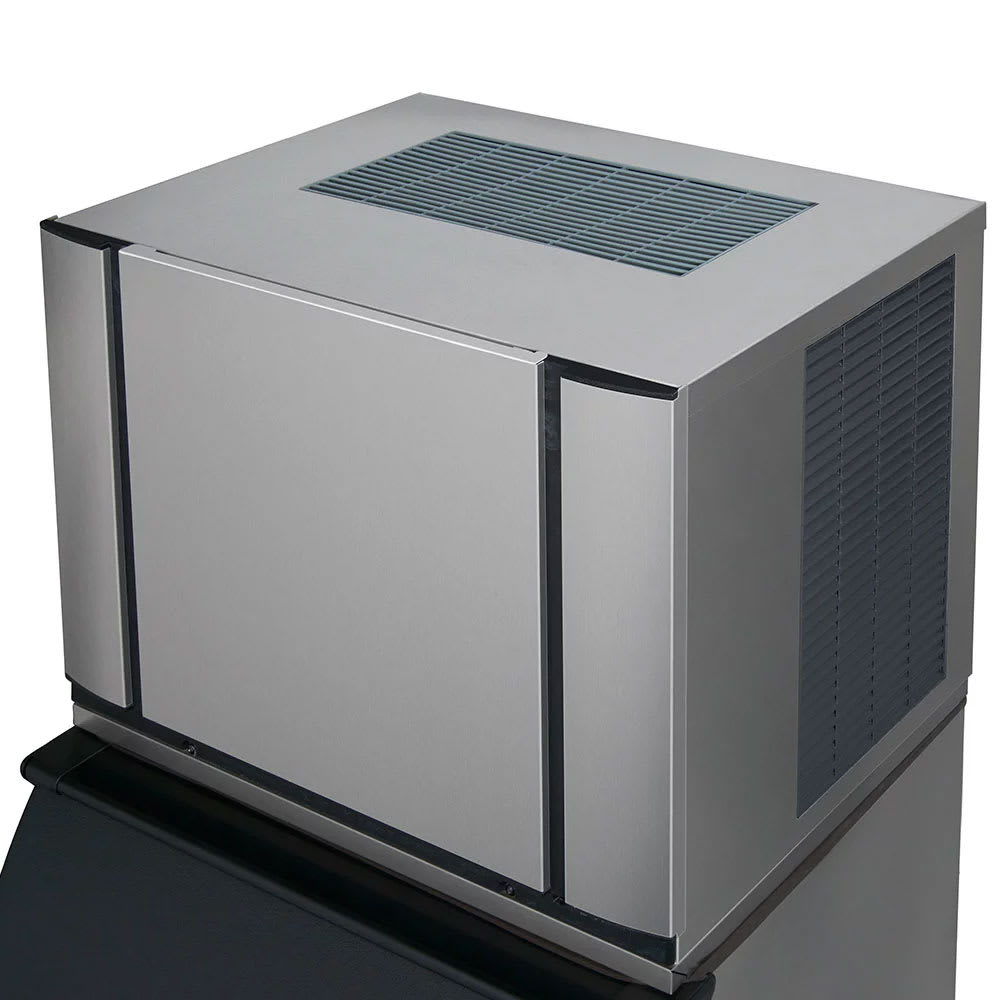

Ice-O-Matic CIM0836FA 30″ Elevation Series Full Cube Ice Machine Head – 896 lb/24 hr, Air Cooled, 208/230v/1ph

The Ice-O-Matic CIM0836FA Elevation Series ice machine head produces full-cube ice, which is perfect for cocktails, beverages, and bagged applications. Its large surface area prevents ice from melting quickly, but it does not cool beverages as fast as half-cube ice. This unit can produce 645 to 800 pounds of ice in 24 hours, depending on the conditions.

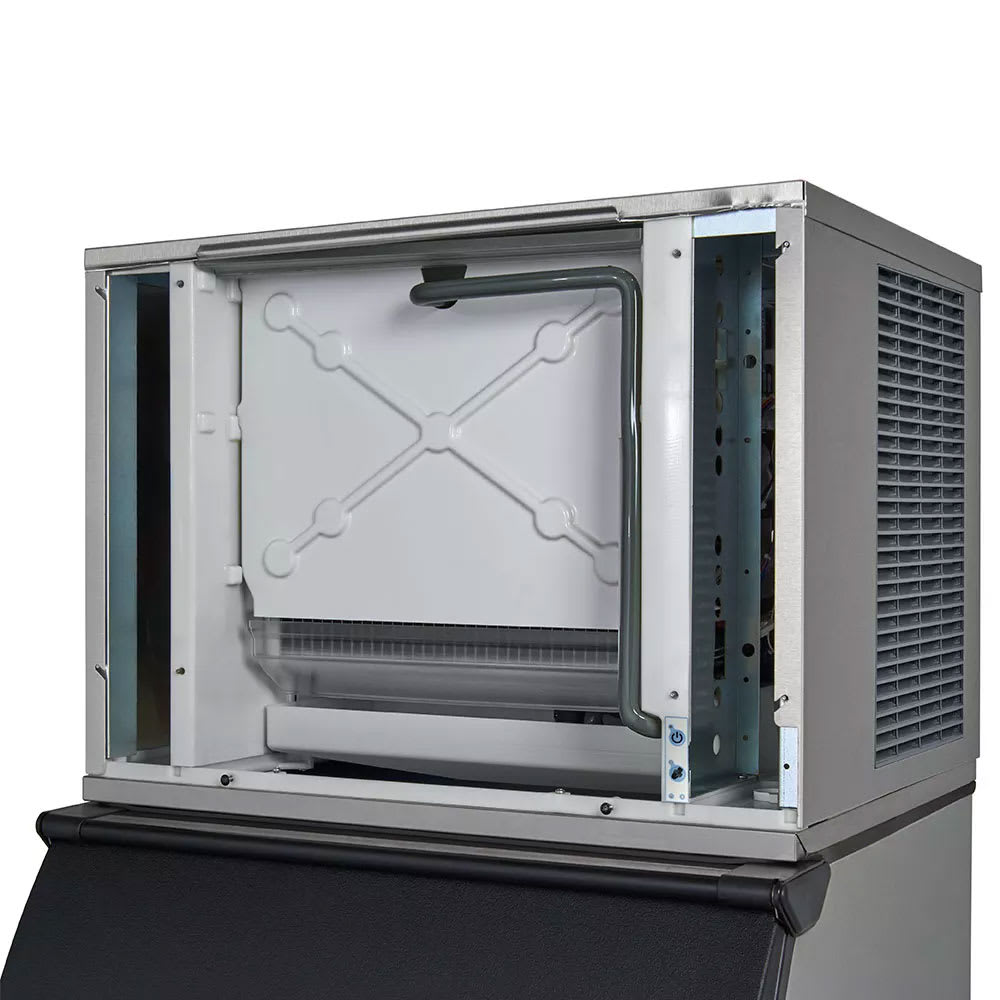

The plastic food zone does not have corners, eliminating areas where bacteria could be harbored, and its removable major components are built with an antimicrobial agent to slow bacteria growth between cleanings. For sanitizing and descaling, the unit has one-touch controls on a digital control board with various diagnostics. The Ice-O-Matic CIM0836FA ice maker takes in and discharges air at the top and side.

Product Details

• 896-lb. ice production capacity
• 711-lb. AHRI-certified ice production capacity
• Uses BPA-free plastic
• Bacteria is reduced in the plastic food zone since it is built without crevices
• Agion antimicrobial agent is built into major components to slow bacteria growth between cleanings

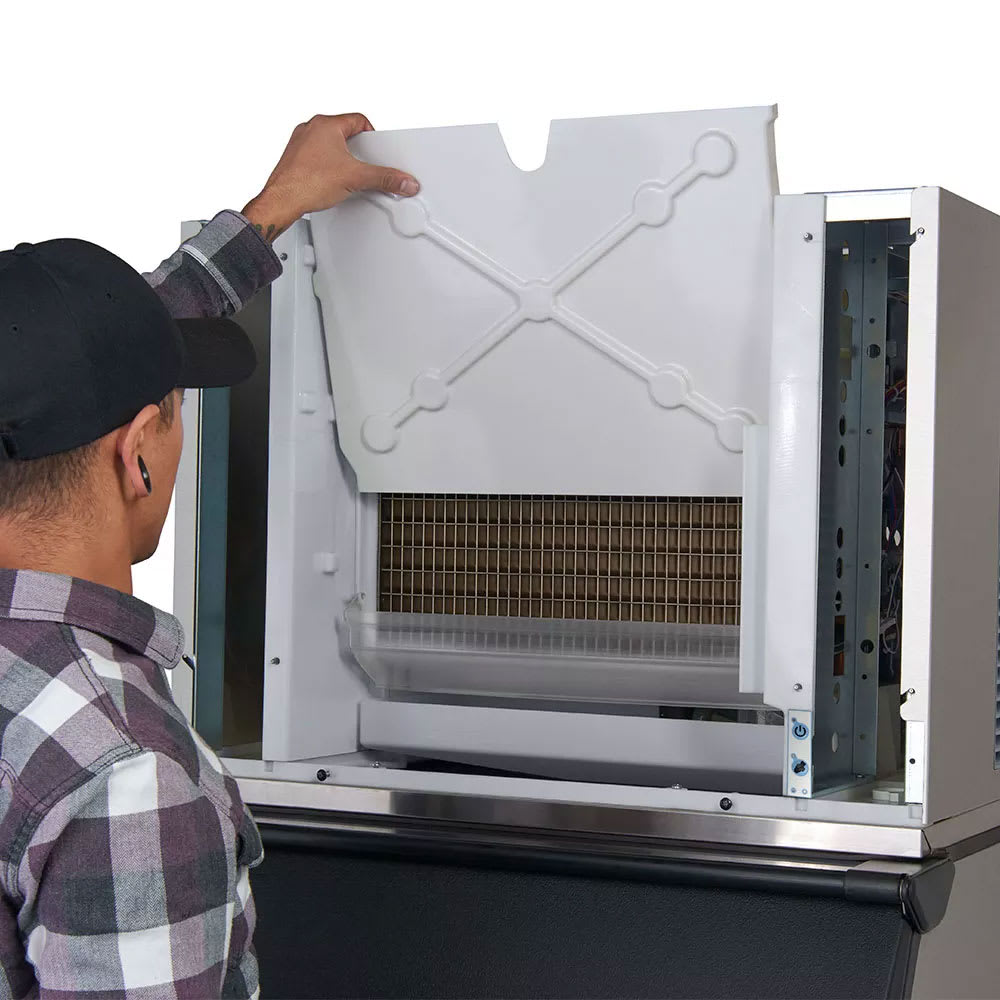

• Dishwasher-safe components are removable
• Smart Harness control board has digital diagnostics

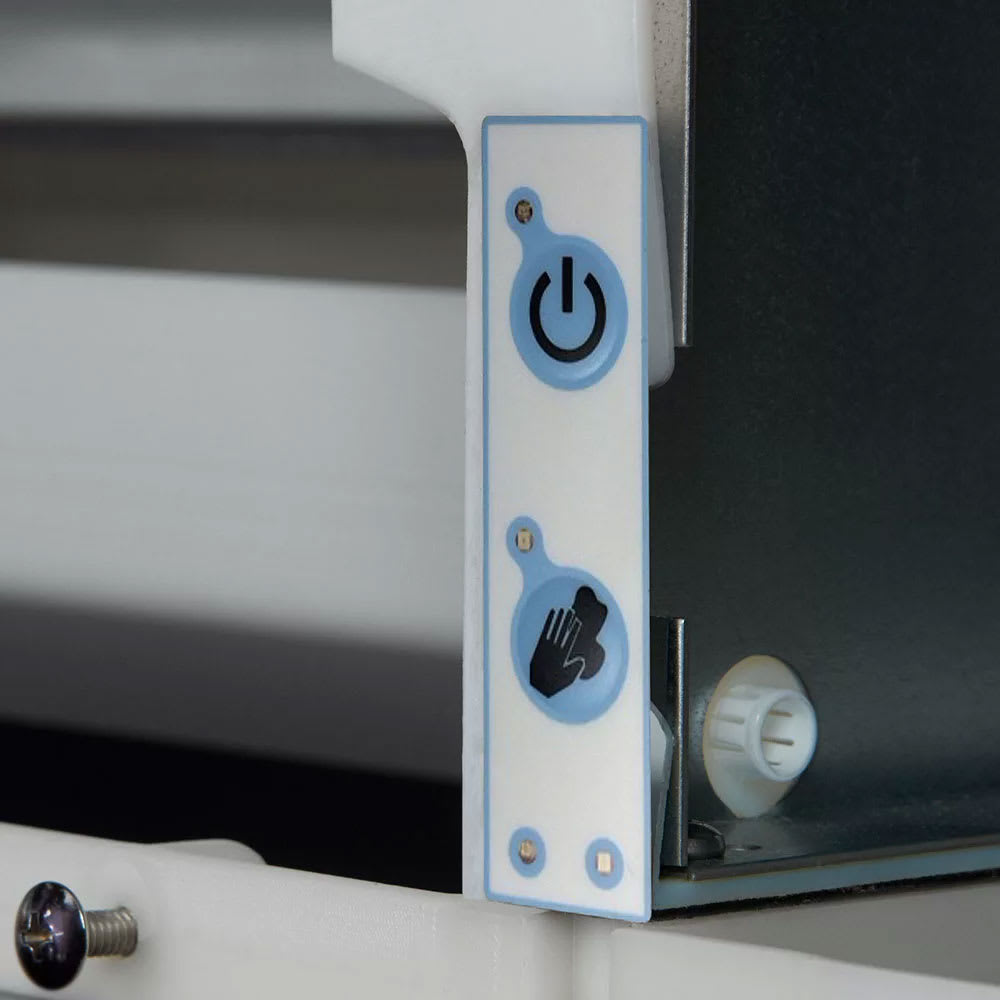

• 1-touch controls are used for sanitizing and descaling
• Side and top air intake and discharge
• 6-in. clearance is required for air intake and exhaust
• Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
• Can use with the Ice-O-Matic B55PS or B700-30 ice bins to save ice (bins sold separately
• Ambient air temperature range: 50-100 degrees F
• Incoming water temperature range: 40-100 degrees F
• Incoming water pressure range: 20-80 PSIG
• Part of the Elevation series

Dimensions & Utilities

• 30.25 in. W x 24.25 in. D x 26.9 in. H
• 5 kW, 11.8 A
• 208-230 V/60 Hz/1 ph

Elevation Series Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30″ W, approximately 896 lb production/24 hours at 70°/50° (711 lb at 90°/70°), full-size cubes, Agion built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 208-230v/60/1-ph, 11.8 amps, cULus, NSF, CE
