Description

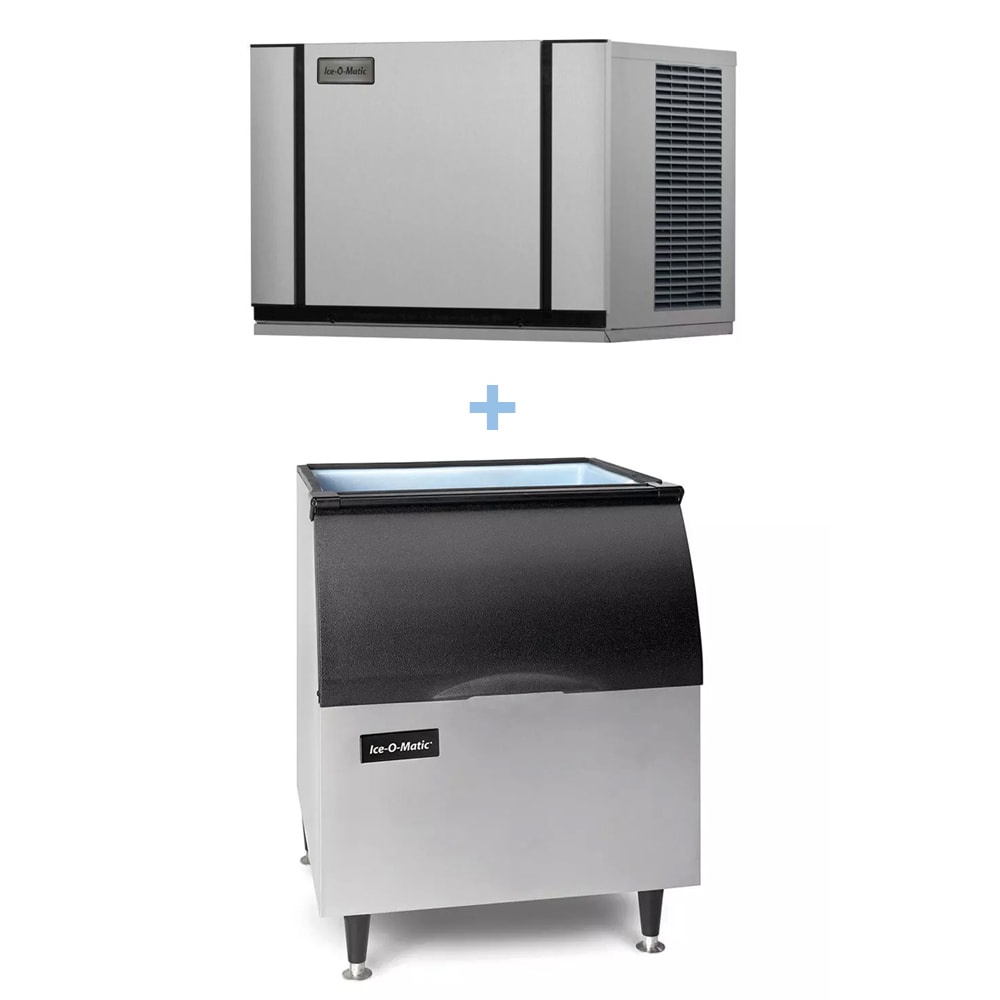

Ice-O-Matic CIM0636HA/B40PS Description
In ideal environmental conditions, the Ice-O-Matic CIM0636HA/B40PS can produce a maximum of 600 pounds of ice per day. Protected with PURE ICE antimicrobial, it inhibits the growth of harmful mildew, bacteria, and other microbes for optimal sanitation. To further ensure cleanliness, its plastic food zone is equipped with components that can be removed and cleaned in a dishwasher. The unit’s status is indicated with a clear LED display, and its dual-exhaust discharge enables placement in a variety of settings.
The exterior of the Ice-O-Matic CIM0636HA/B40PS ice machine’s included bin is made of aluminum durable metal that provides excellent resistance to corrosion. Its polyethylene liner won’t harbor bacteria and can be easily wiped clean as needed. It can house as much as 344 pounds of ice and is positioned on sturdy 6-inch legs.
Ice Maker Details
- Part of the Elevation Series
- 600-lb. maximum daily ice production
- 455-lb. AHRI daily ice production
- Makes half-size cubes
- Cube size: 3/8 in. x 7/8 in. x 7/8 in.
- Plastic food zone with dishwasher-safe components
- Operators can monitor unit status with LED display
- 1-touch descaling and sanitizing feature
- Dual-exhaust system discharges air from side and top for installation flexibility
- PURE ICE antimicrobial protects against growth of mold, mildew, and bacteria
- Air cooled
- Self-contained condenser
- Uses R404A refrigerant
- Ideal incoming water pressure: 20-80 PSIG
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient temperature range: 50-100 degrees F
- 8,600-BTU heat transfer capacity

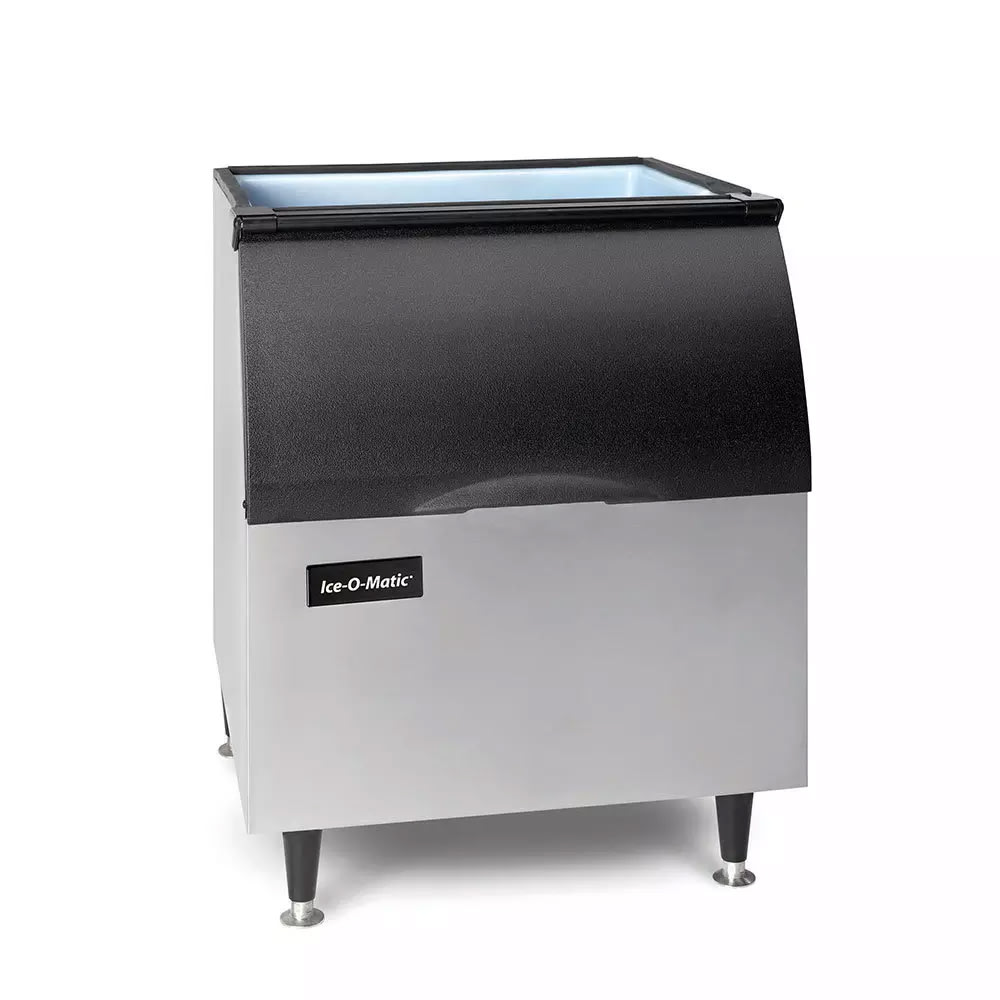

Ice Bin Details
- 344-lb. application capacity
- Sloped front door is top hinged
- Exterior made of corrosion-resistant aluminum
- Lined with easy-to-clean polyethylene
- Supported with 6-in. legs
Dimensions & Utilities
- Ice maker: 30.25 in. W x 24.25 in. D x 21.25 in. H
- Ice bin: 30 in. W x 31 in. D x 37.5 in. H
- 9.2 A, 5.63 kW
- 208-230 V/60 Hz/1 ph
Warranty Offer
Pair your Ice-O-Matic ice maker with an OEM filter at purchase and change the cartridge regularly to get a 7-year evaporator warranty.
Elevation Series Modular Cube Ice Maker w/ Bin, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30″ W, approximately 600 lb production/24 hours at 70°/50° (455 lb at 90°/70-°, half-size cubes, PURE ICE built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 208-230v/60/1-ph, 9.2 amps, cULus, NSF, CE; Ice Bin: 344 lb storage capacity, 30″W x 31″D x 37-1/2″H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable stainless finish exterior, 6″ legs, NSF
