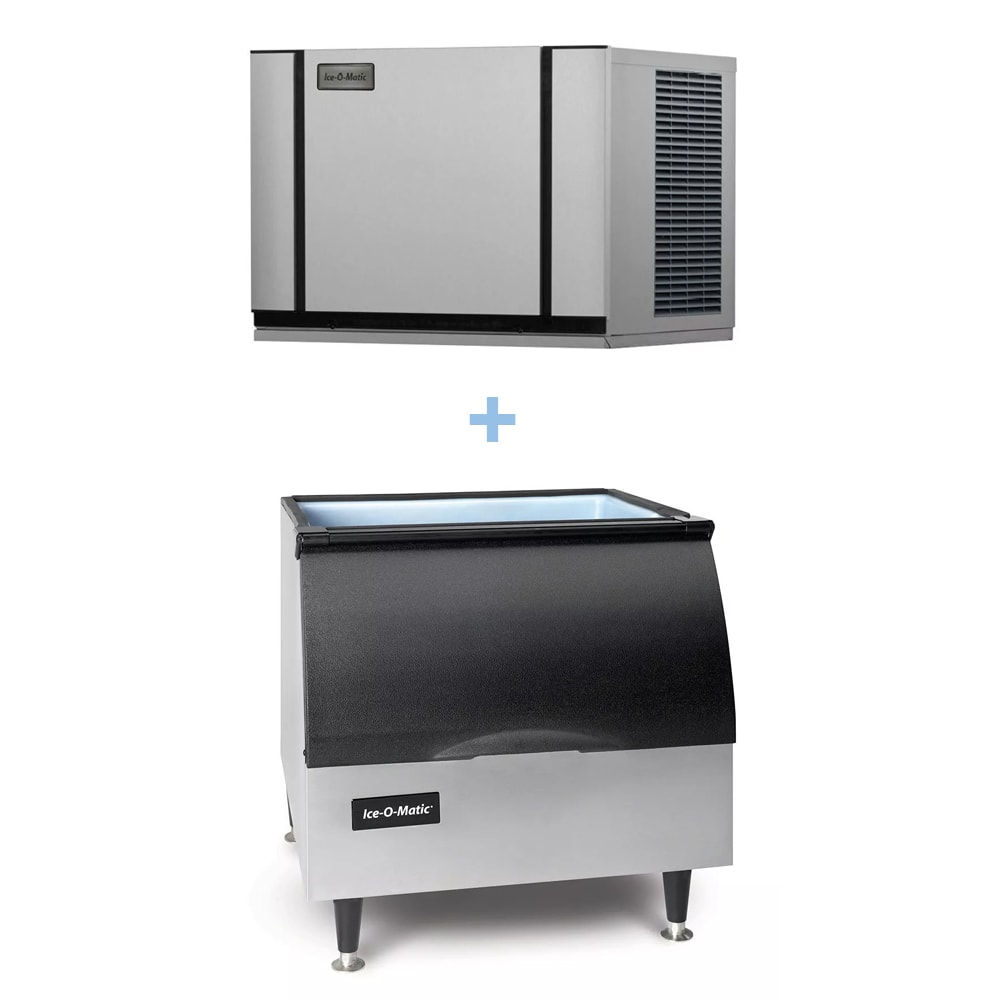

Ice-O-Matic CIM0636HA/B25PP Description
Enabling users to install it in a variety of settings, the Ice-O-Matic CIM0636HA/B25PP ice maker and bin features a dual-exhaust system that discharges air from the side as well as the top. In half-cube form—a type ideal for chilling soft drinks and iced tea—it produces as much as 600 pounds per day in ideal environmental conditions. Its plastic food zone eliminates crevices that harbor bacteria, and its PURE ICE treatment inhibits the growth of harmful microbes. To further optimize cleanliness and performance, it descales and sanitizes with one-touch controls.
The Ice-O-Matic CIM0636HA/B25PP ice machine’s accompanying bin’s interior is lined with sanitary polyethylene to simplify cleaning and ensure ice remains fresh and free of dust or debris. It can accommodate a maximum of 242 pounds of ice, which can be accessed through a sloped, top-hinged front door. This unit features a durable rotocast exterior and is elevated on 6-inch legs.
Ice Maker Details
- Part of the Elevation Series
- 600-lb. maximum daily ice production
- 455-lb. AHRI daily ice production
- Makes half-size cubes
- Cube size: 3/8 in. x 7/8 in. x 7/8 in.
- Plastic food zone can be quickly wiped clean
- Components in food zone are dishwasher safe
- LED display indicates operational status
- Unit descales and sanitizes with 1-touch controls
- Dual-exhaust system discharges air from top and side for installation flexibility
- Treated with PURE ICE antimicrobial agent
- Air cooled
- Self-contained condenser
- Uses R404A refrigerant
- Ideal incoming water pressure: 20-80 PSIG
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient temperature range: 50-100 degrees F
- 8,600-BTU heat transfer capacity
Product Features

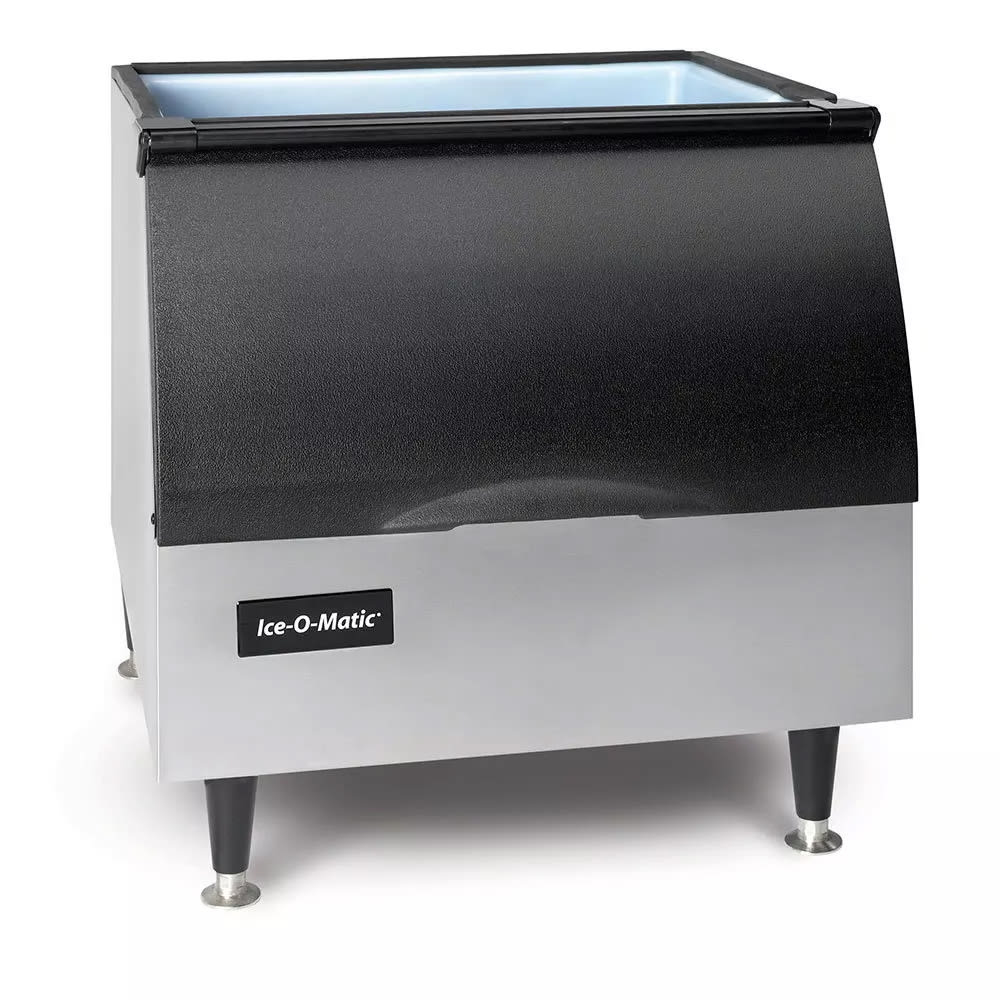

Ice Bin Details
- 242-lb. application capacity
- Sloped, top-hinged front door
- Durable rotocast exterior
- Sanitary polyethylene interior liner
- Elevated on 6-in. legs
Dimensions & Utilities
- Ice maker: 30.25 in. W x 24.25 in. D x 21.25 in. H
- Ice bin: 30 in. W x 31 in. D x 28 in. H
- 9.2 A, 5.63 kW
- 208-230 V/60 Hz/1 ph
Elevation Series Modular Cube Ice Maker w/ Bin, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30″ W, approximately 600 lb production/24 hours at 70°/50° (455 lb at 90°/70°), half-size cubes, PURE ICE built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 208-230v/60/1-ph, 9.2 amps, cULus, NSF, CE; Ice Bin: 242 lb storage capacity, 30″W x 31″D x 28″H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, rotocast exterior finish, 6″ legs, NSF
