Description

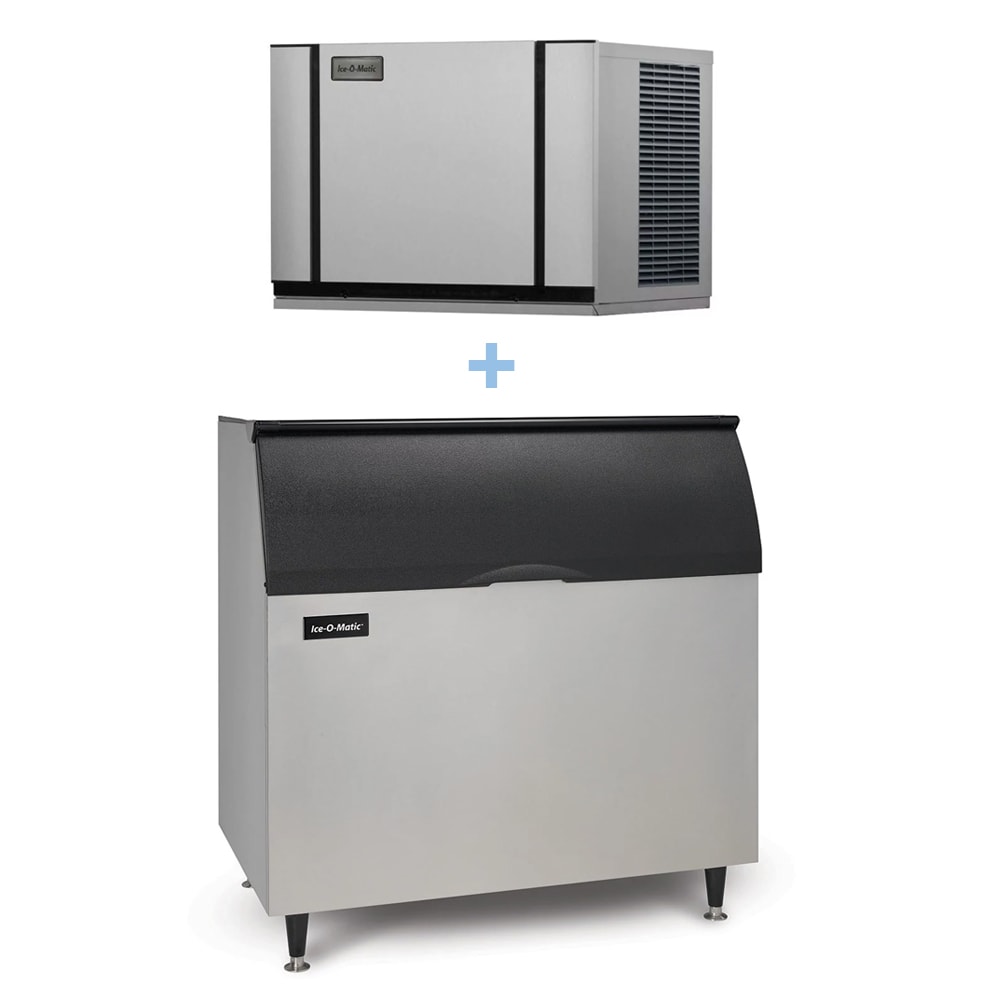

Ice-O-Matic CIM0636HA/B110PS
The Ice-O-Matic CIM0636HA/B110PS ice maker with bin is an air-cooled unit that can produce a maximum of 435 pounds of ice a day in ideal environmental conditions. It produces half-size cubes that are great for chilling sodas, tea, or cocktails. To enable installation in a variety of settings, it features a dual-exhaust system that discharges air from the top and the side. One-touch controls facilitate thorough sanitizing and descaling, and an LED display keeps users aware of the unit’s status.
To preserve ice temperature for extended periods, the Ice-O-Matic CIM0636HA/B110PS ice machine’s accompanying bin is insulated with foam. It can accommodate as much as 854 pounds of ice, which operators can access through a top-hinged, sloped front door. Built for durability and cleanliness, it features a corrosion-resistant aluminum exterior and a polyethylene interior liner.

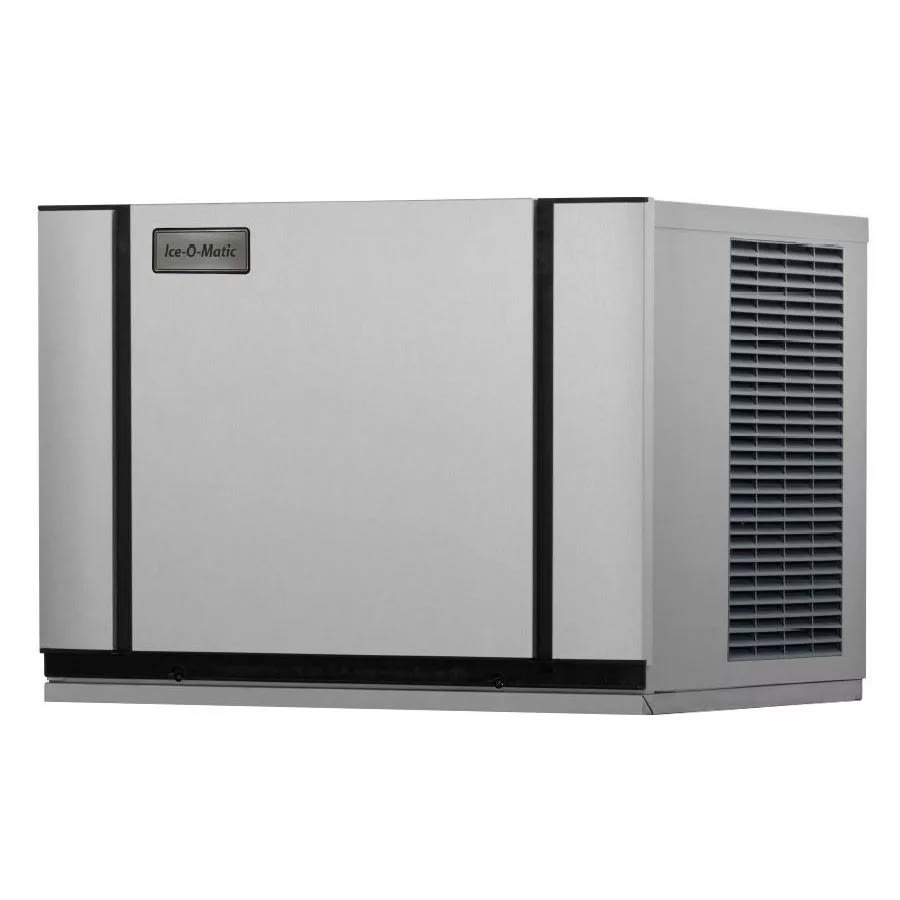

Ice Maker Details
- Part of the Elevation Series
- 600-lb. maximum daily ice production
- 455-lb. AHRI daily ice production
- Makes half-size cubes
- Cube size: 3/8 in. x 7/8 in. x 7/8 in.
- Dishwasher-safe components in plastic food zone streamline cleaning
- LED display indicates operational status
- 1-touch descaling and sanitizing optimizes performance
- PURE ICE antimicrobial protection is built in to inhibit bacterial growth
- Air cooled
- Dual-exhaust discharges air from side and top
- Self-contained condenser
- Cools with R404A refrigerant
- Ideal incoming water pressure: 20-80 PSIG
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient temperature range: 50-100 degrees F
- 8,600-BTU heat transfer capacity
Product Features

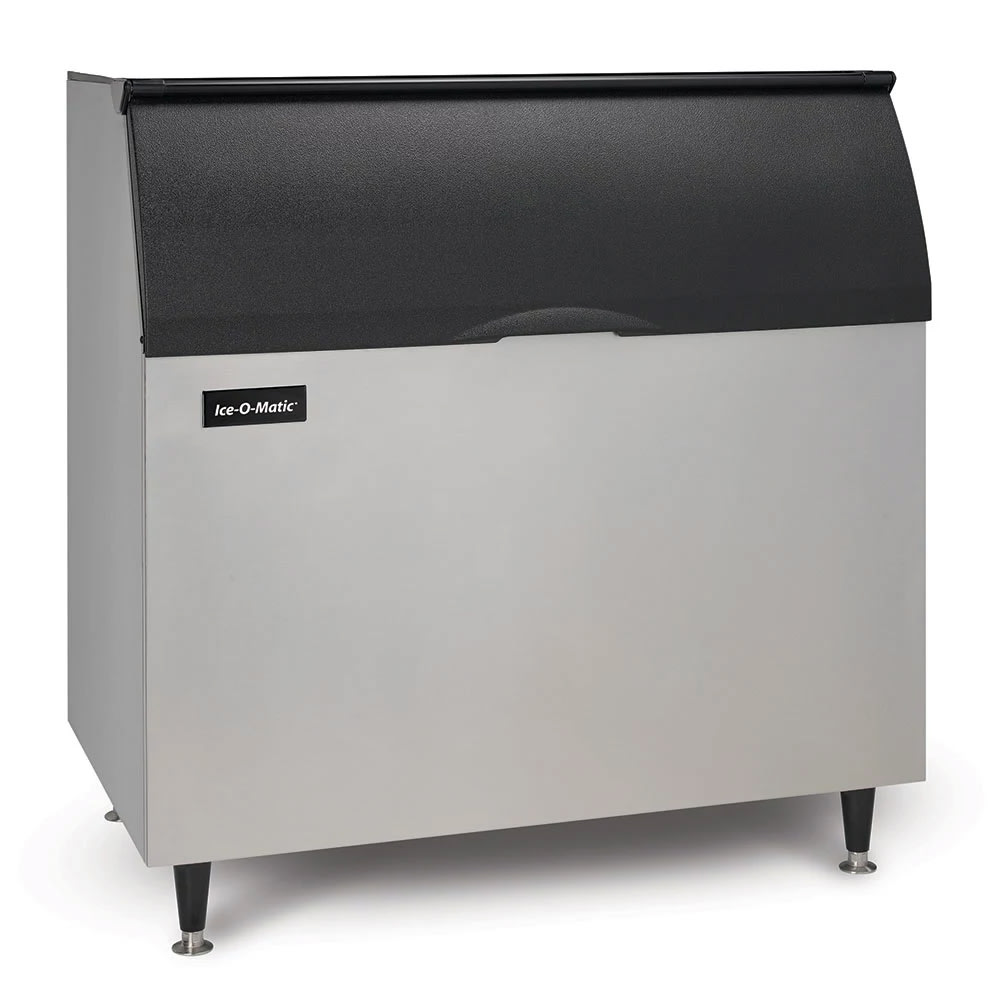

Ice Bin Details
- 854-lb. application capacity
- Top-hinged, sloped front door
- Exterior made of corrosion-resistant aluminum
- Foam insulation preserves ice temperature
- Rests on 6-in. legs
- Interior lined with sanitary polyethylene
Dimensions & Utilities
- Ice maker: 30.25 in. W x 24.25 in. D x 21.25 in. H
- Ice bin: 48 in. W x 31 in. D x 50 in. H
- 9.2 A, 5.63 kW
- 208-230 V/60 Hz/1 ph
Elevation Series Modular Cube Ice Maker w/ Bin, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30″ W, approximately 600 lb production/24 hours at 70°/50° (455 lb at 90°/70°), half-size cubes, PURE ICE built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 208-230v/60/1-ph, 9.2 amps, cULus, NSF, CE; Ice Bin w/ Filler Panels: 854 lb storage capacity, 48″W x 31″D x 50″H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable stainless finish exterior, 6″ legs, NSF
