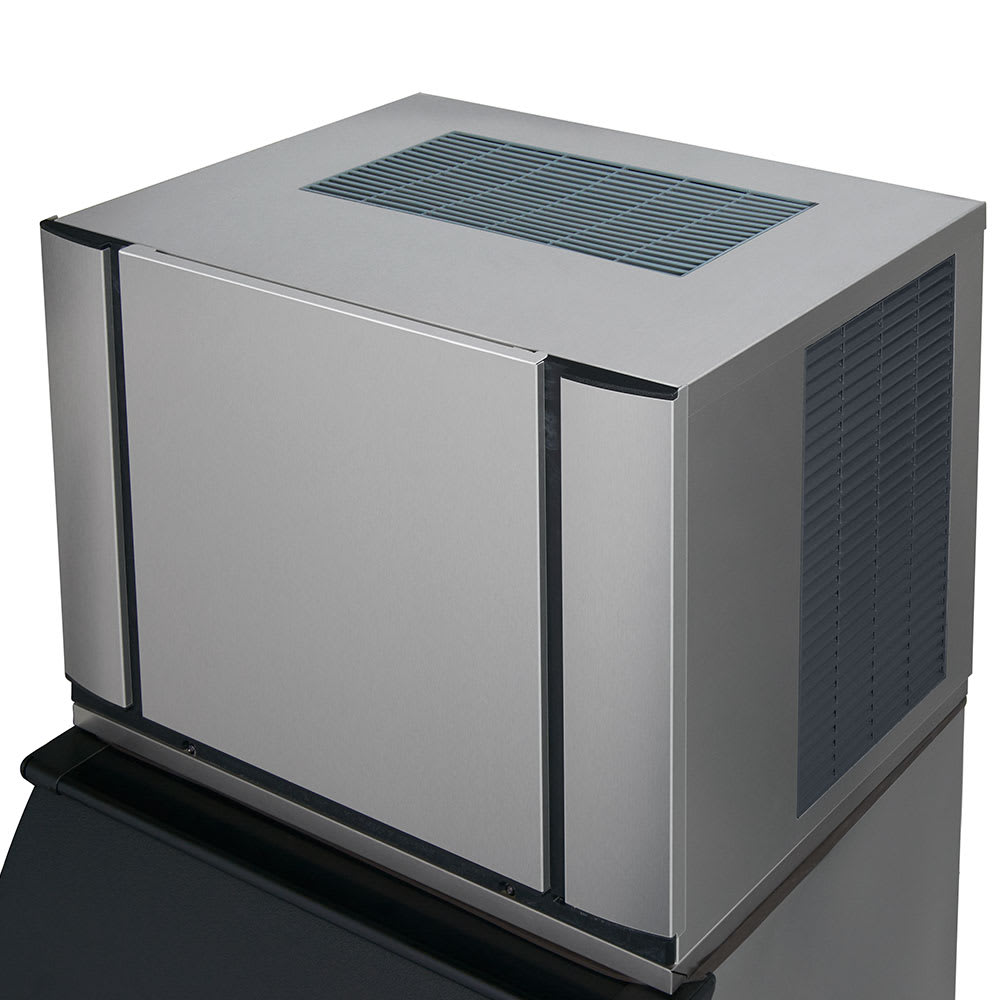

Ice-O-Matic CIM0636HA 30″ Elevation Series Half Cube Ice Machine Head – 600 lb/24 hr, Air Cooled, 208/230v/1ph

The Ice-O-Matic CIM0636HA Elevation modular cube ice maker uses a Universal Smart Harness control board to simplify installation and maintenance. It is easy to clean with its one-touch descaling and sanitizing controls. At required cleaning times, the LED status display alerts the operator, and the dishwasher-safe components are easy to snap in and out of place. Since the plastic food zone is made without crevices, it is easy to wipe clean.

The R-404A refrigerant is cooled with an air-cooled, self-contained condenser. With its dual exhaust system, air discharges from the top and side of the unit, maximizing installation possibilities. Producing up to 600 pounds of ice in a 24-hour period, the Ice-O-Matic CIM0636HA Elevation modular cube ice maker produces half-cube ice that measures ³/₈ inch by ⁷/₈ inch by ⁷/₈ inch so they work well in blended drinks, sodas, and bagged ice operations.

Product Details

• Makes half-cube, ³/₈-in. x ⁷/₈-in. x ⁷/₈-in. ice
• Produces up to 600 lbs. of ice in 24 hrs. at 70 degrees F
• Produces up to 455 lbs. of ice in 24 hrs. at 90 degrees F
• Self-contained, air-cooled condenser is easy to service
• Air discharges from the top and side thanks to a dual exhaust system that increases installation flexibility
• Digital diagnostics, universal components, and the common configuration of the Universal Smart Harness control board make it easy to install and maintain
• Uses R-404A refrigerant to maintain cold temperatures
• Plastic parts are recyclable and BPA-free
• 208-230 V/60 Hz/1 ph, 9 A, 4.27 kW, 8600 BTU
• Overall Dimensions: 30¹/₄ in. W x 24¹/₄ in. D x 21¹/₄ in. H

Easy to Clean

• Reduces the risk of bacteria growth with Agion antimicrobial protection
• Required cleaning times are indicated on the LED status display

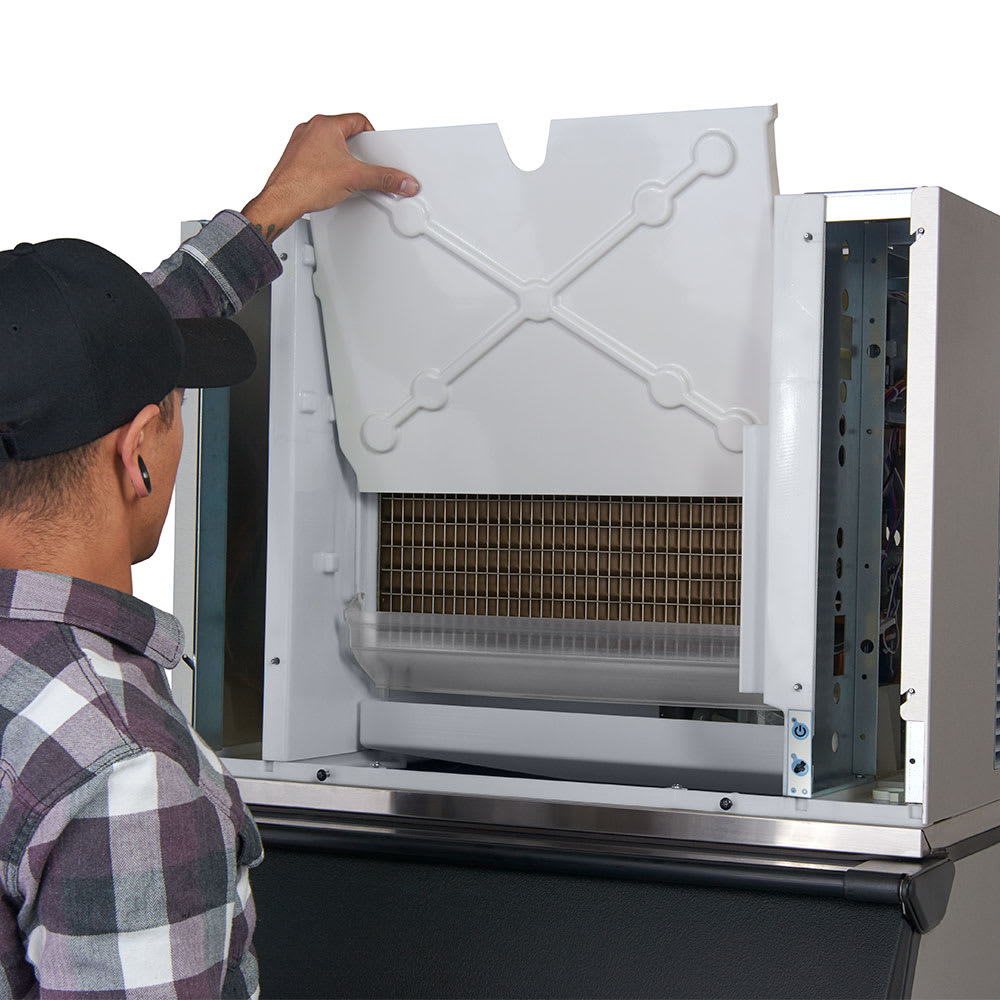

• Dishmachine-safe components easily snap in and out

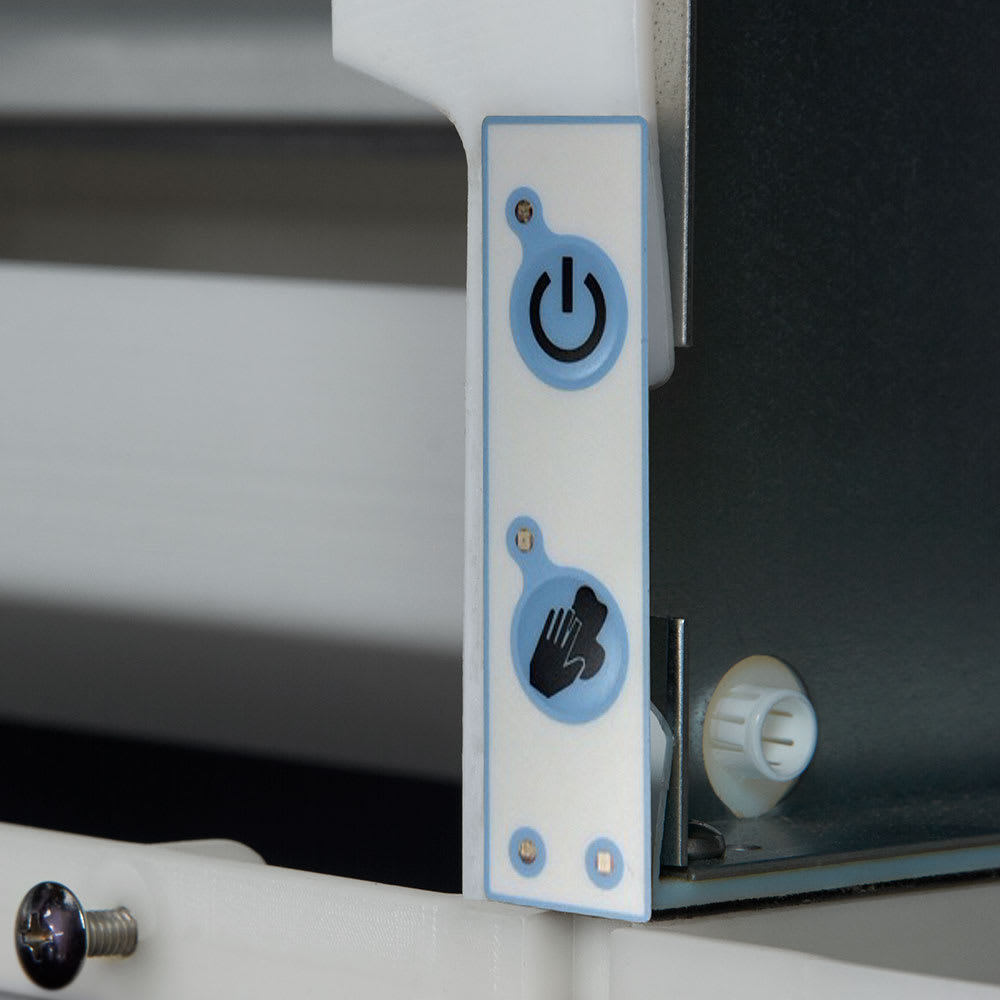

• One-touch controls simplify sanitizing and descaling
• Plastic food zone lacks crevices so it is easy to wipe clean

Elevation Series Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30″ W, approximately 600 lb production/24 hours at 70°/50° (455 lb at 90°/70°), half-size cubes, Agion built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 208-230v/60/1-ph, 9.2 amps, cULus, NSF, CE
