Description
Ice-O-Matic CIM0530FA/B1600-60

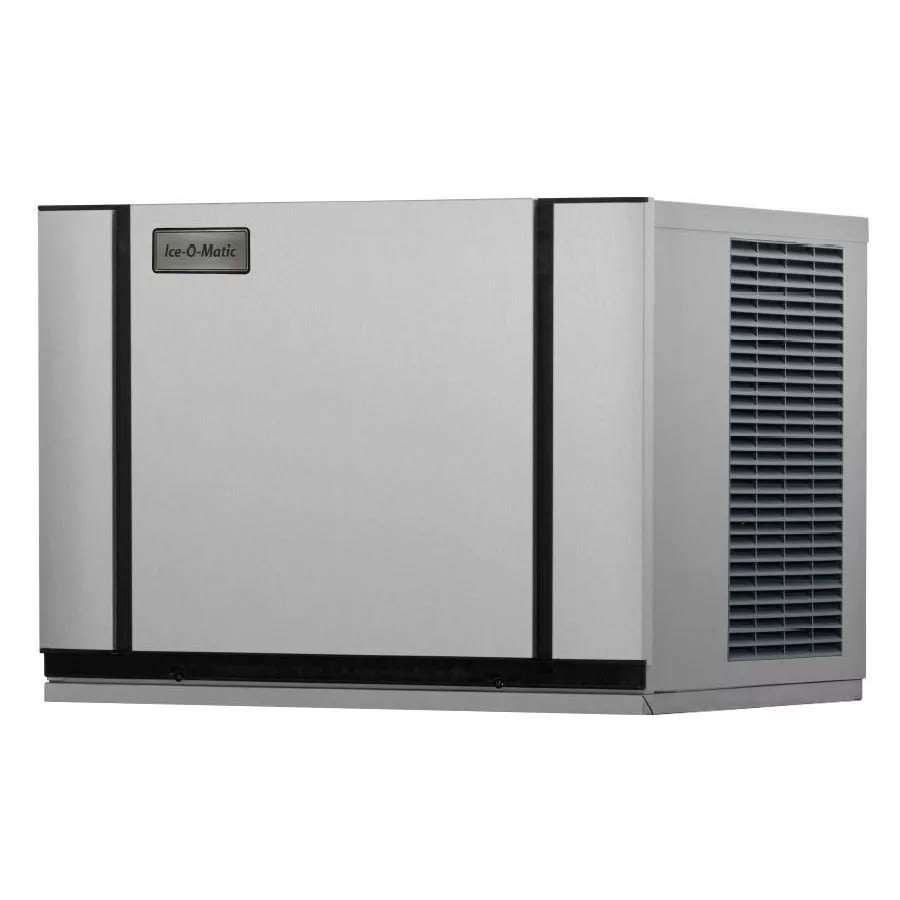

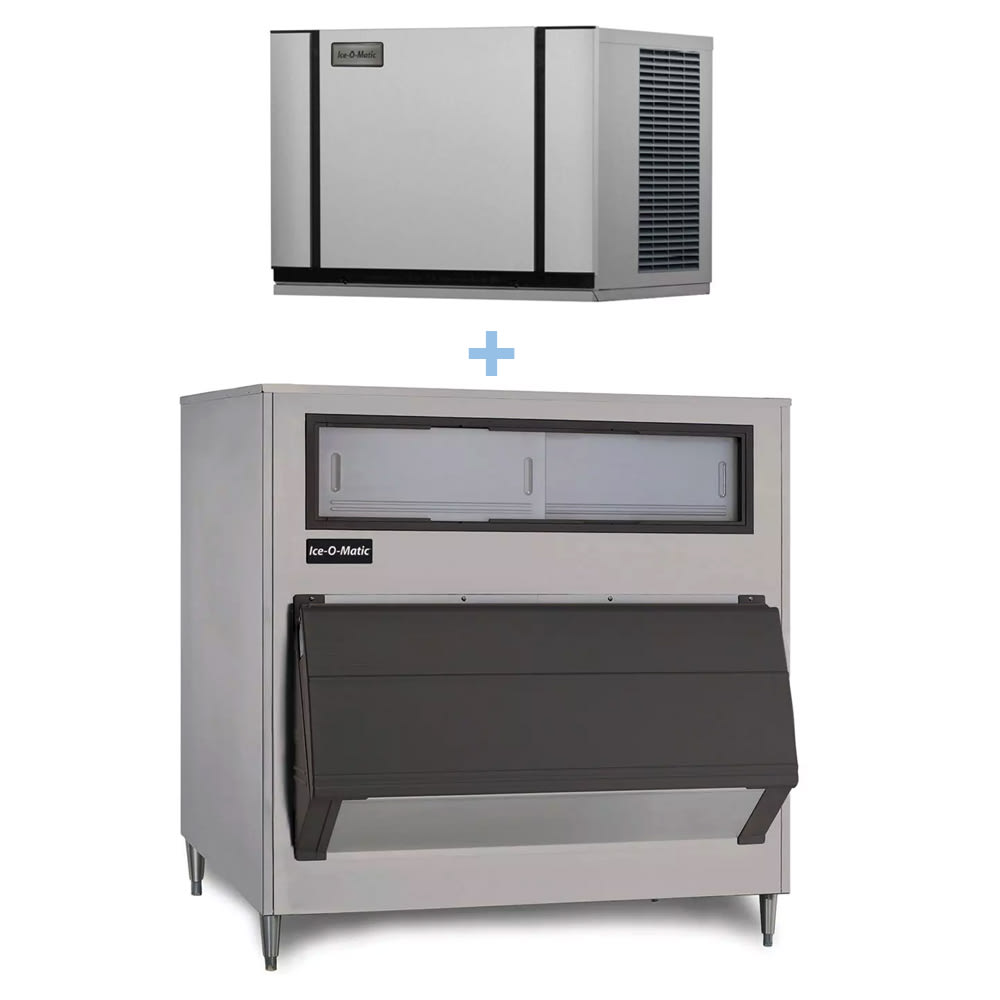

The Ice-O-Matic CIM0530FA/B1600-60 full-cube ice maker with bin produces as much as 561 pounds of ice per 24 hours and can hold 1,660 pounds of ice in storage. This air-cooled machine is cooled by moving fresh air across the condenser, and it’s simple to install and maintain because the entire condenser is located within the unit. Part of the Elevation Series, the machine discharges hot air from the top and side to maximize installation.
With a bin measuring 65 inches high and the ice maker measuring 30.25 inches wide, the Ice-O-Matic CIM0530FA/B1600-60 modular cube ice maker uses PURE ICE® antimicrobial protection to inhibit bacterial formation. This piece of equipment is made of durable stainless steel. Its poly liner is resistant to corrosion and its door stays open during use.
Ice Machine Details
- Part of the Elevation Series
- Maximum production capacity: 561 lbs. of ice per 24 hours
- AHRI production capacity: 432 lbs. of ice per 24 hours
- Produces full-cube ice
- Eco-friendly construction includes BPA-free plastic and recyclable parts
- Plastic foodzone eliminates nooks and crannies for simple cleaning
- PURE ICE antimicrobial protection inhibits bacterial growth
- Smart LED light signals time for unit cleaning
- 1-touch controls simplify descaling and sanitation
- Snap-in-and-out components can be cleaned in warewasher
- Hot air discharges from side and top to lessen exhaust and improve installation
- Universal Smart Harness control board facilitates servicing and installation
- Digital diagnostics deliver machine status
- Common configuration and universal components
- Heat displacement: 6,252 BTU
Product Features

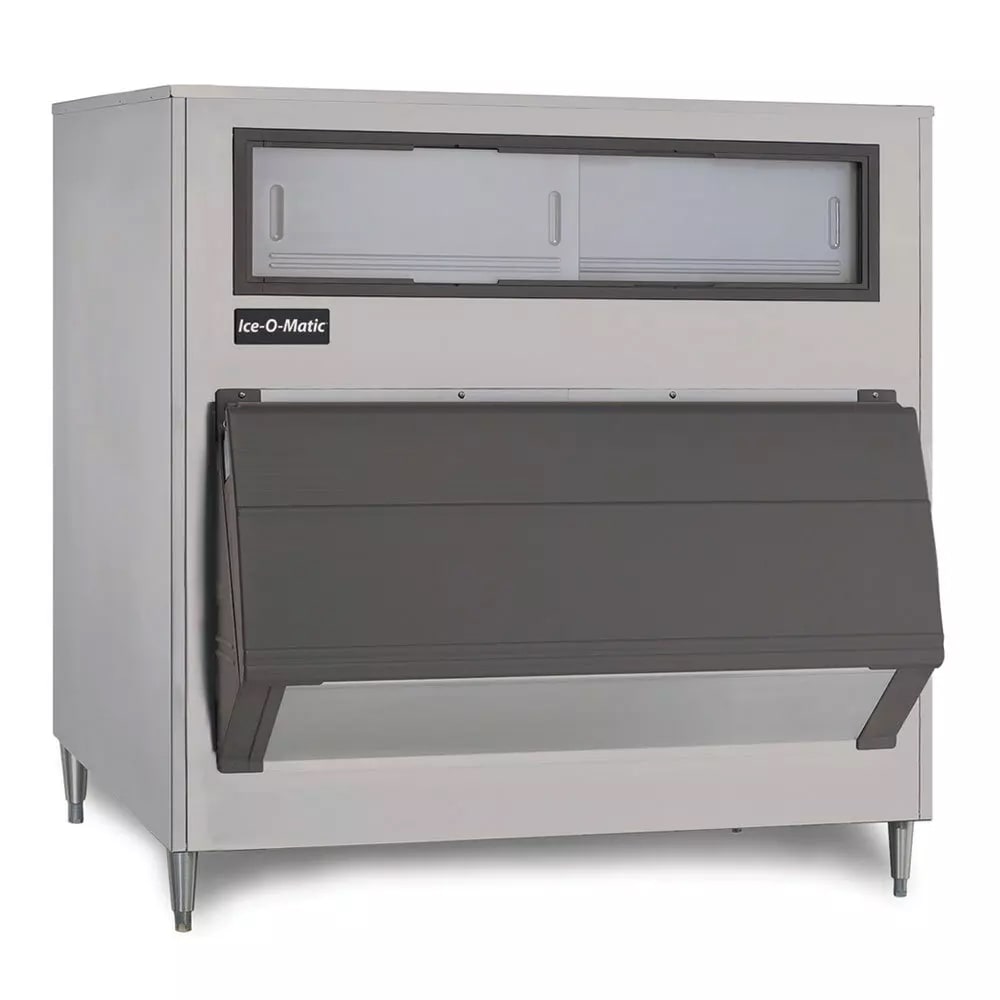

Ice Bin Details
- 1,660-lb. storage capacity
- Constructed of strong stainless steel
- First-in, first-out ice delivery management
- Poly bin liner resists corrosion
- Door stays open during use
- Ice shield controls flow and inhibits spills
Dimensions & Utilities
- Ice machine head: 30.25 in. W x 24.25 in. D x 21.25 in. H
- Ice bin: 60 in. W x 31 in. D x 65 in. H
- 17.8 A, 5.87 kW
- 115 V/60 Hz/1 ph
Elevation Series Modular Cube Ice Maker w/ Bin, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30″ W, approximately 561 lb production/24 hours at 70°/50° (432 lb at 90°/70°), full-size cubes, PURE ICE built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 115v/60/1-ph, 17.8 amps, cULus, NSF, CE; Ice Bin: 1660 lb storage capacity, 60″W x 31″D x 65″H, stainless steel construction, first in first out ice management, corrosion resistant Poly Liner, heavy duty “stay open” door for easy one hand access, ice shield controls flow & reduces spills, NSF
