Description

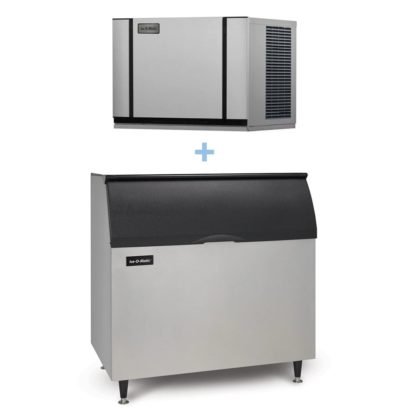

Ice-O-Matic CIM0530FA/B110PS
Measuring 30.25 inches wide by 24.25 inches deep by 21.25 inches high, the Ice-O-Matic CIM0530FA/B110PS full-cube ice maker is optimal for establishments that want to maximize kitchen space. This piece of equipment produces as much as 561 pounds of ice per 24 hours, and its environmentally friendly construction includes recyclable parts and BPA-free plastic. The machine’s plastic foodzone facilitates cleaning by eliminating nooks and crannies.
To protect product from bacteria, the Ice-O-Matic CIM0530FA/B110PS modular cube ice maker with bin has built-in PURE ICE. When cleaning is required, this piece of equipment alerts users with smart LED light indicators, and its one-touch controls simplify sanitation and descaling. To streamline cleaning, the machine’s components snap in and out and can be washed in dishmachines. The unit discharges hot air from the top and side to optimize installation options.
Ice Machine Details
- Part of the Elevation Series
- Maximum production capacity: 561 lbs. of ice per 24 hours
- AHRI production capacity: 432 lbs. of ice per 24 hours
- Produces full-cube ice
- Constructed with recyclable parts and BPA-free plastic
- Plastic foodzone streamlines cleaning
- PURE ICE antimicrobial protection inhibits bacterial growth
- Smart LED light signals when cleaning is required
- 1-touch controls facilitate sanitation and descaling
- Warewasher-safe components snap in and out for facilitated cleaning
- Hot air discharges from side and top to reduce exhaust and optimize installation
- Universal Smart Harness control board facilitates servicing
- Digital diagnostics provide status of machine
- Universal components and common configuration
- Heat displacement: 6,252 BTU
Product Features

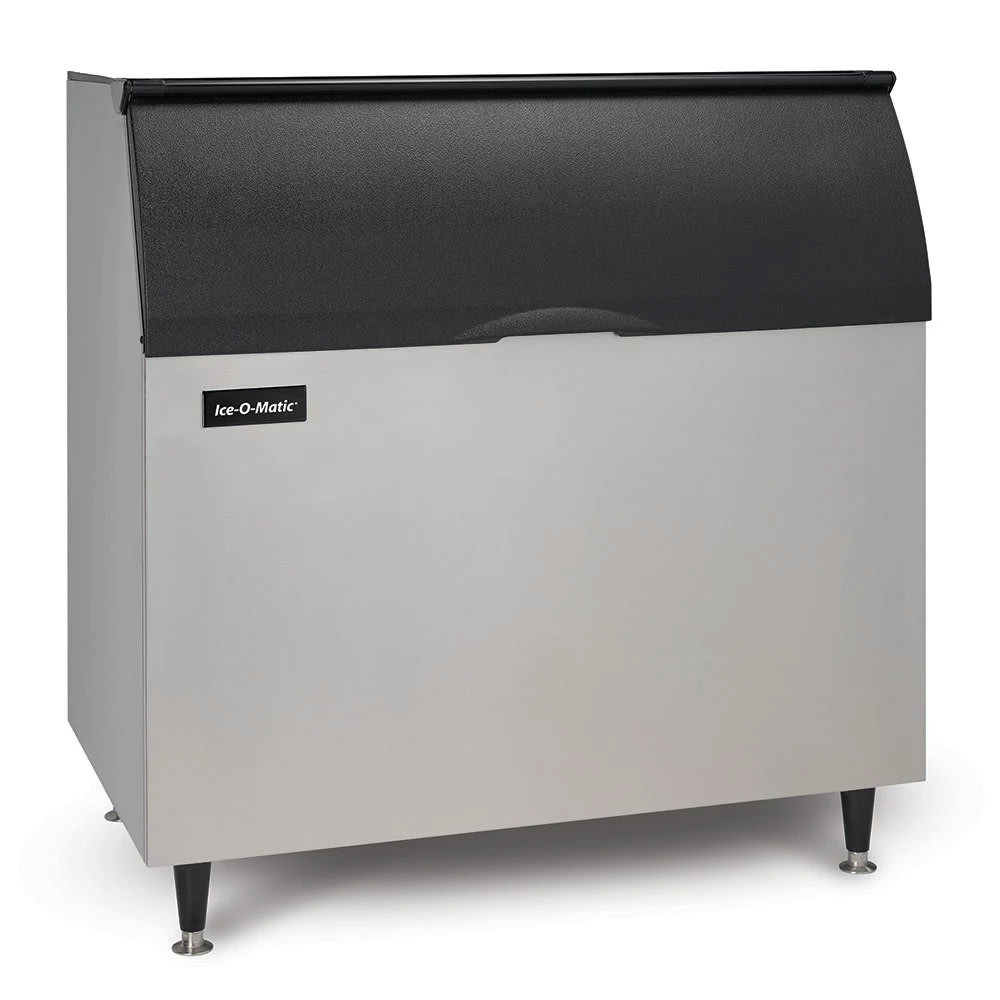

Ice Bin Details
- Includes BPF-1 filler panels for mounting 30-in.-wide modular ice cuber
- 854-lb. storage capacity
- Strong aluminum finish
- Polyethylene bin liner maximizes ice preservation with foam insulation
- 6-in. adjustable legs
- Slope front
Dimensions & Utilities
- Ice machine head: 30.25 in. W x 24.25 in. D x 21.25 in. H
- Ice bin: 48 in. W x 31 in. D x 50 in. H
- 17.8 A, 5.87 kW
- 115 V/60 Hz/1 ph
Elevation Series Modular Cube Ice Maker w/ Bin, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30″ W, approximately 561 lb production/24 hours at 70°/50° (432 lb at 90°/70°), full-size cubes, PURE ICE built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 115v/60/1-ph, 17.8 amps, cULus, NSF, CE; Ice Bin w/ Filler Panels: 854 lb storage capacity, 48″W x 31″D x 50″H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable stainless finish exterior, 6″ legs, NSF
