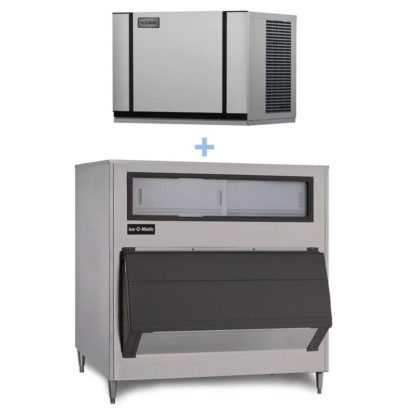

Ice-O-Matic CIM0530FA/B1000-48 561 lb Full Cube Ice Maker w/ Bin – 1000 lb Storage, Air Cooled, 115v

Part of the Elevation Series the Ice-O-Matic CIM0530FA/B1000-48 modular cube ice maker with bin is an air-cooled unit‚Äîthe economical alternative to water-cooled and remote units. This piece of equipment’s fans move fresh air across the condenser to cool the machine. It’s simple to install because the whole condensing unit is inside the machine‚Äîadditional wiring isn’t required. To simplify installation and avoid obstructed exhaust, hot air is discharged from the side and top.

The Ice-O-Matic CIM0530FA/B1000-48 full-cube ice maker measures 30.25 inches wide by 24.25 inches deep by 21.25 inches high. At 50- to 70-degree-Fahrenheit ambient temperatures, it can produce 561 pounds of full-size ice, and at 70 to 90 degrees Fahrenheit, it can craft 432 pounds of ice. This piece of equipment is protected from bacteria by built-in antimicrobial PURE ICE. With a 1,000-pound ice storage capacity, the bin measures 48 inches wide by 31 inches deep by 56 inches tall.

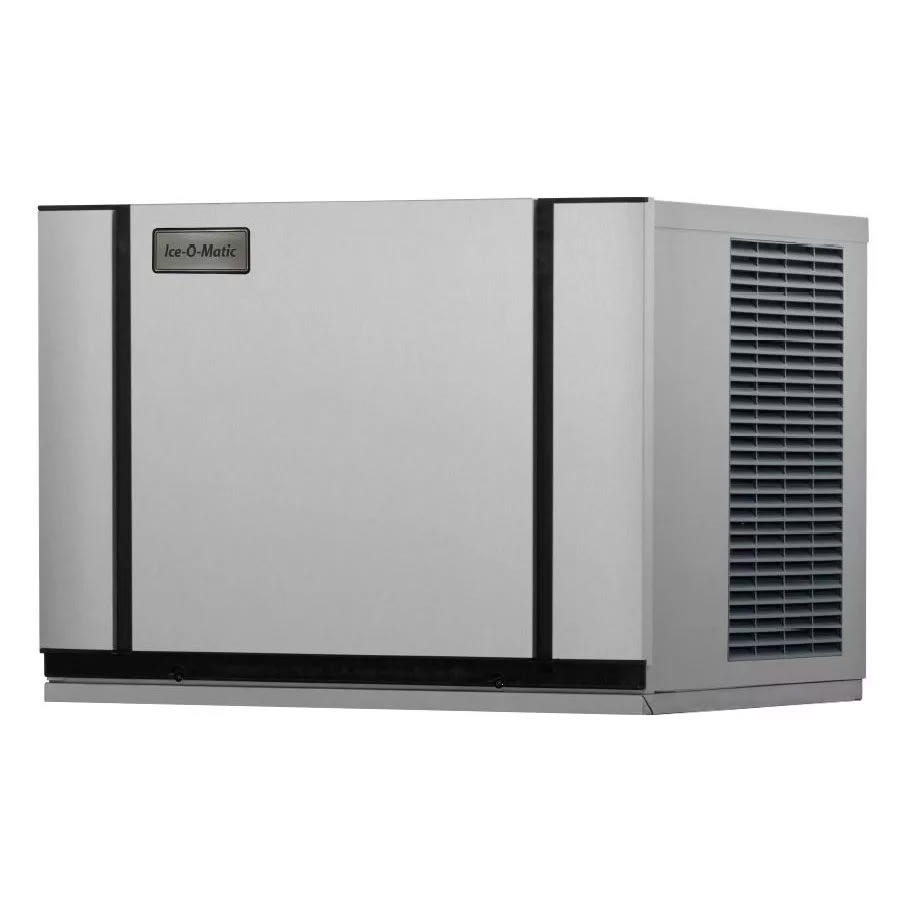

Ice Machine Details

• Part of the Elevation Series
• Maximum production capacity: 561 lbs. of ice per 24 hours
• AHRI production capacity: 432 lbs. of ice per 24 hours
• Produces full-cube ice
• Made with recyclable parts and BPA-free plastic
• Plastic foodzone simplifies cleaning
• PURE ICE antimicrobial protection
• Smart LED light alerts users when cleaning is required
• 1-touch controls streamline descaling and sanitation
• Dishmachine-safe components snap out to facilitate cleaning
• Hot air discharges from top and side to simplify installation and reduce exhaust
• Universal Smart Harness control board streamlines servicing and installation
• Digital diagnostics deliver machine status
• Common configuration and universal components
• Heat displacement: 6,252 BTU

Product Features

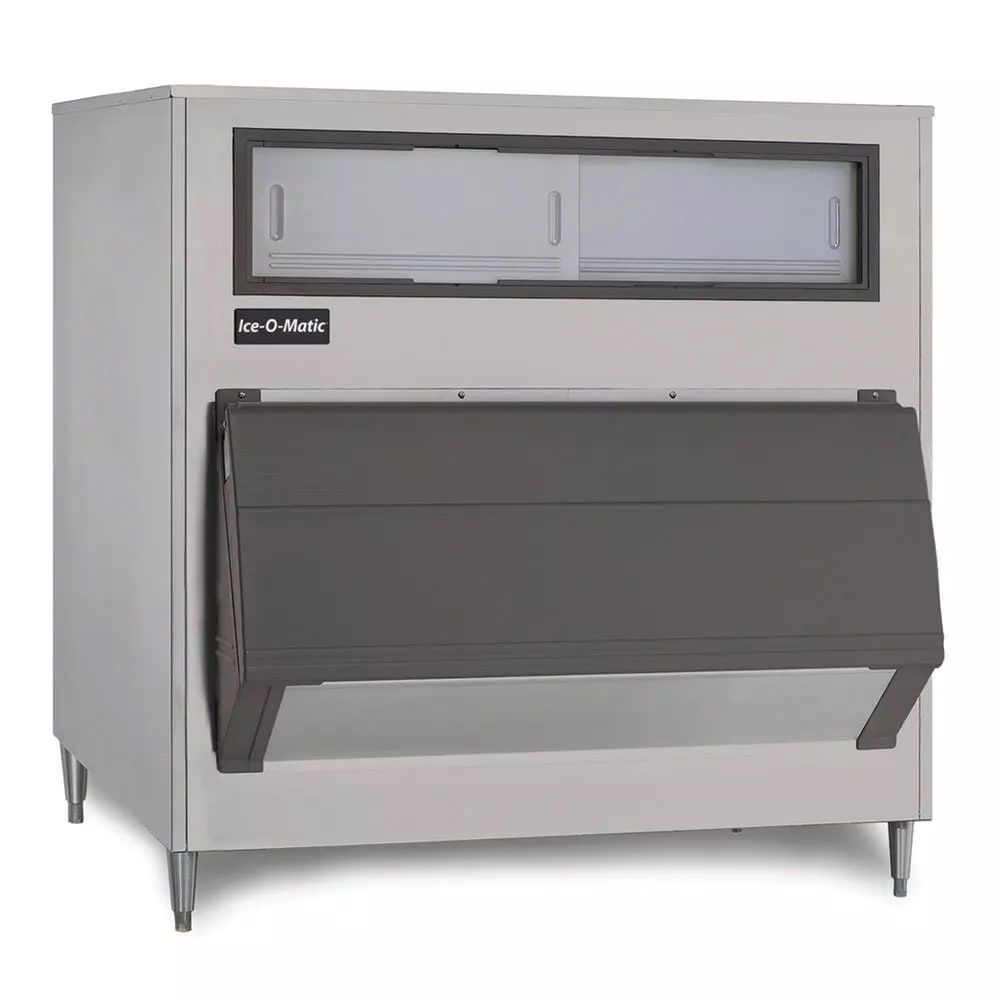

Ice Bin Details

• 1,000-lb. storage capacity
• Made of durable stainless steel
• Polyethylene bin liner resists corrosion
• Strong door stays open during use
• Ice shield reduces spills and controls flow

Dimensions & Utilities

• Ice machine head: 30.25 in. W x 24.25 in. D x 21.25 in. H
• Ice bin: 48 in. W x 31 in. D x 56 in. H
• 17.8 A, 5.87 kW
• 115 V/60 Hz/1 ph

Elevation Series Modular Cube Ice Maker w/ Bin, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30″ W, approximately 561 lb production/24 hours at 70°/50° (432 lb at 90°/70°), full-size cubes, PURE ICE built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 115v/60/1-ph, 17.8 amps, cULus, NSF, CE; Ice Bin: 1000 lb storage capacity, 48″W x 31″D x 56″H, stainless steel construction, first in first out ice management, corrosion resistant Poly Liner, heavy duty “stay open” door for easy one hand access, ice shield controls flow & reduces spills, NSF
