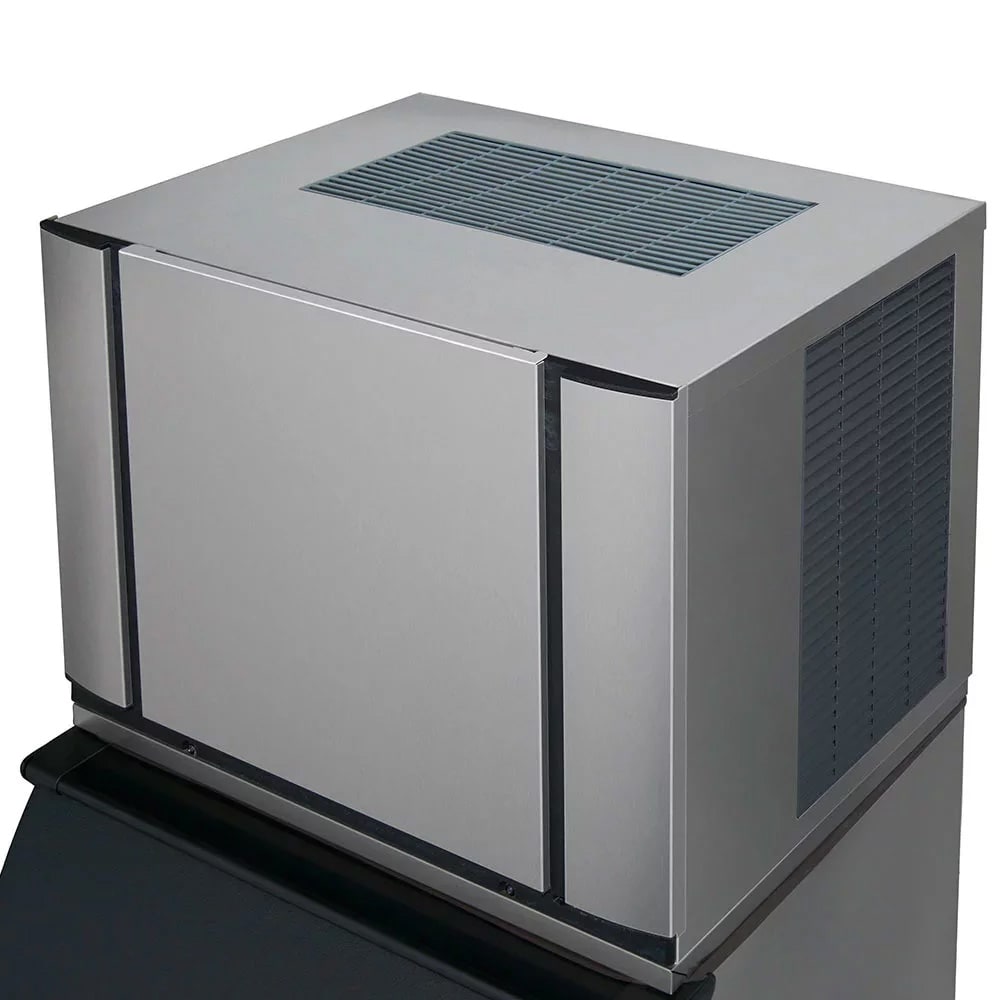

Ice-O-Matic CIM0526HA 22″ Elevation Series Half Cube Ice Machine Head – 555 lb/day, Air Cooled, 208/230v/1ph

The Ice-O-Matic CIM0526HA half-cube ice machine head measures 22.25 inches in width by 24.25 inches in depth by 21.25 inches in height. This piece of equipment is part of the Elevation Series and can produce 555 pounds of ice per 24 hours. Because it’s an air-cooled machine, it’s economical and simple to install. To cool the unit, fans within the machine move fresh air across the condensers, and because the condensing unit is inside the machine itself, additional wiring isn’t required.

To optimize installation flexibility and reduce the potential of exhaust obstruction, the Ice-O-Matic CIM0526HA ice maker discharges hot air from the top and side. PURE ICE protection inhibits the formation of bacteria, and an LED status display alerts users when it’s time to clean the unit. The one-touch sanitization and descaling controls simplify the user experience.

Product Details

• Part of the Elevation Series
• Maximum production capacity: 555 lbs. of ice per 24 hours
• AHRI production capacity: 445 lbs. of ice per 24 hours
• Produces half-cube ice
• Constructed with recyclable parts and BPA-free plastic
• Plastic foodzone creates long-lasting sanitation
• Bacterial formation inhibited by PURE ICE antimicrobial protection
• Smart LED light indicates status of machine

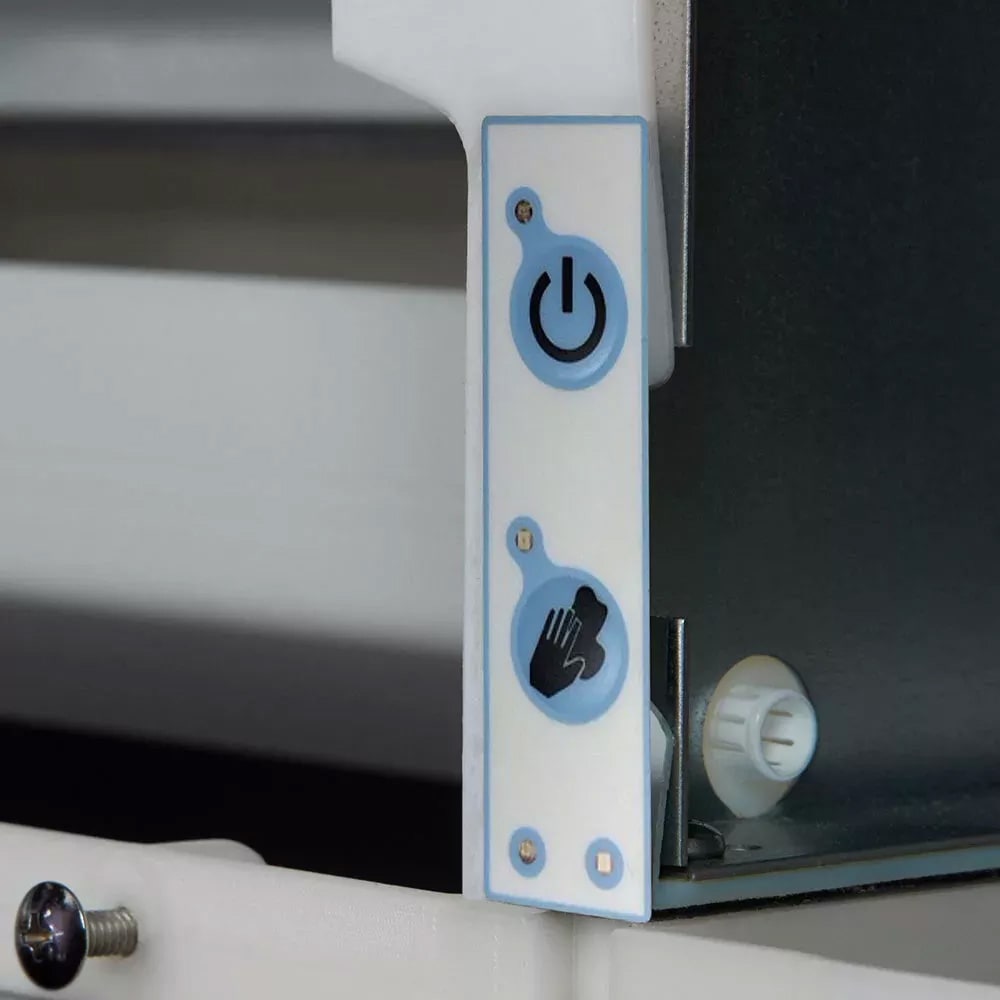

• 1-touch descaling and sanitation controls

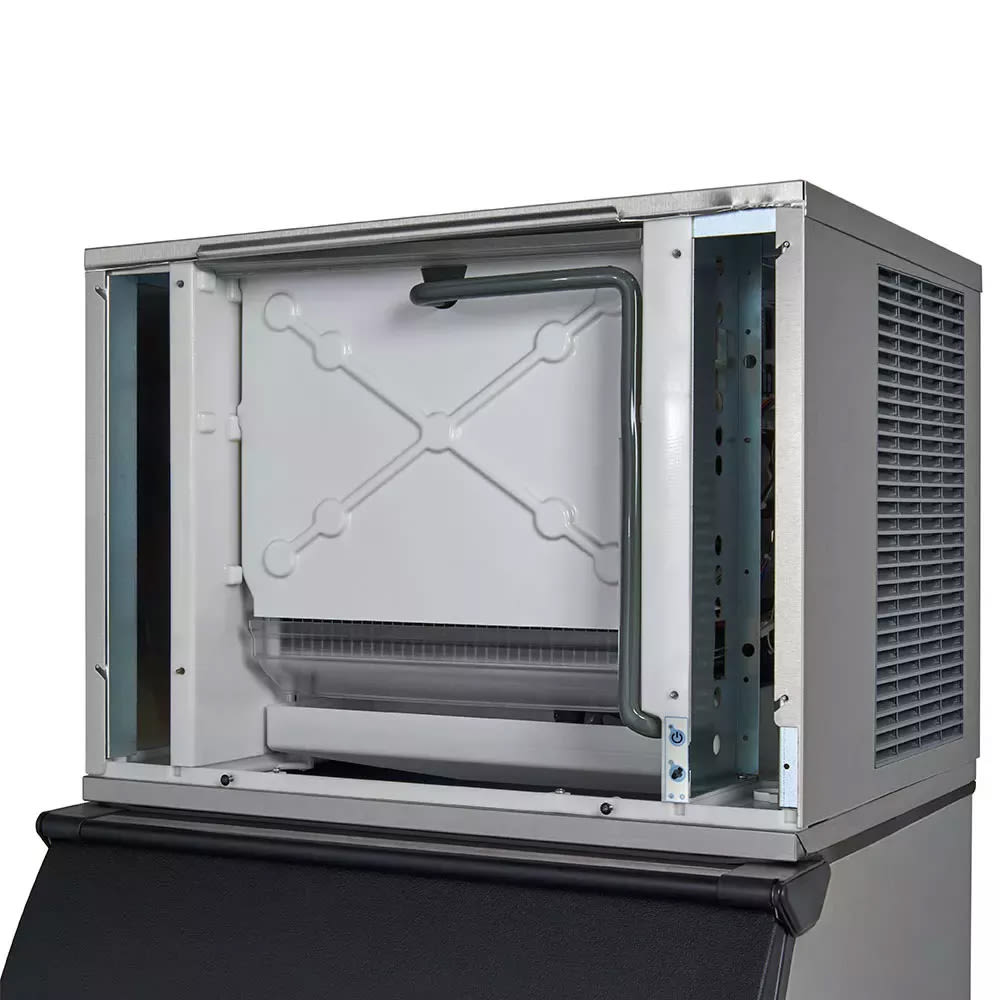

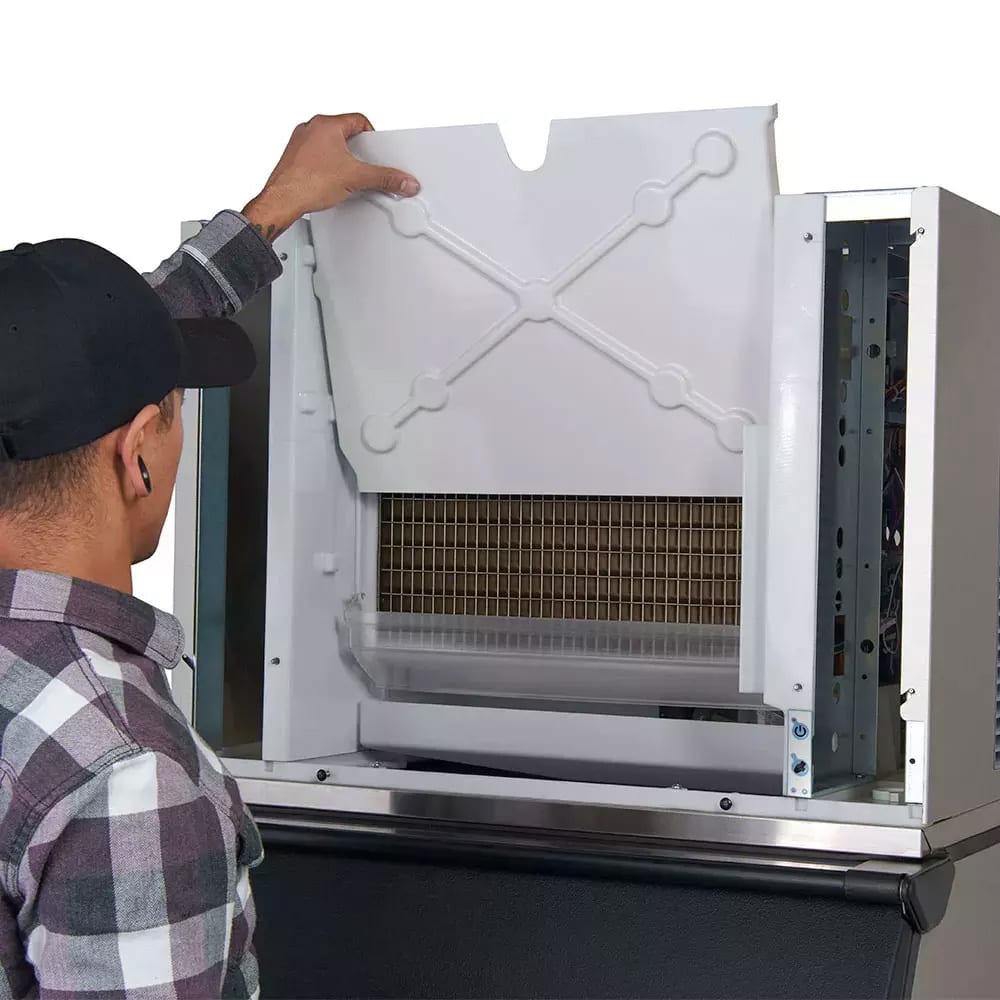

• Dishwasher-safe components snap out to facilitate cleaning
• Universal Smart Harness simplifies servicing and installation
• Digital diagnostics streamline maintenance
• Heat displacement: 6,252 BTU

Dimensions & Utilities

• Overall: 22.25 in. W x 24.25 in. D x 21.25 in. H
• 8.2 A, 5.02 kW
• 208-230 V/60 Hz/1 ph

Elevation Series Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 22″ W, approximately 555 lb production/24 hours at 70°/50° (445 lb at 90°/70°), half-size cubes, Agion built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 208-230v/60/1-ph, 8.2 amps, cULus, NSF, CE
