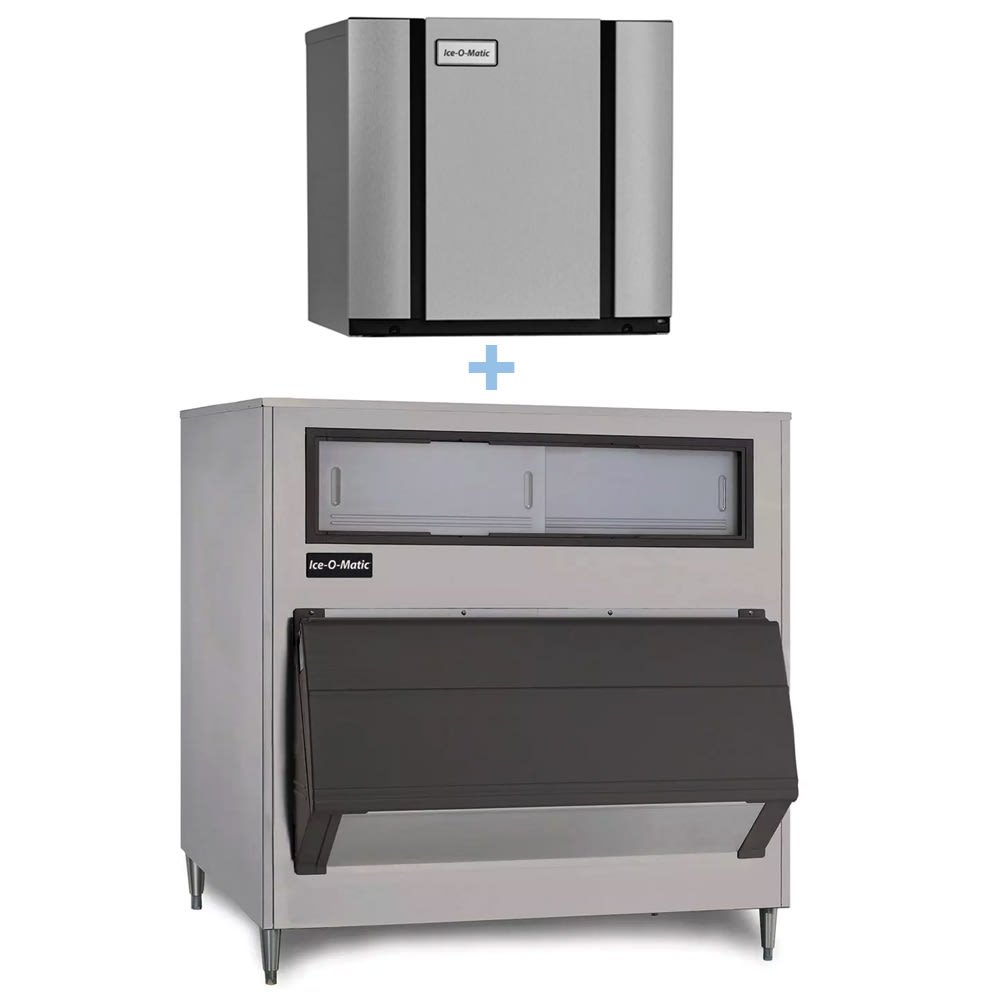

Ice-O-Matic CIM0520HA/B1600-60 561 lb Half Cube Ice Maker w/ Bin – 1660 lb Storage, Air Cooled, 115v

The Ice-O-Matic CIM0520HA/B1600-60 ice maker and bin is an excellent choice for casual dining and drinking establishments with its half-cube ice, which quickly chills beverages. To help counteract exhaust obstruction, the maker head has a dual exhaust system that releases heated air out the top and side. Its antimicrobial defense and one-touch descaling work together to combat contaminant buildups inside the head for sanitary conditions.

The Ice-O-Matic CIM0520HA/B1600-60 air-cooled ice machine’s bin is constructed of stainless steel, which is strong and withstands scratching and scraping, while offering solid long-term defense against corrosion and rust. Filling sizable ice needs for establishments, the bin can hold 1,660 pounds of ice. Its door stays open to facilitate ice withdrawal.

Ice Maker

• Part of the Elevation Series
• 561-lb. maximum daily ice production
• 432-lb. daily ice production at 90 degrees F air and 70 degrees F water
• Air-cooled system
• Produces half-cube ice
• Narrow design
• Dual exhaust system decreases exhaust obstruction through top and side vents
• Smart LED light updates machine status and cleaning needs
• PURE ICE antimicrobial defense
• 1-touch descaling/sanitization increases sanitation
• Plastic food zone
• Snap-out components are dishmachine safe
• Universal Smart Harness control board
• Full-cube size: ⁷/₈ in. x ⁷/₈ in. x ⁷/₈ in.
• Ideal ambient air temperature: 50-100 degrees F
• Ideal incoming water temperature: 40-100 degrees F
• Ideal incoming water pressure: 20-80 PSI
• 6,252-BTU heat transfer capacity
• Ideal clearance: 6 in. for air intake and exhaust

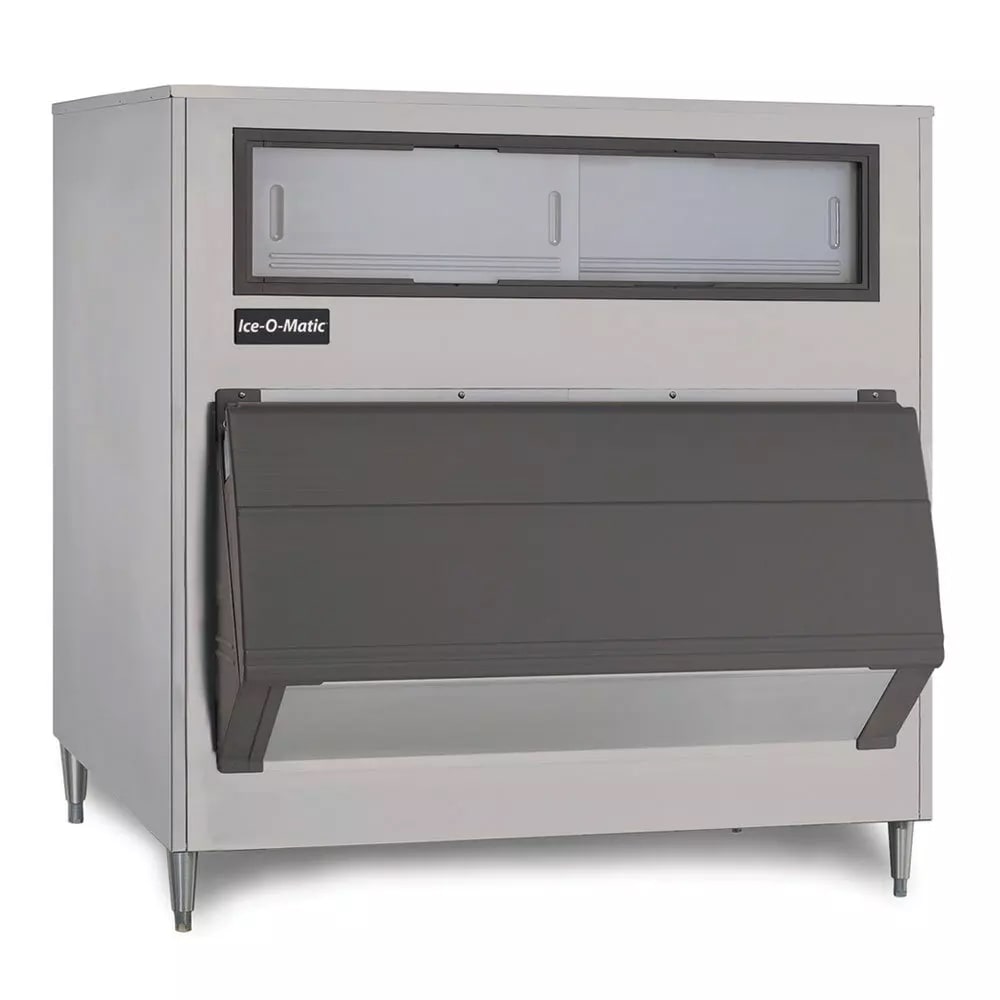

Ice Bin

• 1,660-lb. bin capacity
• 52.8-cu.-ft. holding capacity
• Constructed of dent- and rust-resistant stainless steel
• Poly bin liner resists corrosion
• Ice shield reduces spillage by regulating ice flow
• Stay-open door simplifies ice retrieval

Dimensions & Utilities

Ice Maker

• 22.25 in. W x 24.25 in. D x 21.25 in. H
• 17.8 A, 5.87 kW
• 115 V/60 Hz/1 ph

Ice Bin

• 60 in. W x 31 in. D x 65 in. H

Elevation Series Modular Cube Ice Maker w/ Bin, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 22″ W, approximately 561 lb production/24 hours at 70°/50° (432 lb at 90°/70°), half-size cubes, PURE ICE built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 115v/60/1-ph, 17.8 amps, cULus, NSF, CE; Ice Bin: 1660 lb storage capacity, 60″W x 31″D x 65″H, stainless steel construction, first in first out ice management, corrosion resistant Poly Liner, heavy duty “stay open” door for easy one hand access, ice shield controls flow & reduces spills, NSF
