Ice-O-Matic CIM0520HA 22″ Elevation Series Half Cube Ice Machine Head – 561 lb/24 hr, Air Cooled, 115v

The Ice-O-Matic CIM0520HA Elevation half-cube ice machine head has an air-cooled, self-contained refrigeration system that produces 561 pounds of ice daily. Hot air flows from the side and top of the unit, enabling flexible installation. Its Smart Harness control board provides digital diagnostics, and built-in antimicrobial agent prevents bacteria from growing. The plastic food zone removes nooks and crannies, facilitating cleanup. To keep the user informed, LED lights display the operating status and alert staff when cleaning is needed.

Note: This unit must be paired with an ice maker bin or ice dispenser.

Product Details

• Part of the Elevation series
• 561-lb. daily ice production
• 432-lb. AHRI-certified daily ice production
• Air-cooled, self-contained refrigeration system
• Uses R404A refrigerant

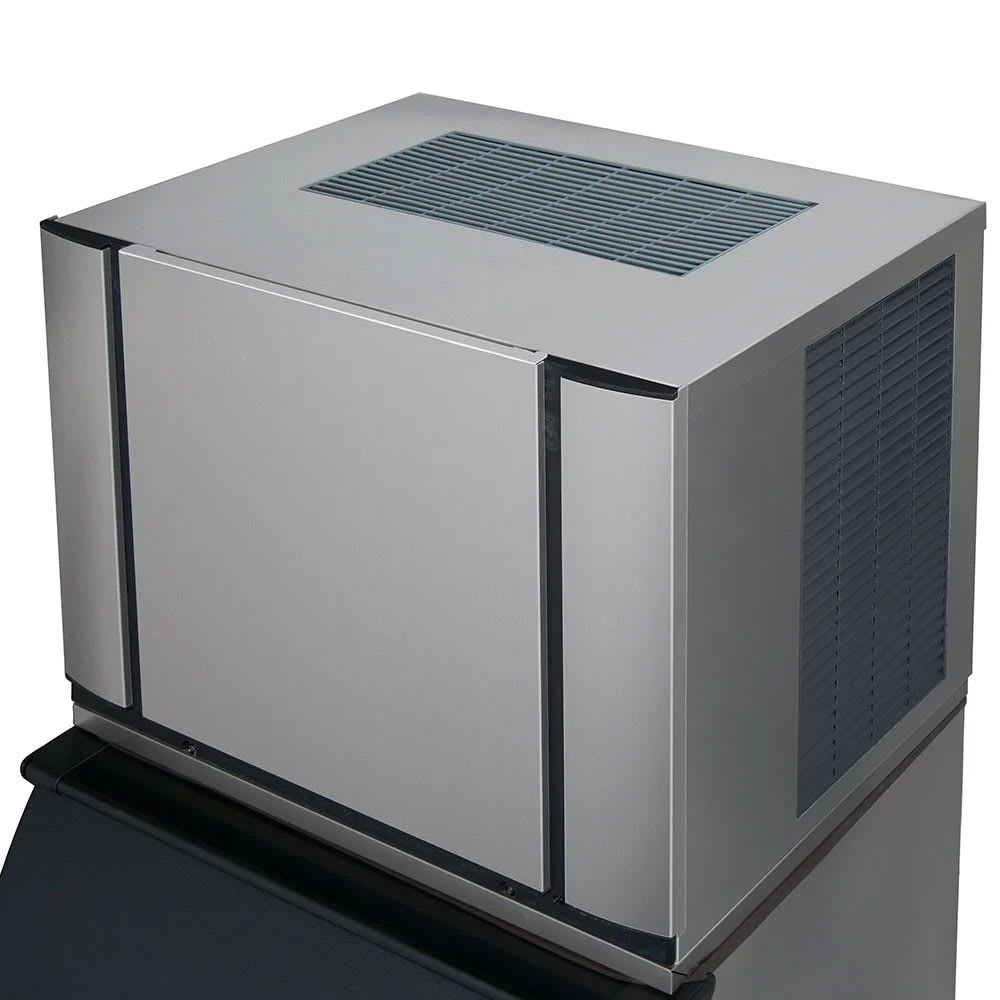

• Blows hot air from the side and top for installation against walls and equipment
• Smart Harness control board provides digital diagnostics and access to components
• Built-in antimicrobial agent slows bacteria growth between cleanings

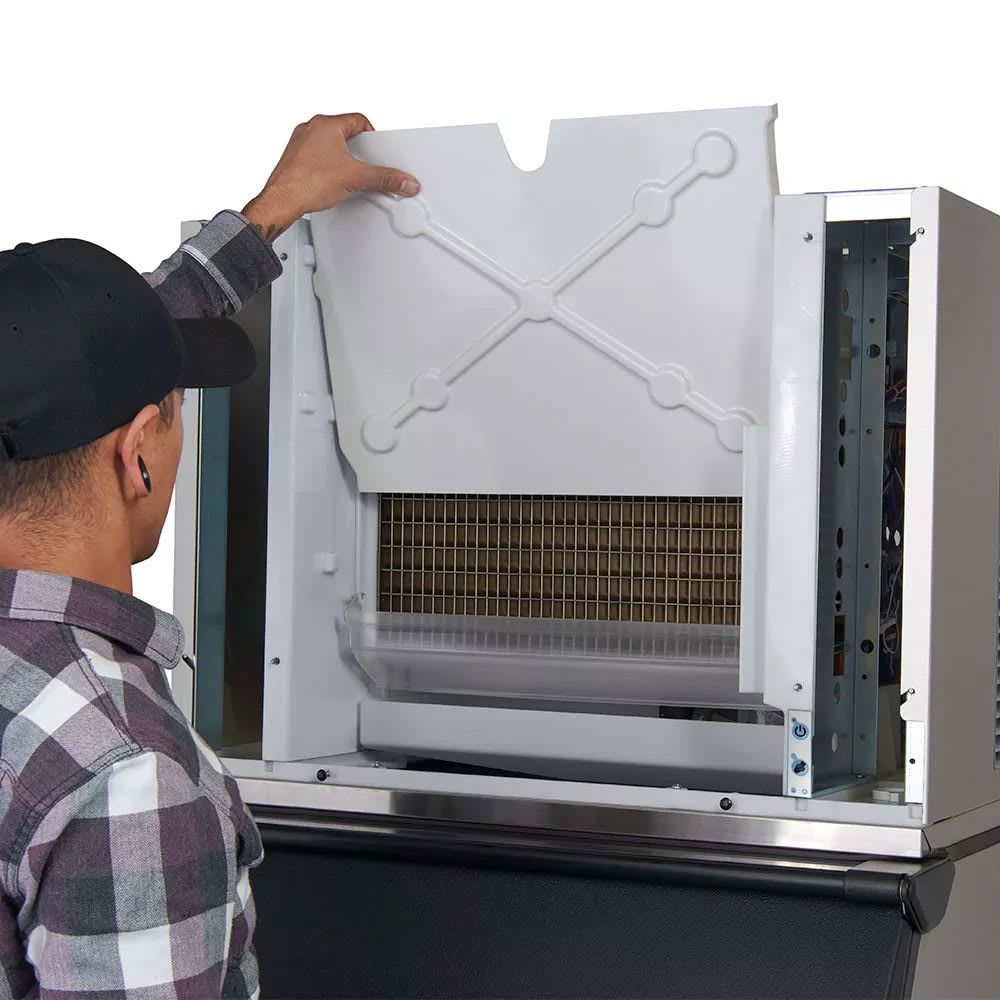

• Plastic food zone cleans quickly
• LED lights alert the operator when issues arise

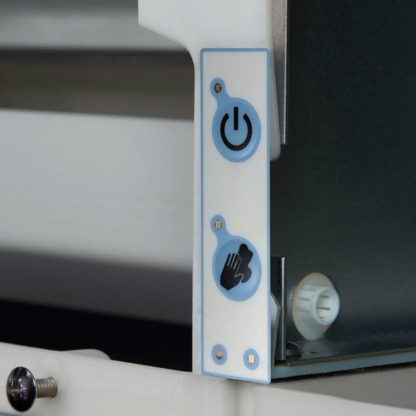

• Cleaning process runs with the touch of a button
• 6,252 BTU
• Required ambient air temperature: 50-110 degrees F
• Required incoming water temperature: 40-110 degrees F
• Required incoming water pressure: 20-80 PSI
• Half-cube ice size: ³/₈ in. x ⁷/₈ in. x ⁷/₈ in.

Dimensions and Utilities

• 22.25 in. W x 24.25 in. D x 21.25 in. H
• 17.8 A, 5.87 kW
• 115 V/60 Hz/1 ph

Warranty Offer

Pair your Ice-O-Matic ice maker with an OEM filter at purchase and change the cartridge regularly to get a 7-year evaporator warranty.

Elevation Series Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 22″ W, approximately 561 lb production/24 hours at 70°/50° (432 lb at 90°/70°), half-size cubes, Agion built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 115v/60/1-ph, 17.8 amps, cULus, NSF, CE
