Description

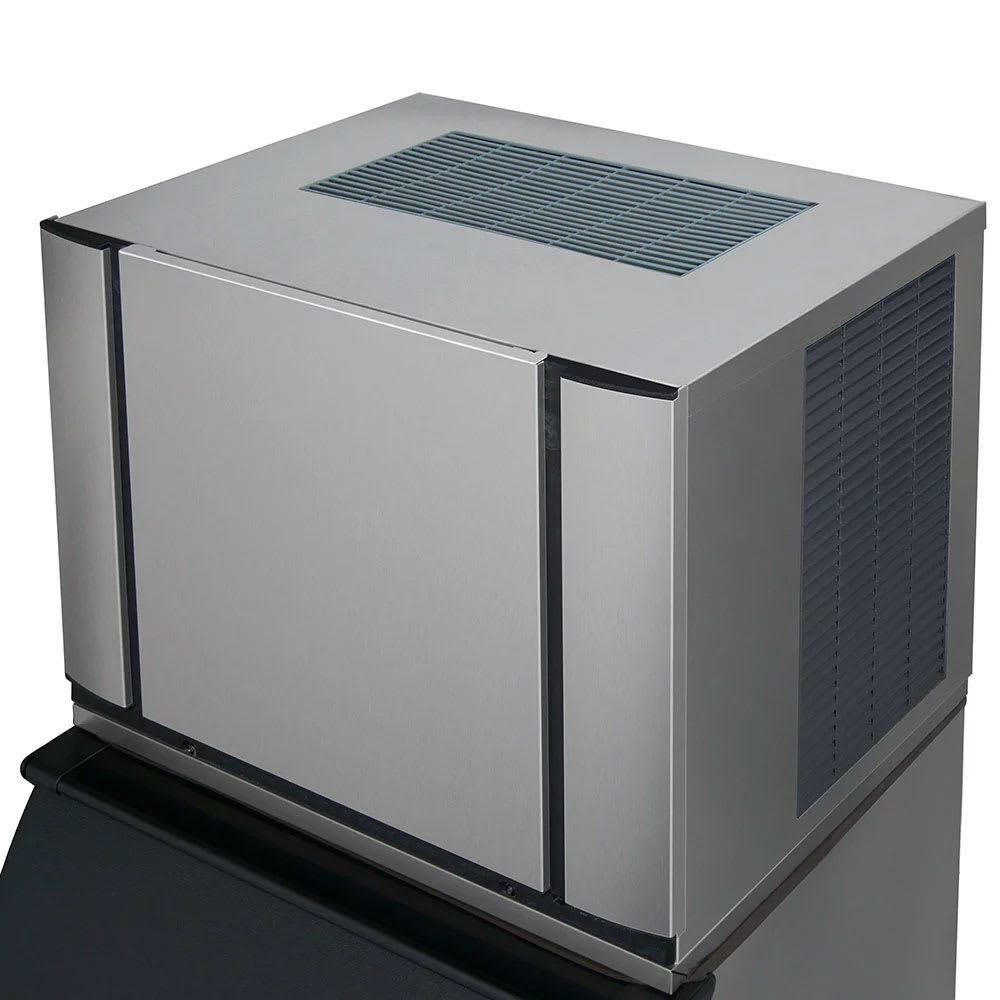

Ice-O-Matic CIM0520FW Description
The Ice-O-Matic CIM0520FW ice maker is a water-cooled system that connects to an establishment’s existing water system to produce ice. It makes full-cube ice, which is popular for drinks for its presentation value and slow melting rate, and its compact design takes up minimal space to offer flexibility for areas with space constraints.
The Ice-O-Matic CIM0520FW full-cube ice machine features Agion antimicrobial protection, adding a layer of defense against bacterial buildup to keep the ice maker sanitary. Its one-touch descaling functionality also works to combat contaminants inside the head. Before cleaning in a commercial dishwasher, the maker’s internal components can be conveniently snapped out.
Ice Maker
- Part of the Elevation Series
- Replaces ICE-0520FW
- 586-lb. maximum daily ice production
- 533-lb. daily ice production at 90 degrees F air and 70 degrees F water
- Water-cooled system
- Produces full-cube ice
- Narrow design
- Agion antimicrobial protection protects maker from bacterial buildup
- Dual exhaust system vents air from side and top to decrease exhaust obstruction
- Smart LED light indicates head status and signals staff when cleaning is required

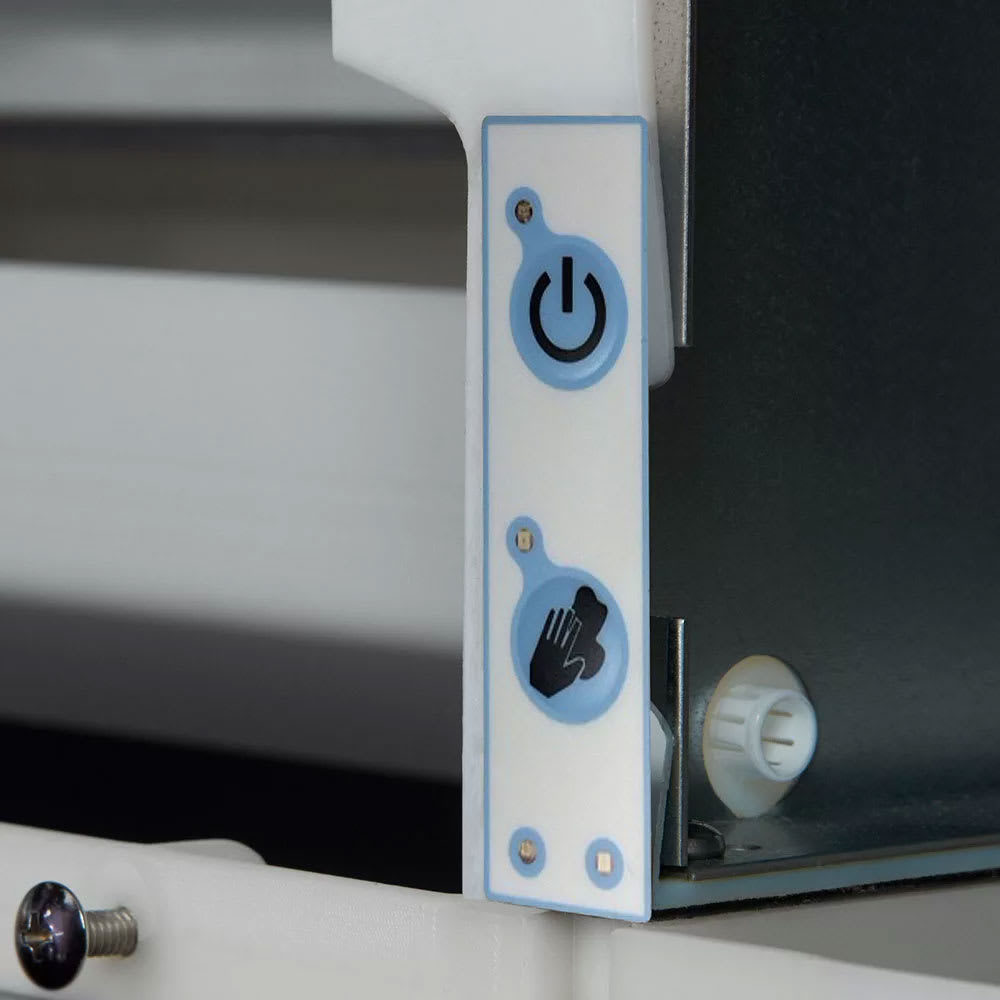

- 1-touch descaling/sanitization streamlines cleaning
- Plastic food zone

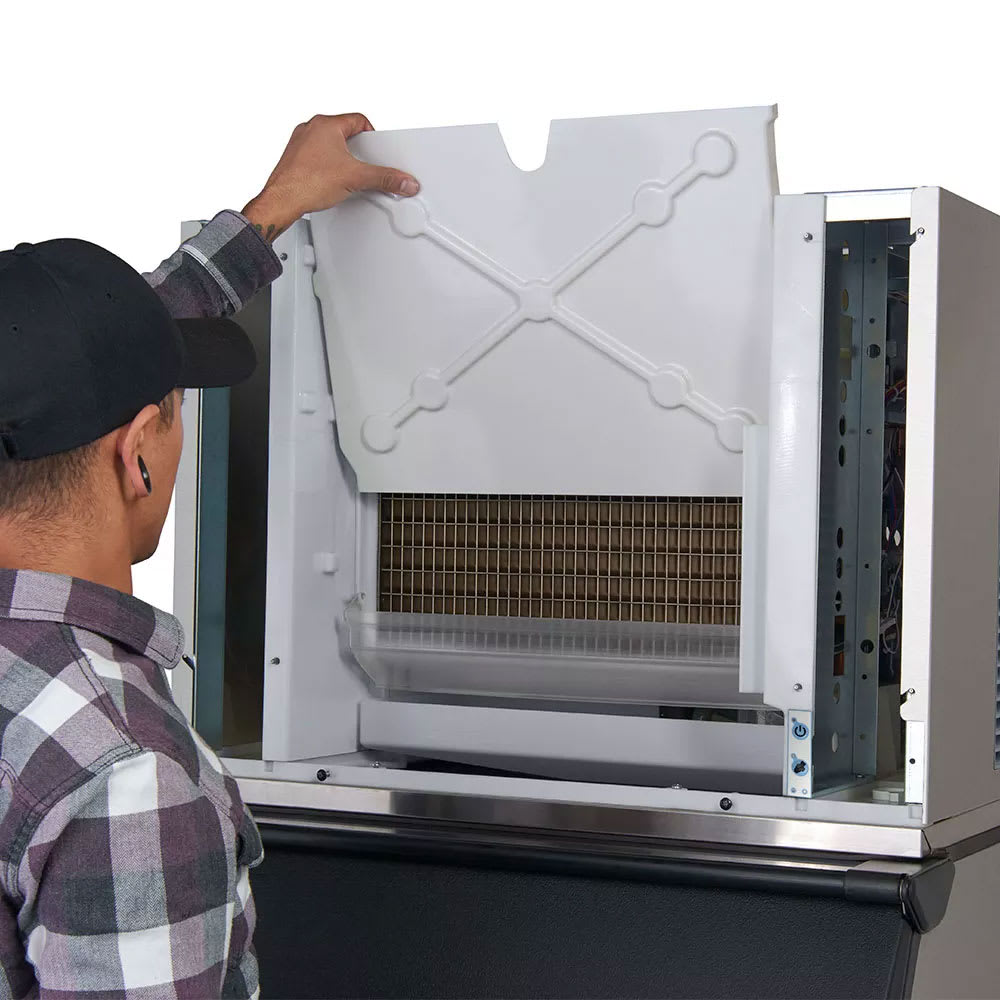

- Components can be removed and cleaned in dishmachine
- Universal Smart Harness control board
- Full-cube size: 7/8 in. x 7/8 in. x 7/8 in.
- Ideal ambient air temperature: 50-100 degrees F
- Ideal incoming water temperature: 40-100 degrees F
- Ideal incoming water pressure: 20-80 PSI
- 6,252 BTU heat transfer capacity
Dimensions & Utilities
- 22.25 in. W x 24.25 in. D x 21.25 in. H
- 17.4 A, 4.70 kW
- 115 V/60 Hz/1 ph
Elevation Series Modular Cube Ice Maker, water-cooled, self-contained condenser, dual exhaust top/side air discharge, 22″ W, approximately 586 lb production/24 hours at 70°/50° (533 lb at 90°/70°), full-size cubes, Agion built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 115v/60/1-ph, 17.4 amps, cULus, NSF, CE
