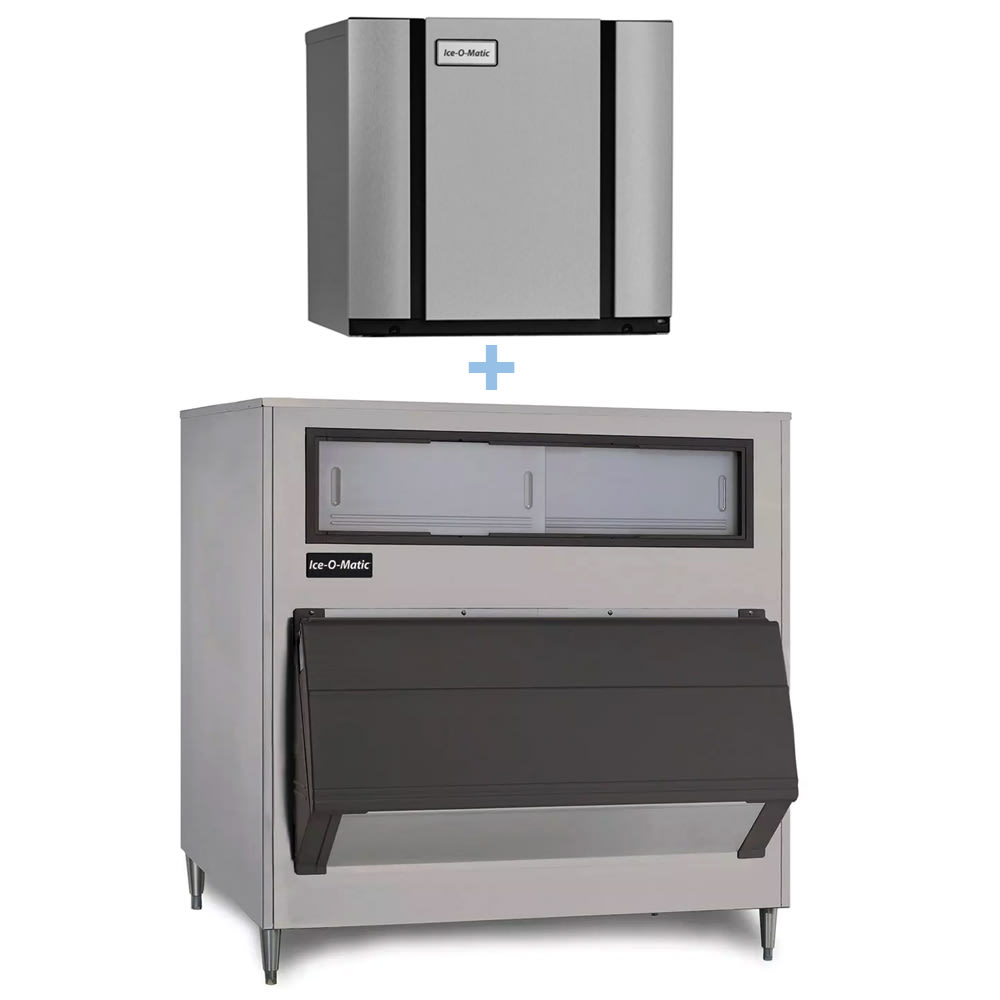

Ice-O-Matic CIM0520FA/B1325-60 561 lb Full Cube Ice Maker w/ Bin – 1325 lb Storage, Air Cooled, 115v

The Ice-O-Matic CIM0520FA/B1325-60 ice maker and bin has a dual exhaust system that releases hot air from the side as well as the top, splitting venting in order to reduce potential exhaust blockage. A one-touch system handles descaling, decreasing user labor and simplifying operations. The head features snap-out components that can be cleaned in a dishwasher and quickly returned to service.

The Ice-O-Matic CIM0520FA/B1325-60 air-cooled ice machine and bin holds as much as 1,325 pounds of ice to help establishments keep up with customer demand. Made of stainless steel, the bin holds up well against dents and scrapes, and to improve overall sanitation, its poly liner resists corrosion.

Ice Maker

• Part of the Elevation Series
• 561-lb. maximum daily ice production
• 432-lb. daily ice production at 90 degrees F air and 70 degrees F water
• Air-cooled system
• Produces full-cube ice
• Narrow design maximizesspace
• Dual exhaust system releases air from top and side to minimize airflow obstruction
• Smart LED light alerts users of machine status and cleaning needs
• PURE ICE antimicrobial defense
• 1-touch descaling/sanitization
• Plastic food zone reduces residue buildup
• Snap-out components can be put through warewasher
• Universal Smart Harness control board offers convenient universal components, common configuration, access, and digital diagnostics
• Full-cube size: ⁷/₈ in. x ⁷/₈ in. x ⁷/₈ in.
• Ideal ambient air temperature: 50-100 degrees F
• Ideal incoming water temperature: 40-100 degrees F
• Ideal incoming water pressure: 20-80 PSI
• 6,252-BTU heat transfer capacity
• Ideal clearance: 6 in. for air intake and exhaust

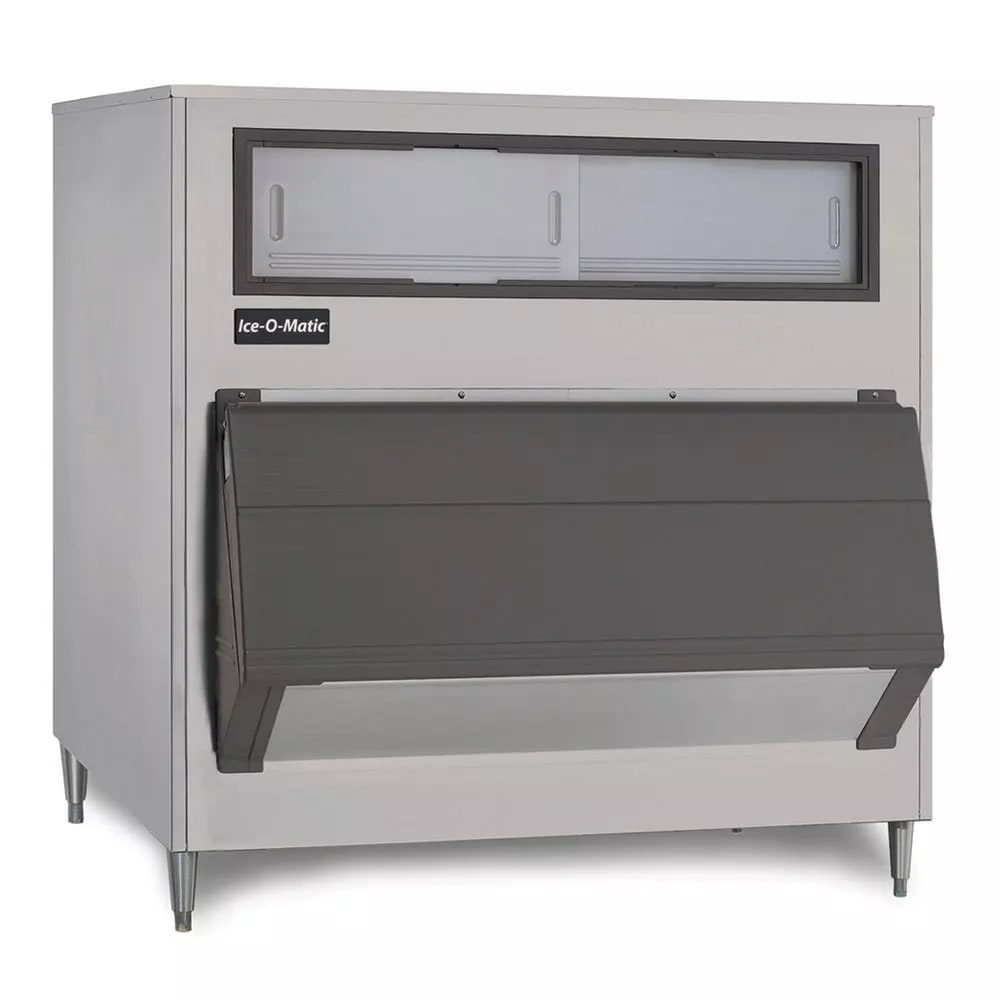

Ice Bin

• 1,325-lb. bin capacity
• 42-cu.-ft. holding capacity
• Stainless steel construction withstands rusting, scraping, and corrosion
• Poly bin liner for resistance to corrosion
• Ice shield regulates flow to decrease spills
• Stay-open door helps facilitate ice retrieval

Dimensions & Utilities

Ice Maker

• 22.25 in. W x 24.25 in. D x 21.25 in. H
• 17.8 A, 5.87 kW
• 115 V/60 Hz/1 ph

Ice Bin

• 60 in. W x 31 in. D x 56 in. H

Elevation Series Modular Cube Ice Maker w/ Bin, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 22″ W, approximately 561 lb production/24 hours at 70°/50° (432 lb at 90°/70°), full-size cubes, PURE ICE built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 115v/60/1-ph, 17.8 amps, cULus, NSF, CE; Ice Bin: 1325 lb storage capacity, 60″W x 31″D x 56″H, stainless steel construction, first in first out ice management, corrosion resistant Poly Liner, heavy duty “stay open” door for easy one hand access, ice shield controls flow & reduces spills, NSF
