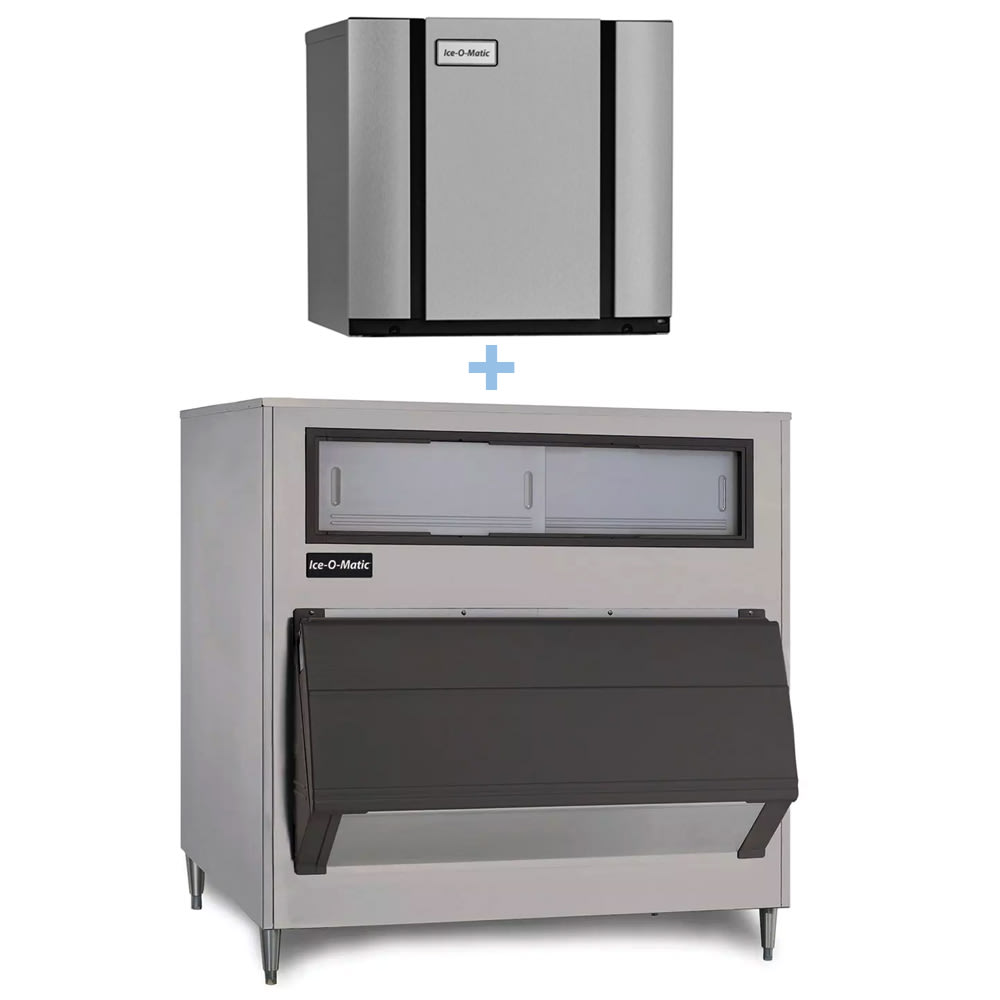

Ice-O-Matic CIM0520FA/B1000-48 561 lb Full Cube Ice Maker w/ Bin – 1000 lb Storage, Air Cooled, 115v

The Ice-O-Matic CIM0520FA/B1000-48 ice maker and bin produces full cube ice, an excellent variety for various beverage applications. Its 22-inch width gives the machine a narrow profile that takes up minimimal space and offers a convenient option for venues or establishments with limited room. Dishwasher-friendly components in the head snap out and a dual exhaust system vents air out the side and top to reduce exhaust obstruction.

Great for kitchens, hotels, and other areas, the Ice-O-Matic CIM0520FA/B1000-48 air-cooled ice machine and bin can hold as much as 1,000 pounds of ice. It’s made of stainless steel, a hardy metal that resists corrosion, rusting, and scratching. The door is a stay-open unit in order to add convenience to unloading.

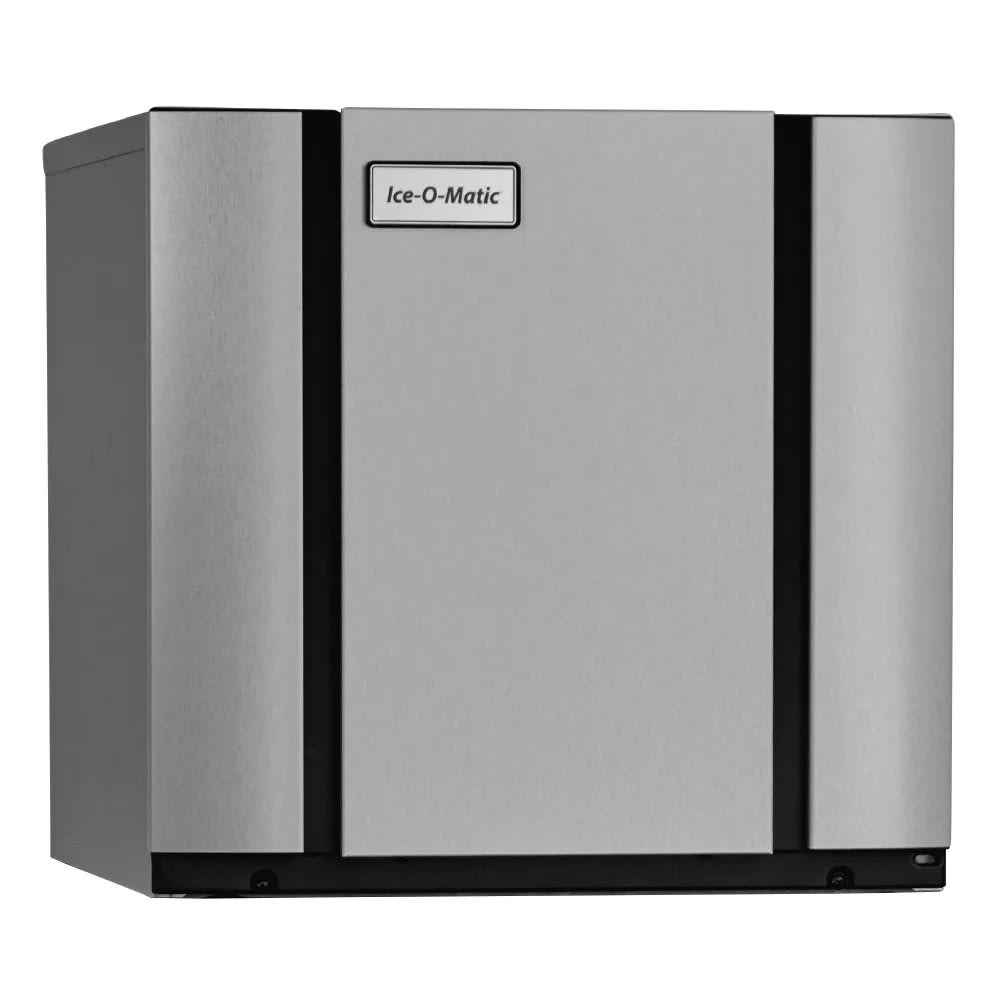

Ice Maker

• Part of the Elevation Series
• 561-lb. maximum daily ice production
• 432-lb. daily ice production at 90 degrees F air and 70 degrees F water
• Air-cooled system
• Produces full-cube ice
• Narrow design saves space in cramped areas
• Dual exhaust system releases hot air from top and side to streamline installation
• Smart LED light updates users on machine status and cleaning needs
• PURE ICE antimicrobial defense
• 1-touch descaling/sanitization
• Plastic food zone reduces areas where food residue can buildup
• Snap-out components can be cleaned in dishmachine
• Universal Smart Harness control board offers optimized digital diagnostics, access, universal components, and common configuration
• Full cube size: ⁷/₈ in. x ⁷/₈ in. x ⁷/₈ in.
• Ideal ambient air temperature: 50-100 degrees F
• Ideal incoming water temperature: 40-100 degrees F
• Ideal incoming water pressure: 20-80 PSI
• 6,252-BTU heat transfer capacity
• Ideal clearance: 6 in. for air intake and exhaust

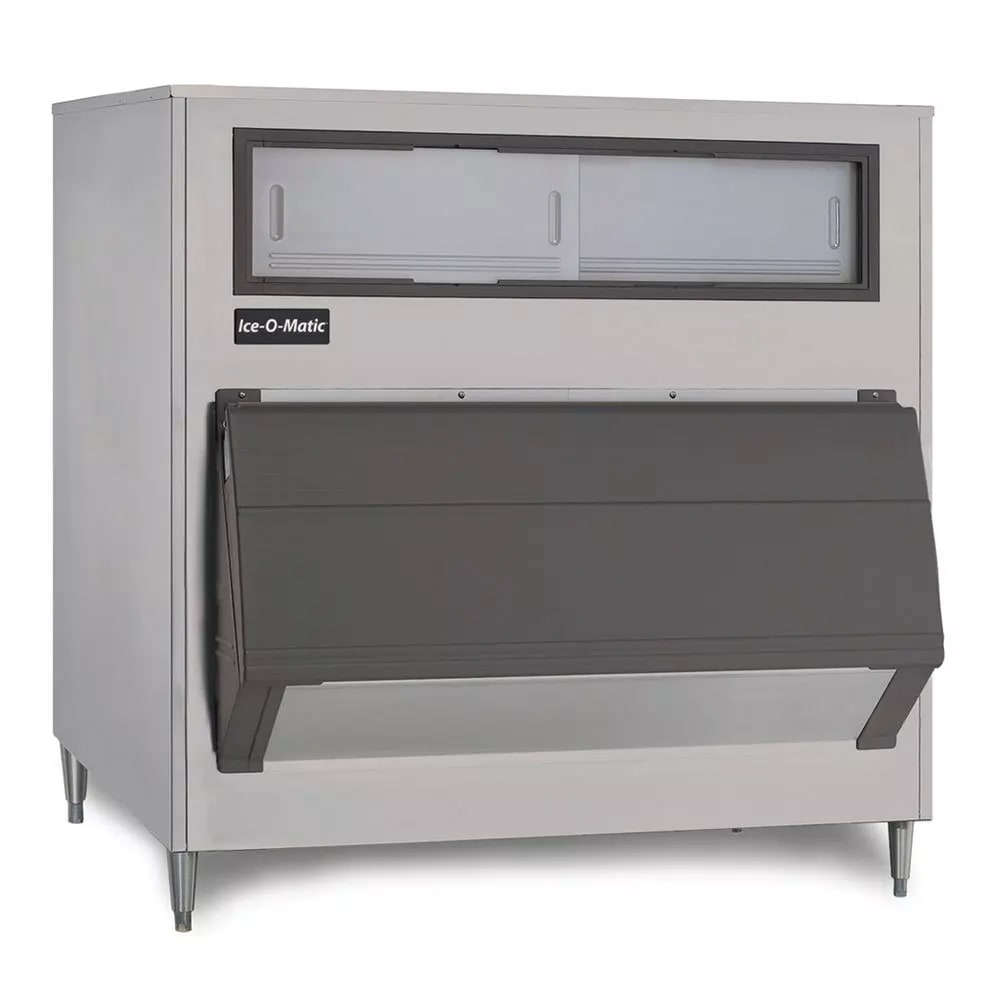

Ice Bin

• 1,000-lb. bin capacity
• 31.9-cu.-ft. holding capacity
• Stainless steel construction resists corrosion, rusting, and scraping
• Poly bin liner resists corrosion
• Ice shield decreases spills by controlling ice flow
• Stay-open door streamlines ice retrieval

Dimensions & Utilities

Ice Maker

• 22.25 in. W x 24.25 in. D x 21.25 in. H
• 17.8 A, 5.87 kW
• 115 V/60 Hz/1 ph

Ice Bin

• 48 in. W x 31 in. D x 56 in. H

Elevation Series Modular Cube Ice Maker w/ Bin, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 22″ W, approximately 561 lb production/24 hours at 70°/50° (432 lb at 90°/70°), full-size cubes, PURE ICE built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 115v/60/1-ph, 17.8 amps, cULus, NSF, CE; Ice Bin: 1000 lb storage capacity, 48″W x 31″D x 56″H, stainless steel construction, first in first out ice management, corrosion resistant Poly Liner, heavy duty “stay open” door for easy one hand access, ice shield controls flow & reduces spills, NSF
