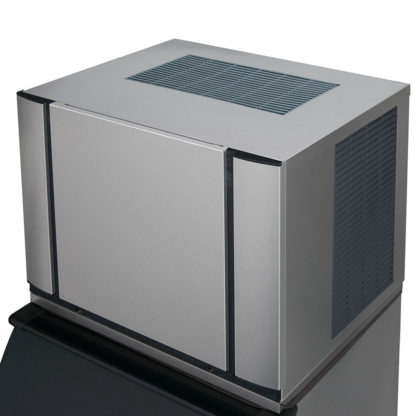

Ice-O-Matic CIM0436HA 30″ Elevation Series Half Cube Ice Machine Head – 465 lb/24 hr, Air Cooled, 208/230v/1ph

The Ice-O-Matic CIM0436HA ice maker head makes half-size cubes of ice and can make anywhere from 270 to 465 pounds of ice per day depending on environmental conditions. Meaning it just needs to be plugged in to begin operation, the air-cooled condenser is self-contained. Its LED display provides status updates about the unit, and because it doesn’t include a bin or dispenser, one will have to be purchased separately for use.

The food zone in the Ice-O-Matic CIM0436HA half-cube ice maker is made of plastic, and its components are removable for dishwasher cleaning. By pushing a single button, users can enable the descaling and sanitizing process to keep the unit clean, and to prevent rapid growth of bacteria, it’s protected with PURE ICE antimicrobial.

Product Details

• Part of the Elevation Series
• 465-lb. daily ice production
• 270-lb. daily ice production at 70-90 degrees F
• Makes half-size cubes
• Half-size cube size: ⁷/₈ in. W x ⁷/₈ in. D x ⁷/₈ in. H
• Self-contained condenser is air cooled
• LED display provides status updates

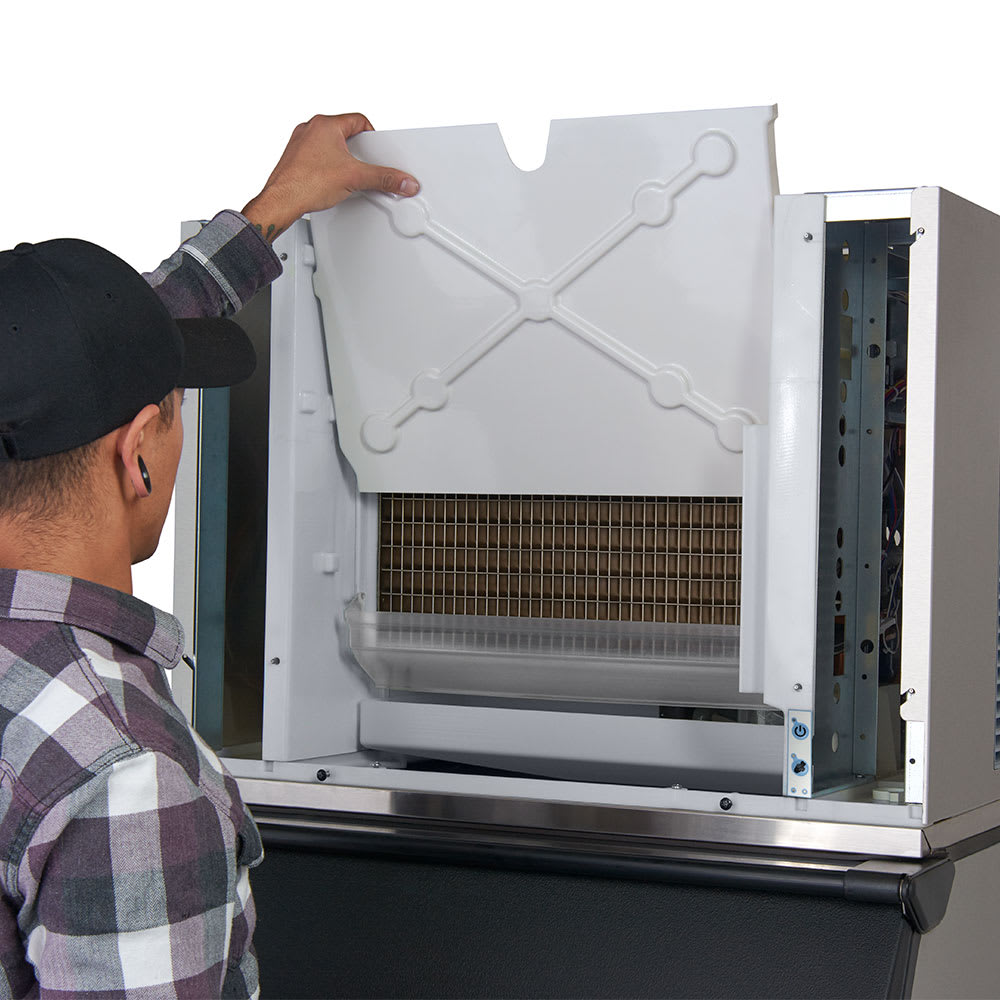

• Plastic food zone with removable, dishwasher-safe pieces

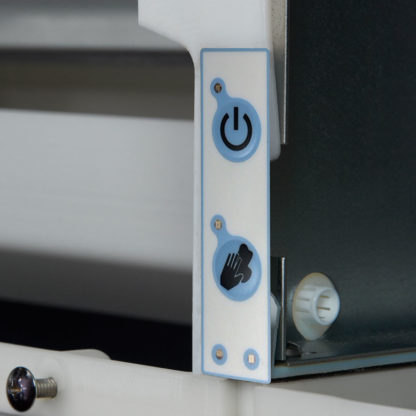

• Descaling and sanitizing activated with the push of a button
• PURE ICE antimicrobial slows microbial growth
• Ideal incoming water pressure: 20-80 PSIG
• Ideal incoming water temperature: 40-100 degrees F
• Ideal ambient temperature range: 50-100 degrees F
• 5,100-BTU heat transfer capacity

Dimensions & Utilities

• 30.25 in. W x 24.25 in. D x 21.25 in. H
• 6.3 A, 5.46 kW
• 208-230 V/60 Hz/1 ph

Elevation Series Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30″ W, approximately 465 lb production/24 hours at 70°/50° (270 lb at 90°/70°), half-size cubes, Agion built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 208-230v/60/1-ph, 6.3 amps, cULus, NSF, CE
