Ice-O-Matic CIM0436FW 30″ Elevation Series Full Cube Ice Machine Head – 500 lb/24 hr, Water Cooled, 208/230v/1ph

Producing full-size ice cubes, the Ice-O-Matic CIM0436FW ice machine head has a water-cooled condenser. Easing installation and reducing cross-contamination risks, this condenser is self-contained. When ambient temperatures are high, it makes close to 350 pounds of ice per day, though if conditions are ideal, it can make as much as 465 pounds daily. Slowing microbe growth, the unit has PURE ICE antimicrobial built into it.

The Ice-O-Matic CIM0436FW full-cube ice machine head can be cleaned with the push of a button, which starts the descaling and sanitizing process. The food zone components can be removed and placed in the dishwasher for cleaning. Providing status updates for monitoring, this unit has an LED display.

Product Details

• Part of the Elevation Series
• 465-lb. daily ice production
• 350-lb. AHRI daily ice production at 70-90 degrees F
• Makes full-size cubes
• Full-size cube size: ⁷/₈ in. W x ⁷/₈ in. D x ⁷/₈ in. H
• Self-contained, water-cooled condenser
• LED display provides status readout

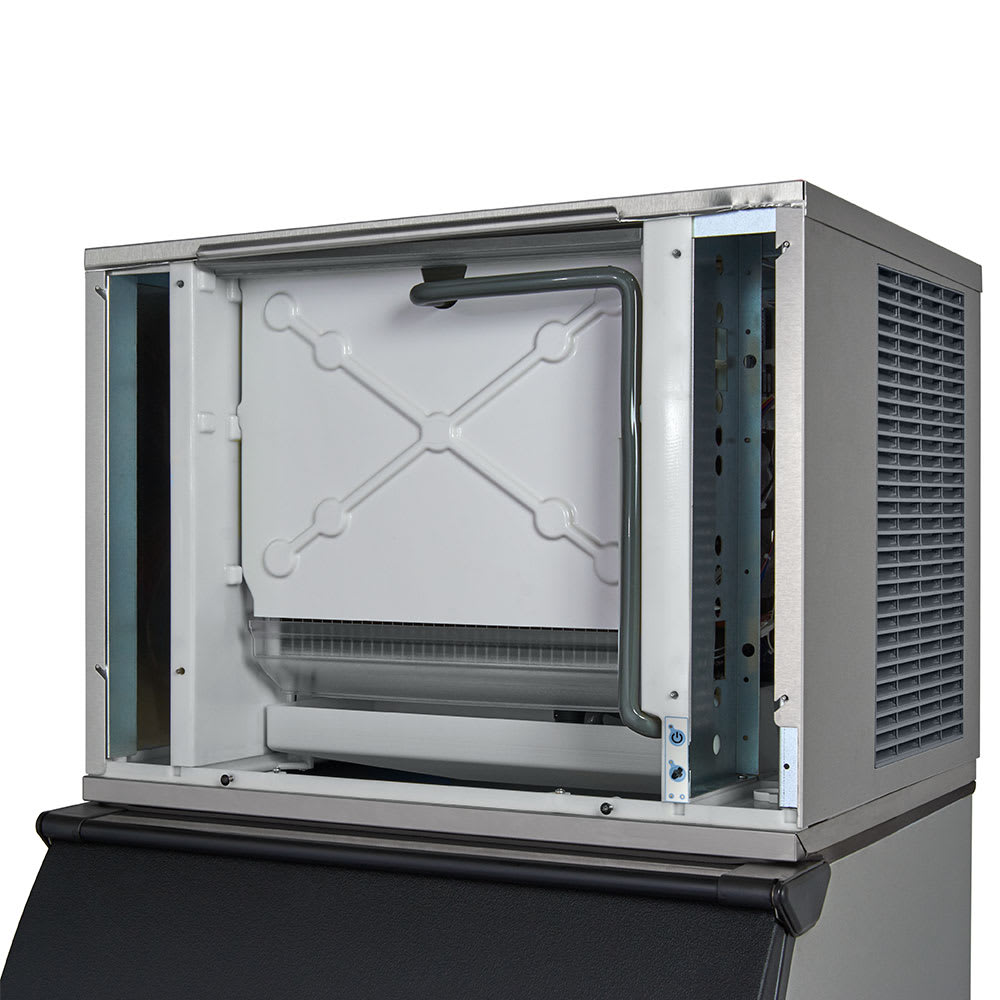

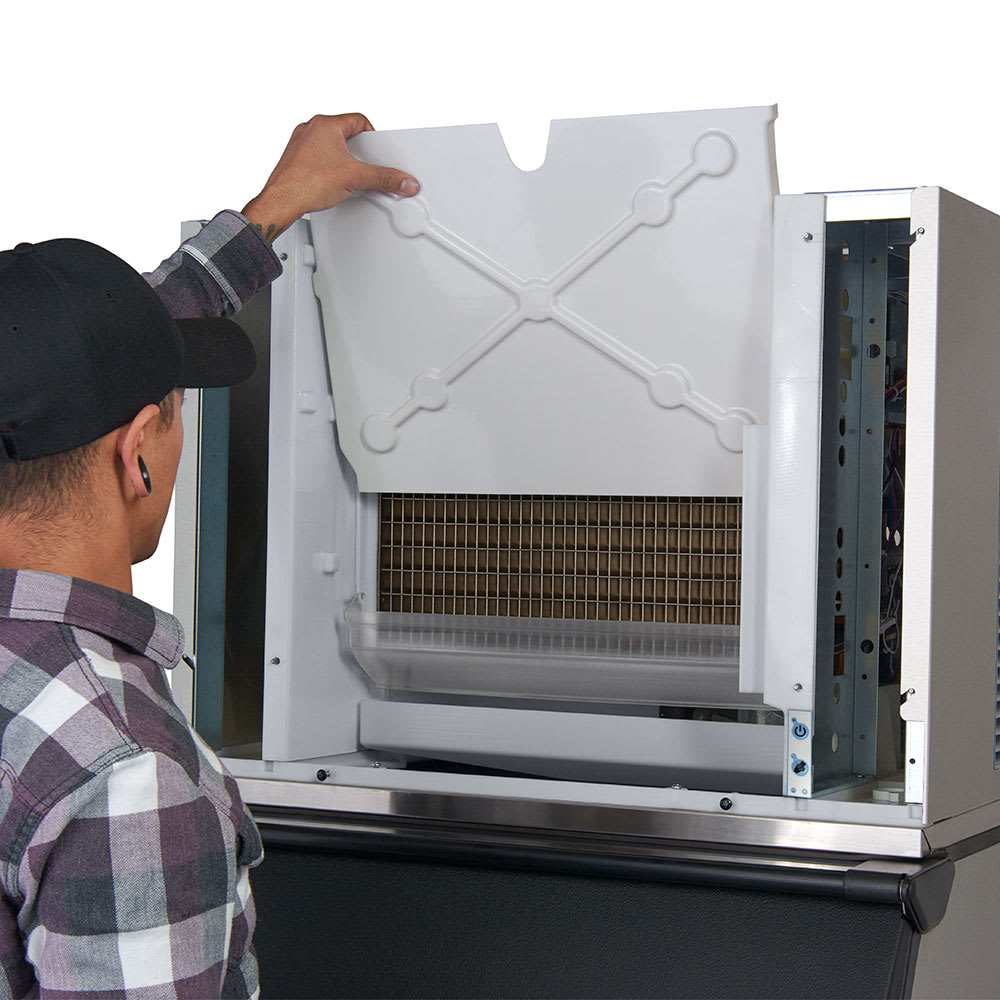

• Removable, snap-out dishwasher-safe food zone components
• Plastic food zone

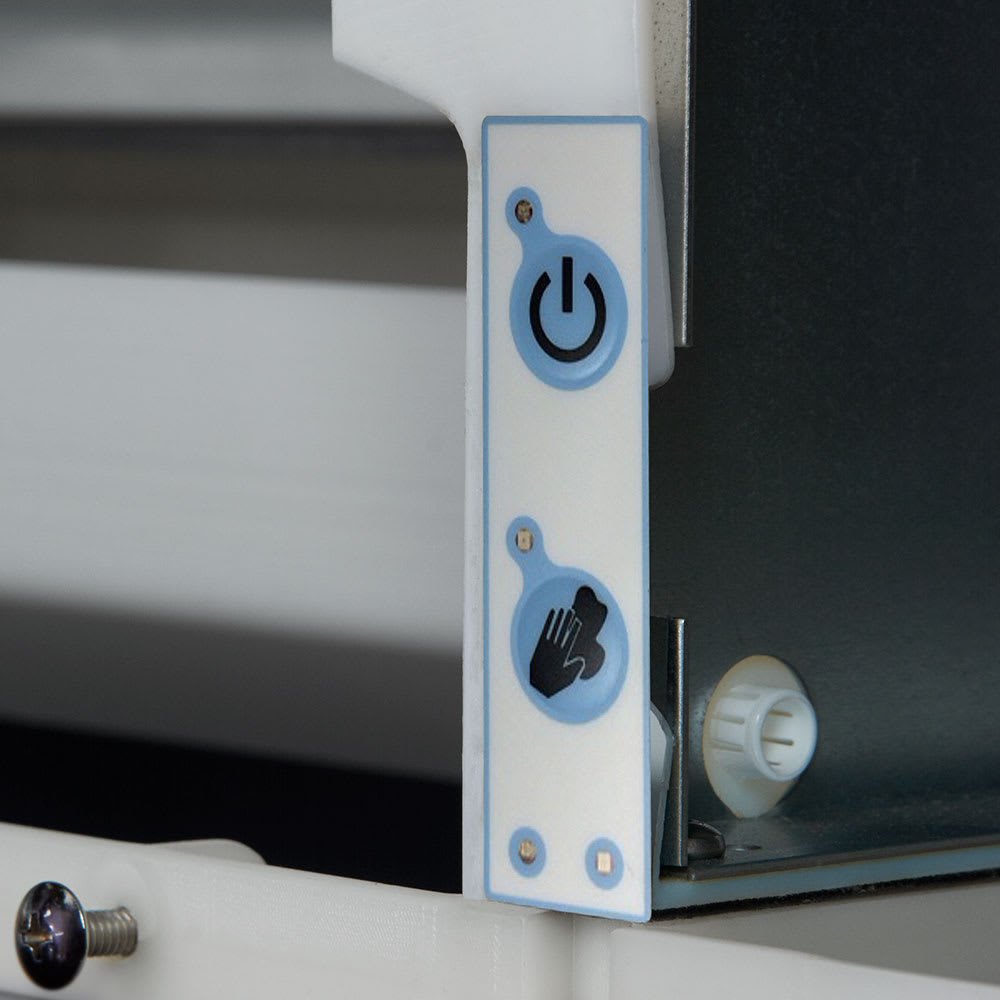

• Performs descaling and sanitizing with 1 button
• Built-in PURE ICE antimicrobial protection inhibits microbial growth
• Ideal incoming water pressure: 20-80 PSIG
• Ideal incoming water temperature: 40-100 degrees F
• Ideal ambient temperature range: 50-100 degrees F
• 5,100-BTU heat transfer capacity

Dimensions & Utilities

• 30.25 in. W x 24.25 in. D x 21.25 in. H
• 6.1 A, 4.37 kW
• 208-230 V/60 Hz/1 ph

Elevation Series Modular Cube Ice Maker, water-cooled, self-contained condenser, 30″ W, approximately 500 lb production/24 hours at 70°/50° (420 lb at 90°/70°), full-size cubes, Agion built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 208-230v/60/1-ph, 6.1 amps, cULus, NSF, CE
