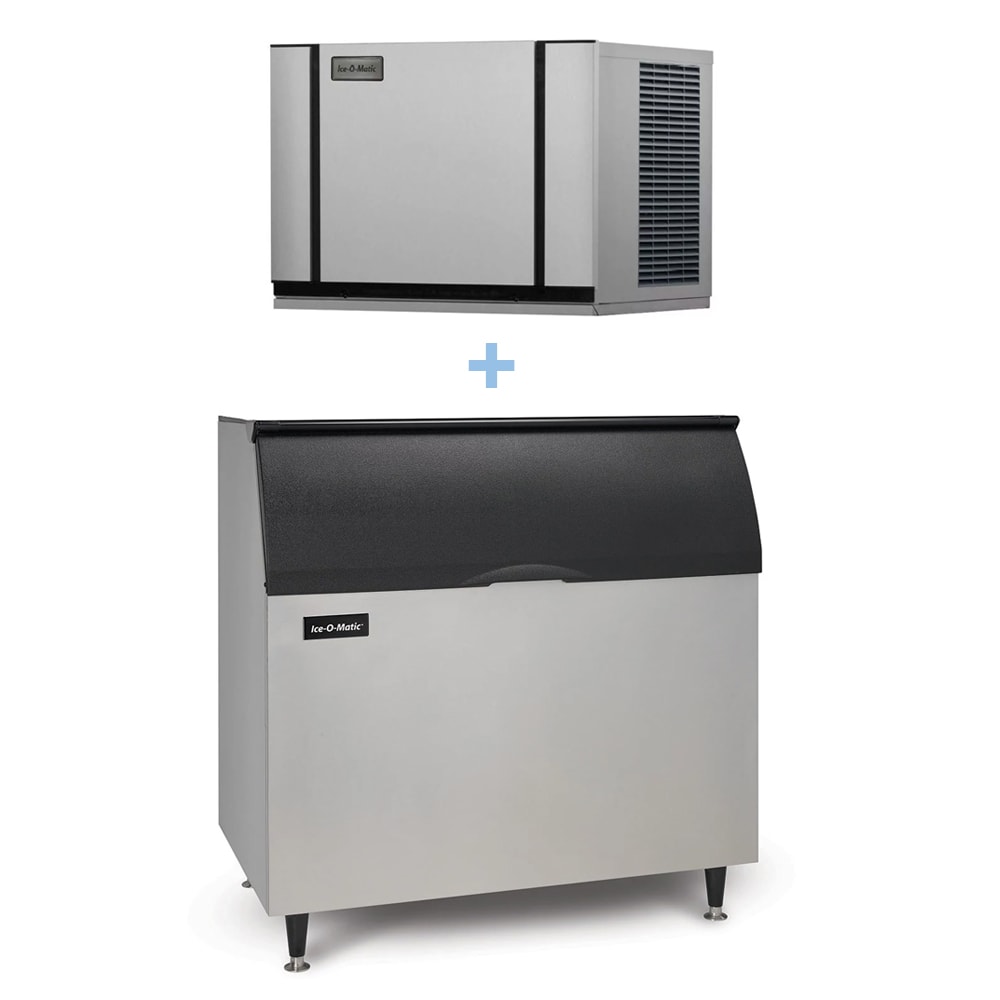

Ice-O-Matic CIM0430HA/B110PS 435 lb Half Cube Ice Maker w/ Bin – 854 lb Storage, Air Cooled, 115v

Simplifying installation, the Ice-O-Matic CIM0430HA/B110PS ice machine with bin has a self-contained, air-cooled condenser. It makes between 320 to 435 pounds of ice daily depending on environmental conditions, and the bin can hold 854 pounds for later use. Lined with polyethylene, the bin is corrosion resistant, while the exterior is made of durable aluminum. To slow the growth of bacteria, the head has PURE ICE antimicrobial protection.

To slow ice melting, the Ice-O-Matic CIM0430HA/B110PS half-cube ice maker with bin has foam insulation. It’s mounted on sturdy 6-inch legs, and the front door is sloped and hinged at the top to ease access. Providing status updates, this unit has an LED display, and to perform sanitizing and descaling measures, users must simply push a button.

Ice Maker Details

• Part of the Elevation Series
• 435-lb. daily ice production
• 320-lb. AHRI daily ice production at 70-90 degrees F
• Makes half-size cubes
• Half-size cube size: ³/₈ in. W x ⁷/₈ in. D x ⁷/₈ in. H
• Plastic food zone streamlines cleaning
• Components in the food zone are dishwasher safe
• Self-contained, air-cooled condenser
• PURE ICE antimicrobial slows bacterial growth
• LED display provides status updates
• Descaling and sanitizing performed with 1 touch
• Ideal incoming water pressure: 20-80 PSIG
• Ideal incoming water temperature: 40-100 degrees F
• Ideal ambient temperature range: 50-100 degrees F
• 5,100-BTU heat transfer capacity

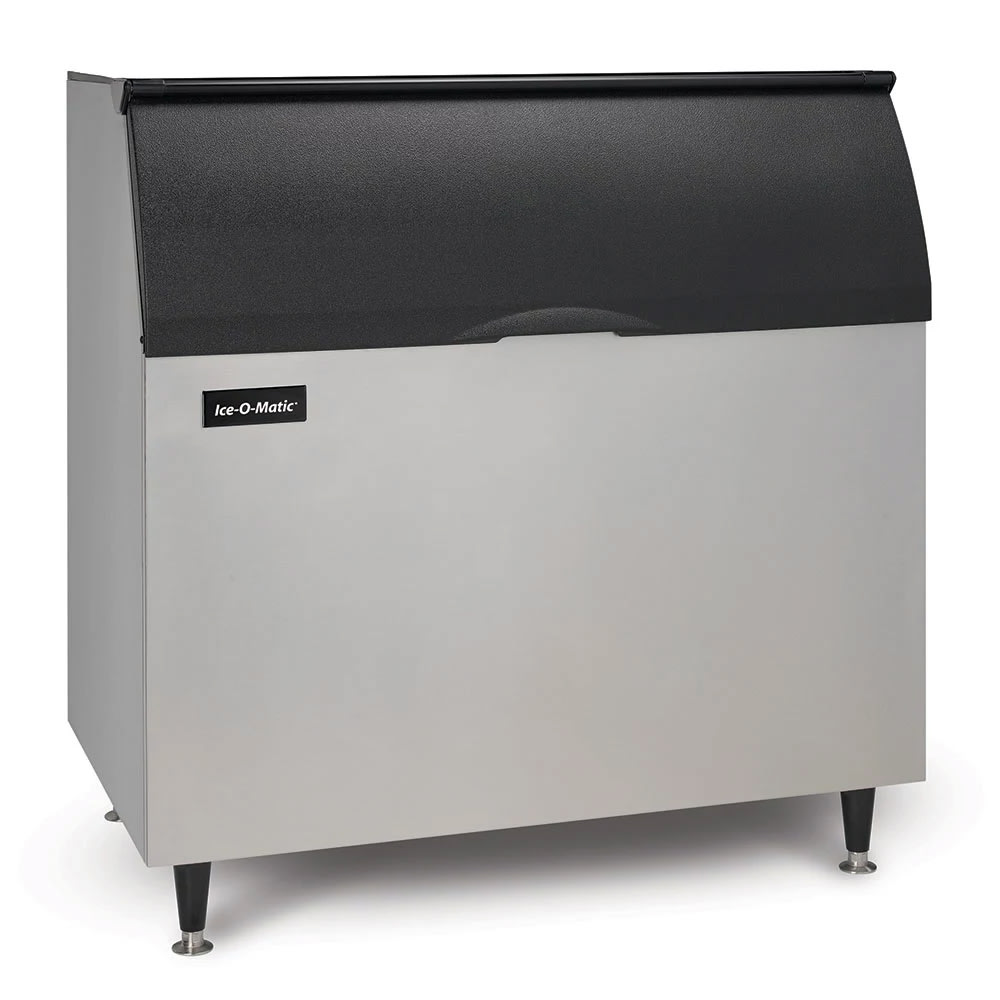

Ice Bin Details

• 854-lb. application capacity
• Resilient aluminum exterior
• Top-hinged door is sloped
• Corrosion-resistant polyethylene interior liner
• Foam insulation
• Mounted on adjustable 6-in. legs

Dimensions & Utilities

• Ice maker dimensions: 30.25 in. W x 24.25 in. D x 21.25 in. H
• Ice bin dimensions: 48 in. W x 31 in. D x 50 in. H
• 11 A, 5.43 kW
• 115 V/60 Hz/1 ph

Elevation Series Modular Cube Ice Maker w/ Bin, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30″ W, approximately 435 lb production/24 hours at 70°/50° (320 lb at 90°/70°), half-size cubes, PURE ICE built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 115v/60/1-ph, 11.0 amps, cULus, NSF, CE; Ice Bin w/ Filler Panels: 854 lb storage capacity, 48″W x 31″D x 50″H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable stainless finish exterior, 6″ legs, NSF
