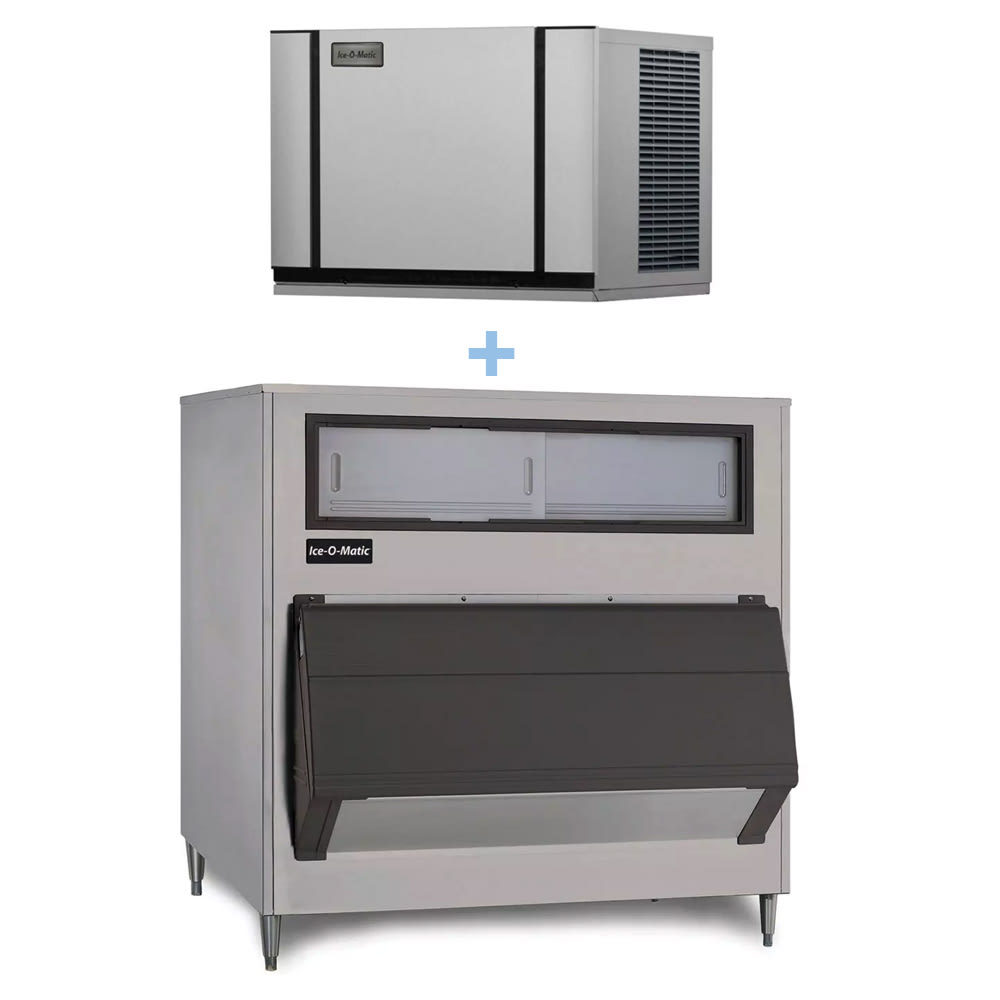

Ice-O-Matic CIM0430HA/B1000-48 435 lb Half Cube Ice Maker w/ Bin – 1000 lb Storage, Air Cooled, 115v

To streamline cleaning, the Ice-O-Matic CIM0430HA/B1000-48 half-cube ice maker with bin has removable food zone components that are dishwasher safe. The unit is protected with PURE ICE antimicrobial to slow the growth of bacteria, while descaling and sanitizing cycles are controlled with the push of a button. This ice maker is air cooled, and the condenser is self-contained to streamline installation and prevent cross contamination.

Depending on ambient operating conditions, the Ice-O-Matic CIM0430HA/B1000-48 ice machine with bin can make from 320 to 435 pounds of ice per day. For later use, the bin holds 1,000 pounds of ice, and its poly liner provides resistance to corrosion. While ice is being scooped, the door can be propped open to prevent it from slamming on users, and to prohibit ice from spilling, the bin has an ice shield.

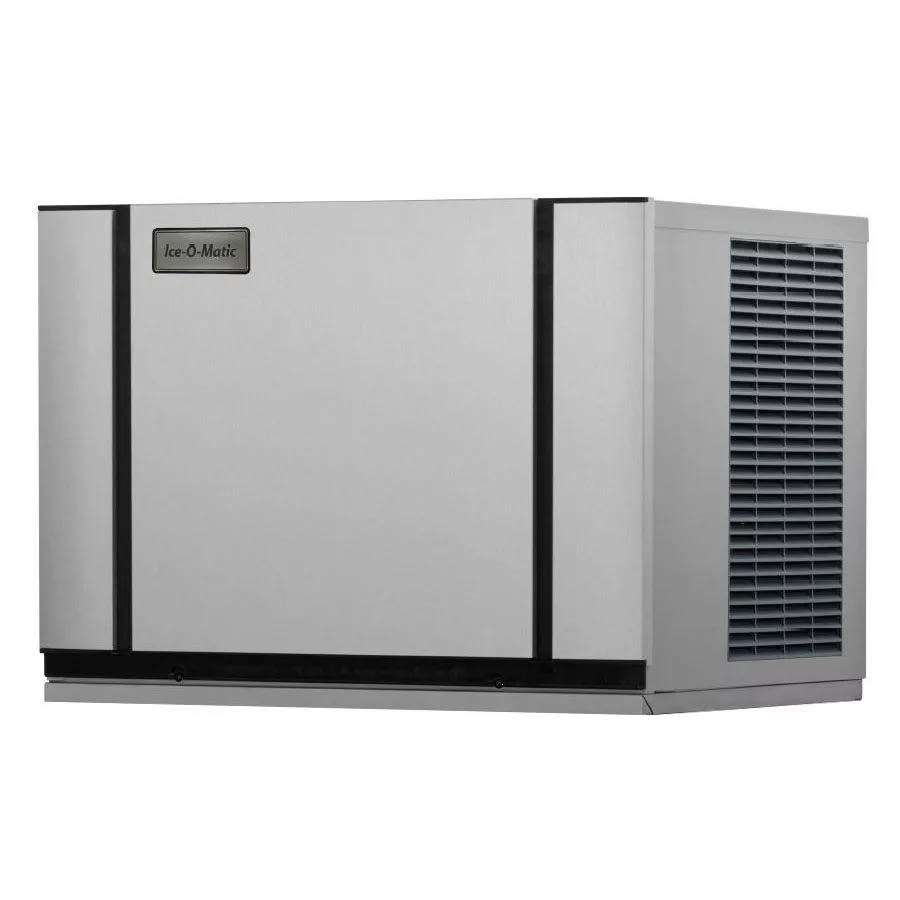

Ice Maker Details

• Part of the Elevation Series
• 435-lb. daily ice production
• 320-lb. AHRI daily ice production at 70-90 degrees F
• Makes half-size cubes
• Half-size cube size: ³/₈ in. W x ⁷/₈ in. D x ⁷/₈ in. H
• Plastic food zone
• Removable, dishwasher-safe food zone components
• Condenser is self-contained and air cooled
• Bacterial growth slowed by PURE ICE antimicrobial
• LED status display provides updates
• 1-touch descaling and sanitizing controls
• Ideal incoming water pressure: 20-80 PSIG
• Ideal incoming water temperature: 40-100 degrees F
• Ideal ambient temperature range: 50-100 degrees F
• 5,100-BTU heat transfer capacity

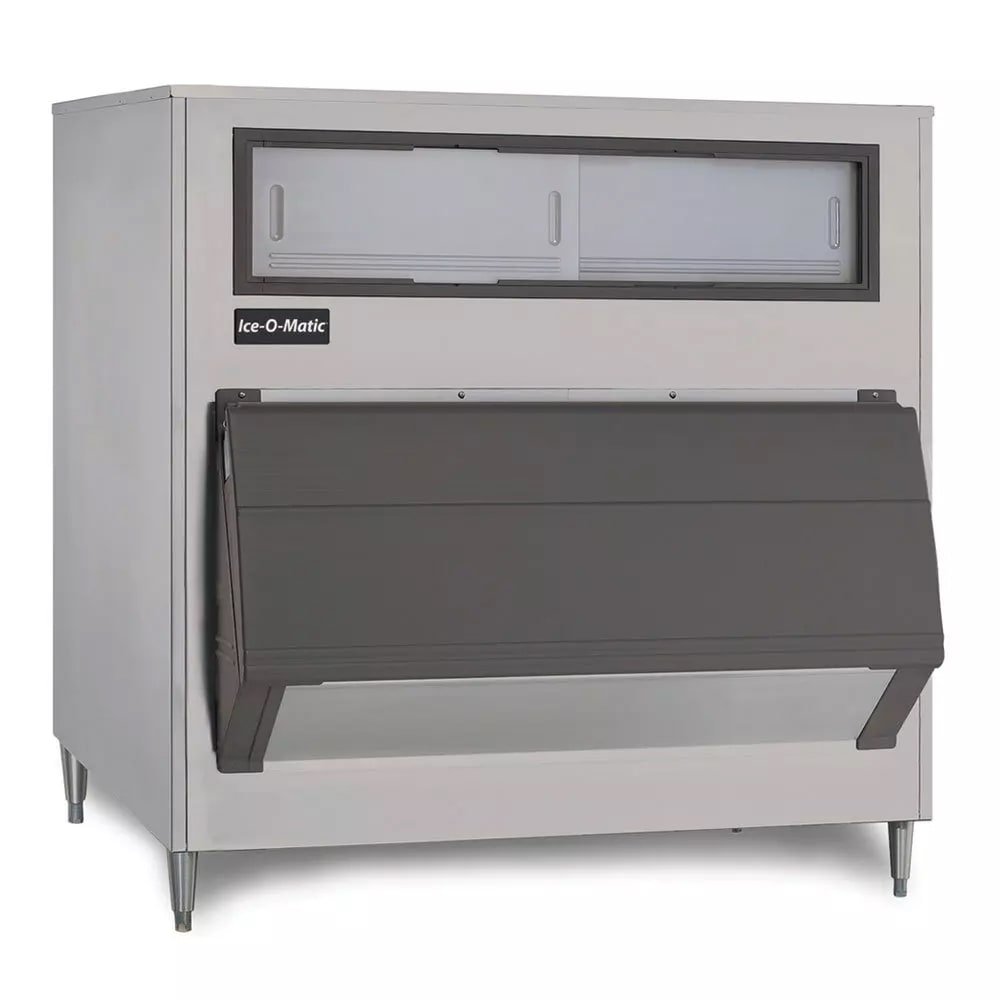

Ice Bin Details

• 1,000-lb. application capacity
• Durable stainless steel construction
• First-in, first-out ice managing
• Poly liner resists corrosion
• Stay-open door accessed by 1 hand
• Ice shield reduces spills
• Includes universal adapter kit

Dimensions & Utilities

• Ice maker dimensions: 30.25 in. W x 24.25 in. D x 21.25 in. H
• Ice bin dimensions: 48 in. W x 31 in. D x 56 in. H
• 11 A, 5.43 kW
• 115 V/60 Hz/1 ph

Elevation Series Modular Cube Ice Maker w/ Bin, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30″ W, approximately 435 lb production/24 hours at 70°/50° (320 lb at 90°/70°), half-size cubes, PURE ICE built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 115v/60/1-ph, 11.0 amps, cULus, NSF, CE; Ice Bin: 1000 lb storage capacity, 48″W x 31″D x 56″H, stainless steel construction, first in first out ice management, corrosion resistant Poly Liner, heavy duty “stay open” door for easy one hand access, ice shield controls flow & reduces spills, NSF
