Description

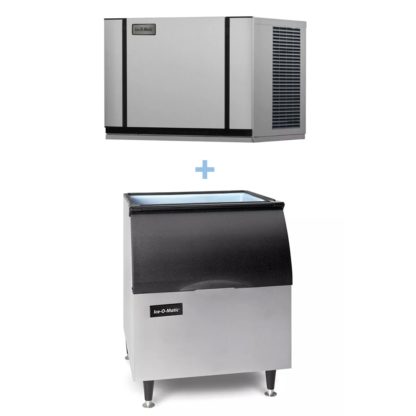

Ice-O-Matic CIM0430FA/B40PS
The Ice-O-Matic CIM0430FA/B40PS ice maker with bin makes a maximum of 435 pounds of ice per day in ideal conditions. It has PURE ICE antimicrobial protection to inhibit the growth of bacteria, and it performs sanitizing and descaling with the touch of a button. To clean the food zone components, they can be removed and placed in the dishwasher. An LED display provides a readout of the system’s current status, while a self-contained condenser cools the unit to streamline installation.
To prevent ice from melting, the Ice-O-Matic CIM0430FA/B40PS full-cube ice maker with bin has foam insulation. It holds 344 pounds of ice and is lined with polyethylene to resist corrosion. The exterior is made of aluminum to provide durability, and it’s positioned on sturdy 6-inch legs. For bin access, users can open the top-hinged sloped door.

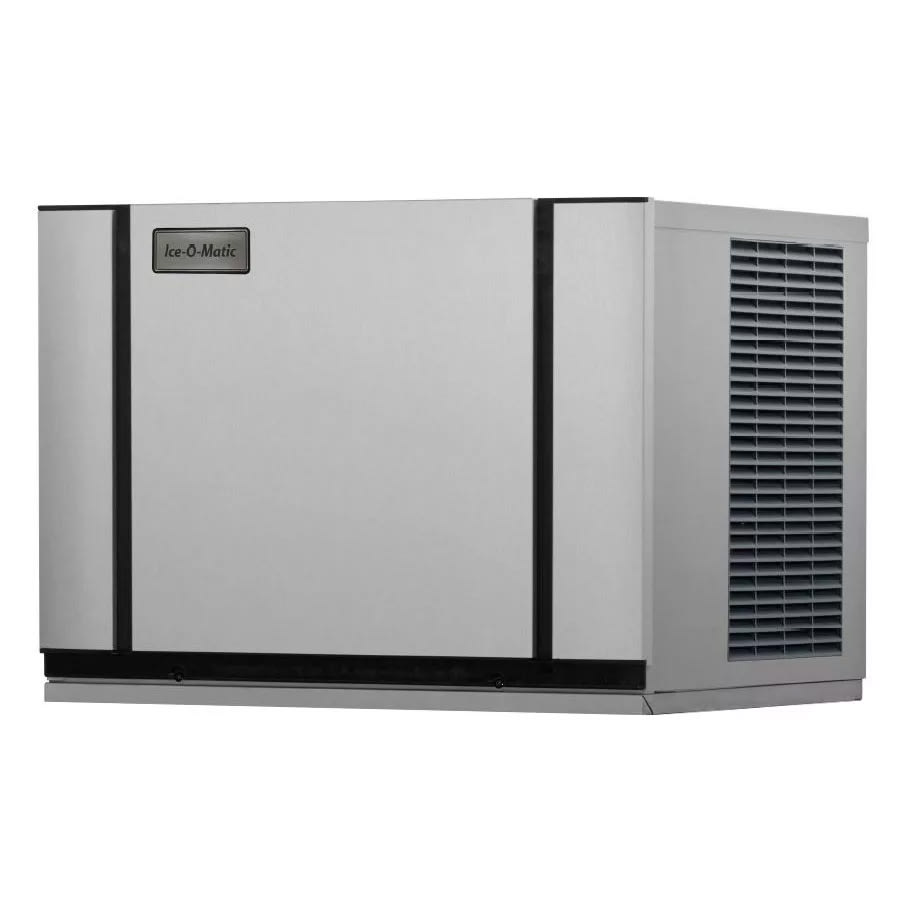

Ice Maker Details
- Part of the Elevation Series
- 435-lb. daily ice production
- 320-lb. AHRI daily ice production at 70-90 degrees F
- Makes full-size cubes
- Full-size cube size: 7/8 in. W x 7/8 in. D x 7/8 in. H
- Air-cooled, self-contained condenser
- Dual exhaust top/side air discharge
- PURE ICE antimicrobial agent
- LED status display
- 1 touch sanitizing and descaling
- Plastic food zone facilitates cleaning
- Dishwasher-safe food zone components
- Ideal incoming water pressure: 20-80 PSIG
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient temperature range: 50-100 degrees F
- 5,100-BTU heat transfer capacity

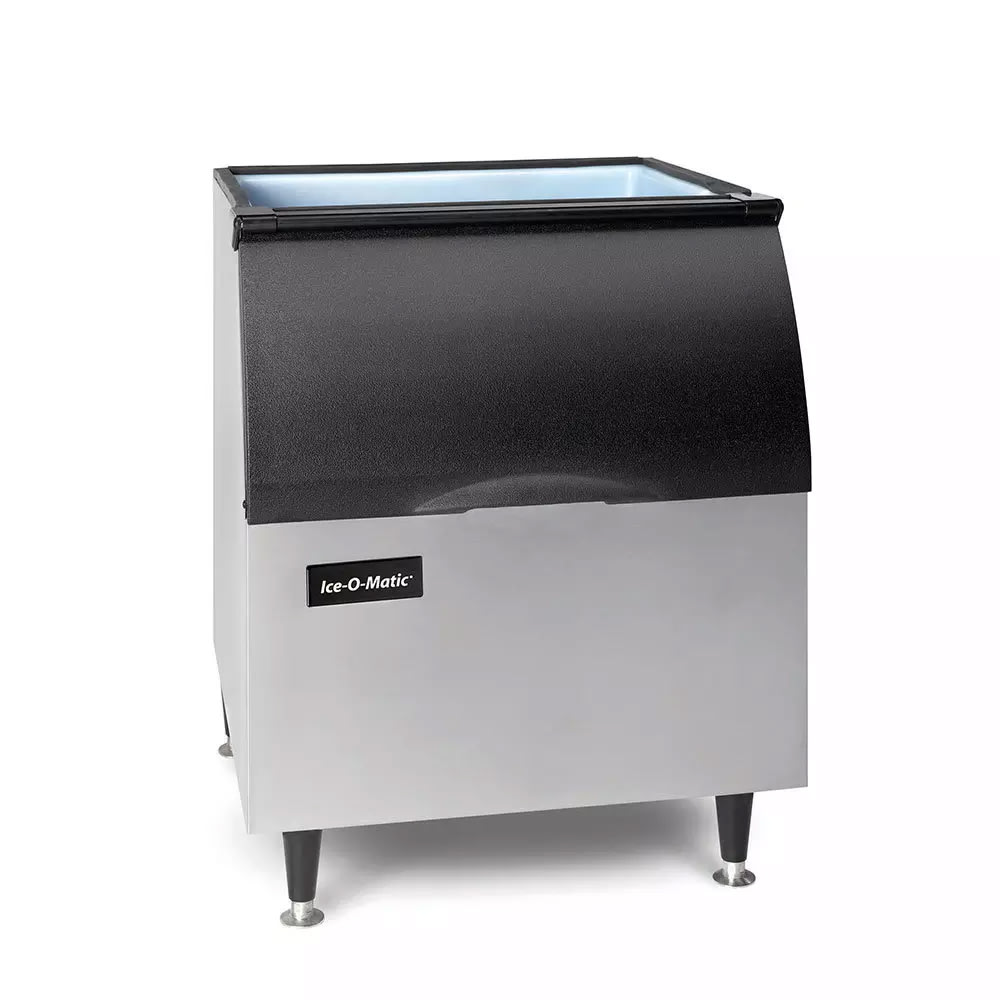

Ice Bin Details
- 344-lb. application capacity
- Top hinged door with a sloped front
- Corrosion-resistant polyethylene liner
- Foam insulation prevents ice from melting
- Durable aluminum exterior
- Sturdy 6-in. adjustable legs
Dimensions & Utilities
- Ice maker dimensions: 30.25 in. W x 24.25 in. D x 21.25 in. H
- Ice bin dimensions: 30 in. W x 31 in. D x 37.5 in. H
- 11 A, 5.43 kW
- 115 V/60 Hz/1 ph
Elevation Series Modular Cube Ice Maker w/ Bin, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30″ W, approximately 435 lb production/24 hours at 70°/50° (320 lb at 90°/70°), full-size cubes, PURE ICE built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 115v/60/1-ph, 11.0 amps, cULus, NSF, CE; Ice Bin: 344 lb storage capacity, 30″W x 31″D x 37-1/2″H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable stainless finish exterior, 6″ legs, NSF
