Description

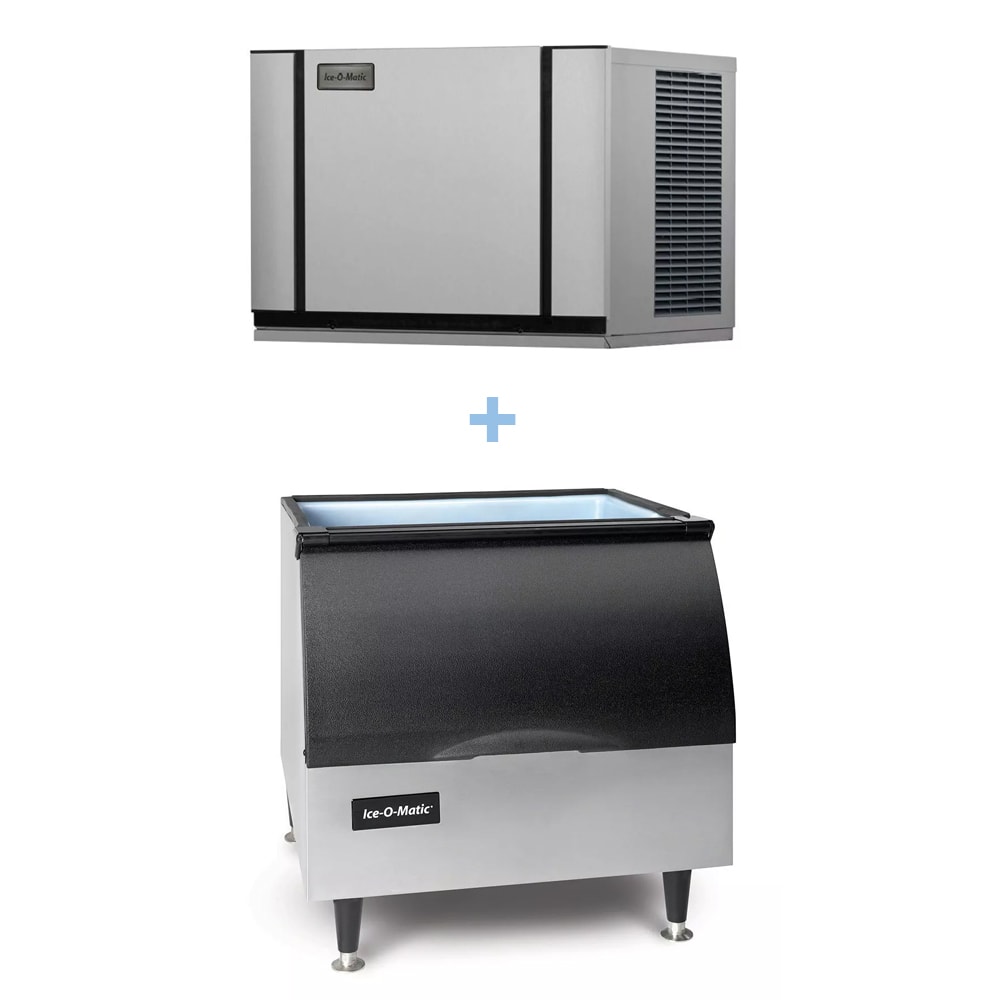

Ice-O-Matic CIM0430FA/B25PP
In ideal environmental conditions, the Ice-O-Matic CIM0430FA/B25PP ice maker/bin combo can produce a maximum of 435 pounds of ice per day. Protected with PURE ICE antimicrobial, it inhibits the growth of harmful mold, bacteria, and other microbes for optimal sanitation. The unit’s status is indicated with a clear LED display, and its dual-exhaust discharge enables placement in a variety of settings.
To simplify cleaning, the interior of the Ice-O-Matic CIM0430FA/B25PP ice maker’s bin is lined with seamless polyethylene. Its rotocast exterior is durable and impact resistant, making it suitable for use in fast-paced, high-volume environments. Users can retrieve ice through the unit’s top-hinged, sloped front door.
Ice Maker Details
- Part of the Elevation Series
- 435-lb. maximum daily ice production
- 320-lb. AHRI daily ice production
- Makes full-size cubes
- Cube size: 7/8 in. x 7/8 in. x 7/8 in.
- Dual-exhaust discharge enables multiple installation configurations
- Sanitizes and descales with 1-touch controls
- LED status display enables consistent monitoring
- Simple-to-clean plastic food zone with dishwasher-safe components
- PURE ICE treatment inhibits microbial growth
- Air cooled
- Self-contained condenser
- Cools with R404A refrigerant
- Ideal incoming water pressure: 20-80 PSIG
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient temperature range: 50-100 degrees F

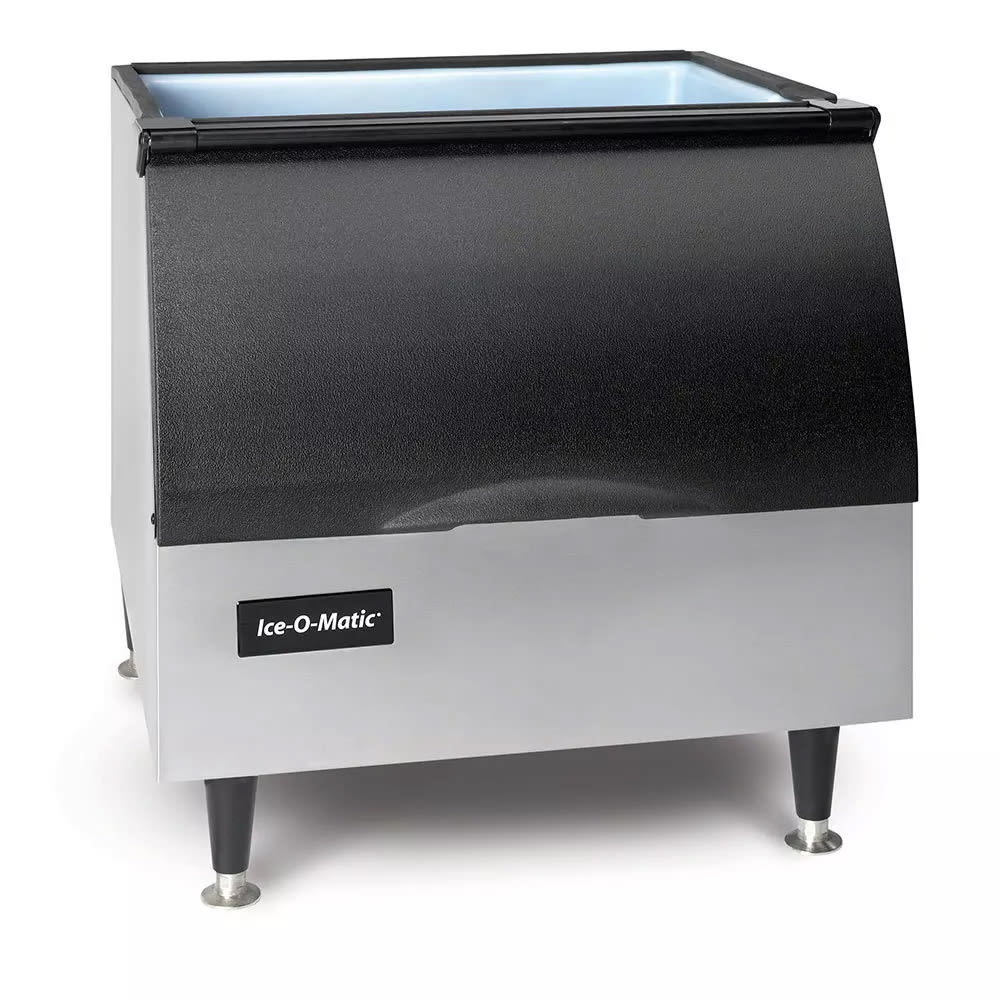

Ice Bin Details
- 242-lb. application capacity
- Insulated with foam to extend life of ice
- Polyethylene interior liner is easy to clean
- Sturdy, impact-resistant rotocast exterior
- Sloped, top-hinged front door
- Elevated on 6-in. legs
Dimensions & Utilities
- Ice maker: 30.25 in. W x 24.25 in. D x 21.25 in. H
- Ice bin: 30 in. W x 31 in. D x 28 in. H
- 11 A
- 115 V/60 Hz/1 ph
Elevation Series Modular Cube Ice Maker w/ Bin, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30″ W, approximately 435 lb production/24 hours at 70°/50° (320 lb at 90°/70°), full-size cubes, PURE ICE built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 115v/60/1-ph, 11.0 amps, cULus, NSF, CE; Ice Bin: 242 lb storage capacity, 30″W x 31″D x 28″H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, rotocast exterior finish, 6″ legs, NSF
