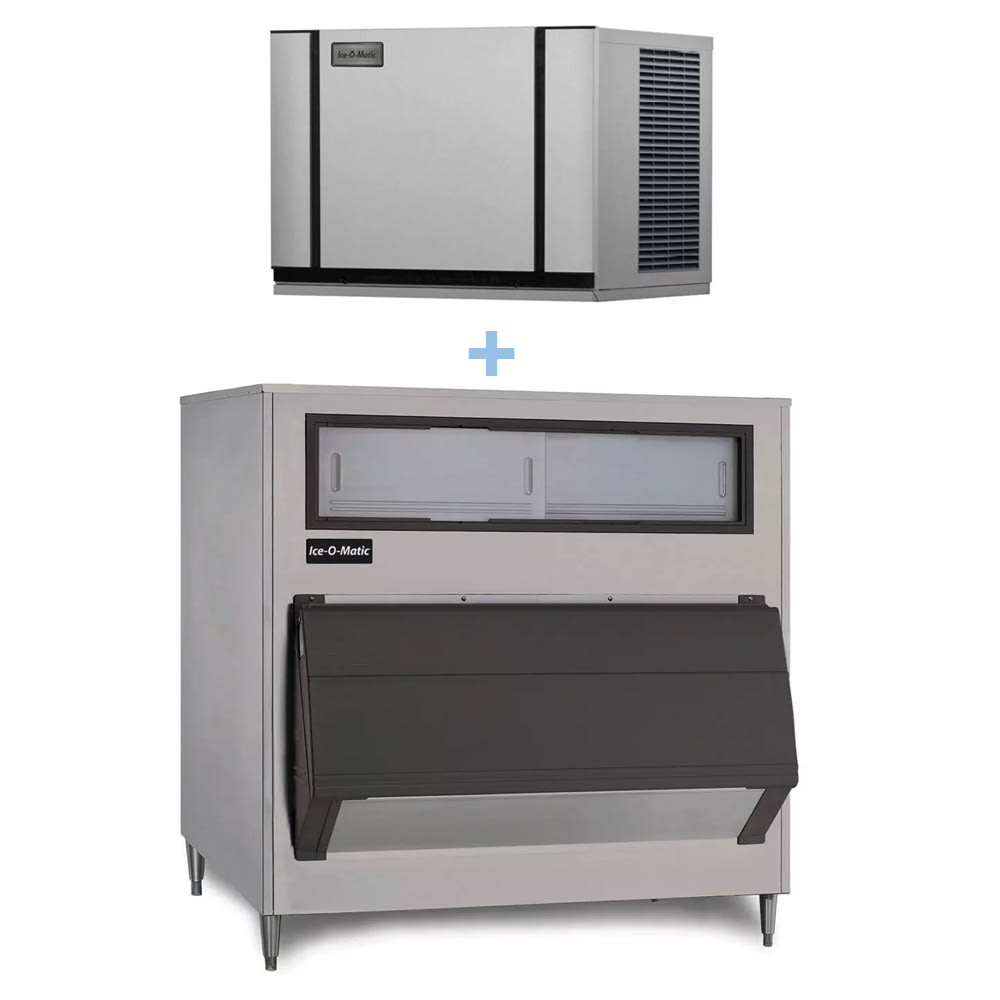

Ice-O-Matic CIM0430FA/B1600-60 435 lb Full Cube Ice Maker w/ Bin – 1660 lb Storage, Air Cooled, 115v

Operators can monitor the status of the Ice-O-Matic CIM0430FA/B1600-60 ice maker with bin with a clear LED display. Air is discharged from the unit from the side and the top, enabling installation in a variety of settings. Its plastic food zone is equipped with removable components that can be cleaned in the dishmachine, and its one-touch controls quickly descale and sanitize the unit. To streamline installation and service, it features a self-contained condenser.

The Ice-O-Matic CIM0430FA/B1600-60 ice machine’s bin utilizes a first-in, first-out management system to maximize freshness and an ice shield to prevent spills. Its interior is lined with sanitary polyethylene that won’t harbor bacteria and can be wiped clean. Constructed of resilient stainless steel, it defends against rusting, denting, and scratching.

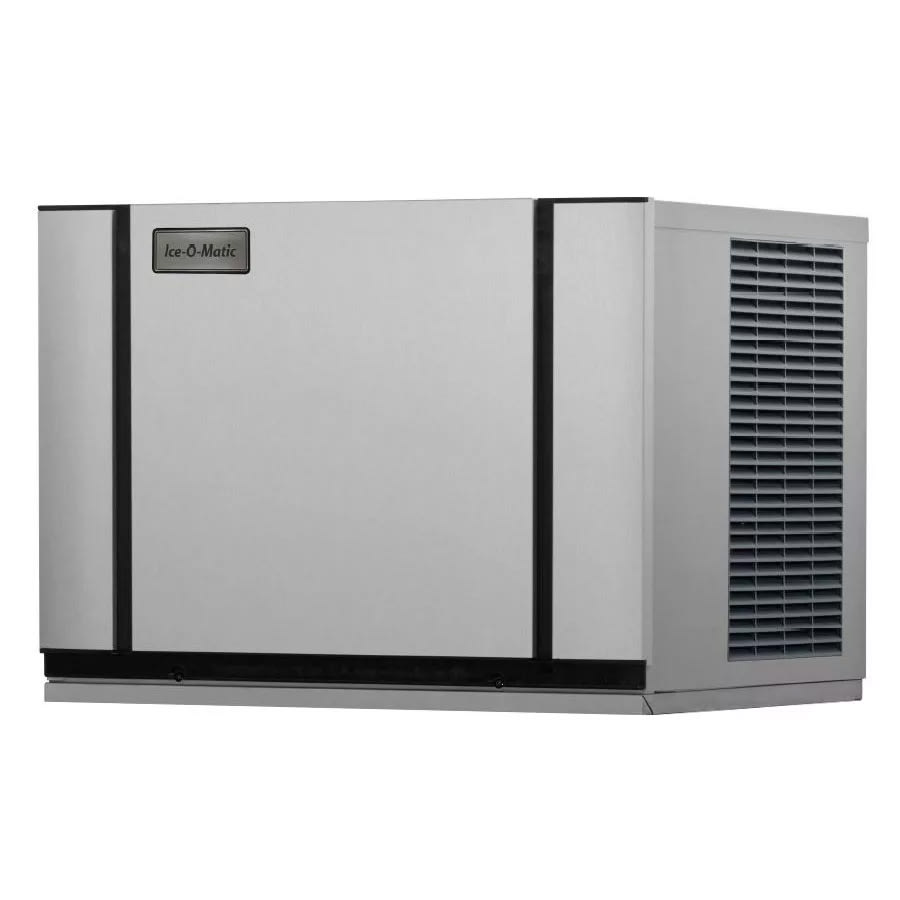

Ice Maker Details

• Part of the Elevation Series
• 435-lb. maximum daily ice production
• 320-lb. AHRI daily ice production
• Makes full-size cubes
• Cube size: ⁷/₈ in. x ⁷/₈ in. x ⁷/₈ in.
• Air is discharged from top and side with dual-exhaust system
• 1-touch controls for convenient descaling and sanitizing
• LED status display
• Plastic food zone equipped with dishwasher-safe components to streamline cleaning
• PURE ICE treatment inhibits microbial growth
• Air cooled
• Self-contained condenser
• Cools with R404A refrigerant
• Ideal incoming water pressure: 20-80 PSIG
• Ideal incoming water temperature: 40-100 degrees F
• Ideal ambient temperature range: 50-100 degrees F

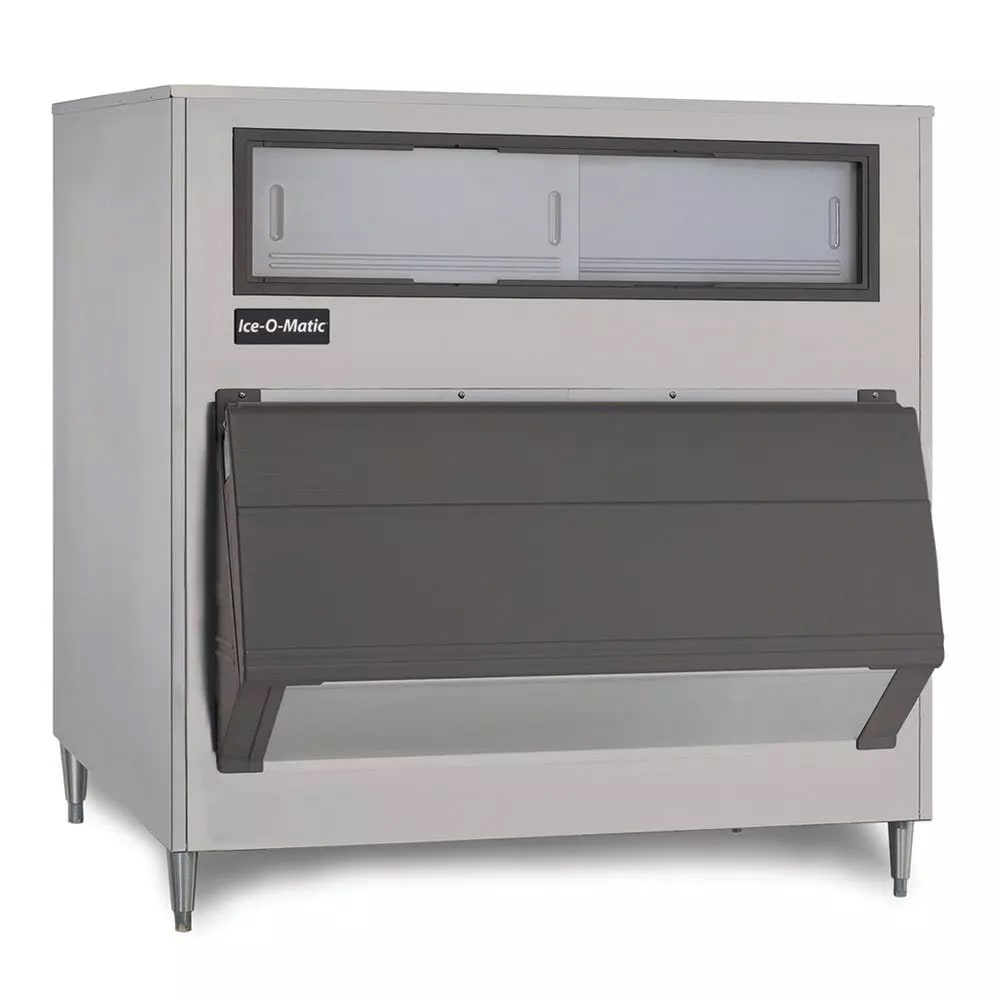

Ice Bin Details

• 1,325-lb. application capacity
• Ice shield controls flow to reduce spills
• Stay-open door enables 1-handed ice retrieval
• Stainless steel construction resists rusting, denting, and scratching
• Corrosion-resistant polyethylene interior liner
• First-in, first-out ice management system maximizes freshness

Dimensions & Utilities

• Ice maker: 30.25 in. W x 24.25 in. D x 21.25 in. H
• Ice bin: 60 in. W x 31 in. D x 65 in. H
• 11 A
• 115 V/60 Hz/1 ph

Elevation Series Modular Cube Ice Maker w/ Bin, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30″ W, approximately 435 lb production/24 hours at 70°/50° (320 lb at 90°/70°), full-size cubes, PURE ICE built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 115v/60/1-ph, 11.0 amps, cULus, NSF, CE; Ice Bin: 1660 lb storage capacity, 60″W x 31″D x 65″H, stainless steel construction, first in first out ice management, corrosion resistant Poly Liner, heavy duty “stay open” door for easy one hand access, ice shield controls flow & reduces spills, NSF
