Description

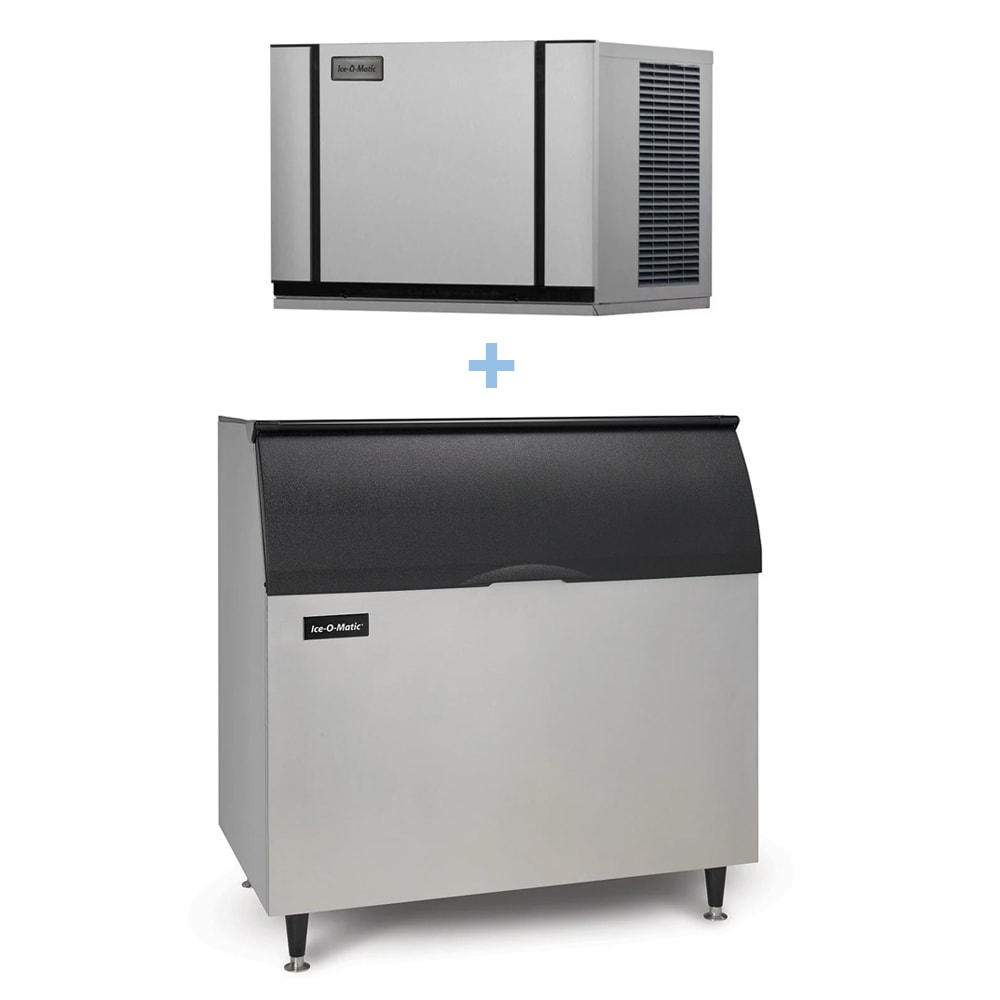

Ice-O-Matic CIM0430FA/B110PS
To streamline cleaning, the Ice-O-Matic CIM0430FA/B110PS ice maker with bin features a plastic food zone with dishwasher-safe components. PURE ICE antimicrobial is built in to inhibit the growth of bacteria, and one-touch controls quickly descale and sanitize the unit. Its dual-exhaust system discharges air from the side and top, maximizing installation flexibility. This unit’s condenser is self-contained, making it fast and simple to install.
To slow ice melting and reduce waste, the Ice-O-Matic CIM0430FA/B110PS ice machine’s bin is built with foam insulation. Holding as much as 854 pounds, this bin enables operators to retrieve ice through its top-hinged, sloped door. With an exterior made of aluminum, this unit is durable and corrosion resistant.
Ice Maker Details
- Part of the Elevation Series
- 435-lb. maximum daily ice production
- 320-lb. AHRI daily ice production
- Makes full-size cubes
- Cube size: 7/8 in. x 7/8 in. x 7/8 in.
- 1-touch controls facilitate swift sanitizing and descaling
- LED status display
- Dual-exhaust top/side air discharge
- Easy-to clean plastic food zone with dishwasher-safe components
- Antimicrobial PURE ICE is built in to optimize sanitation
- Self-contained condenser
- Air cooled
- Utilizes R404A refrigerant
- Ideal incoming water pressure: 20-80 PSIG
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient temperature range: 50-100 degrees F

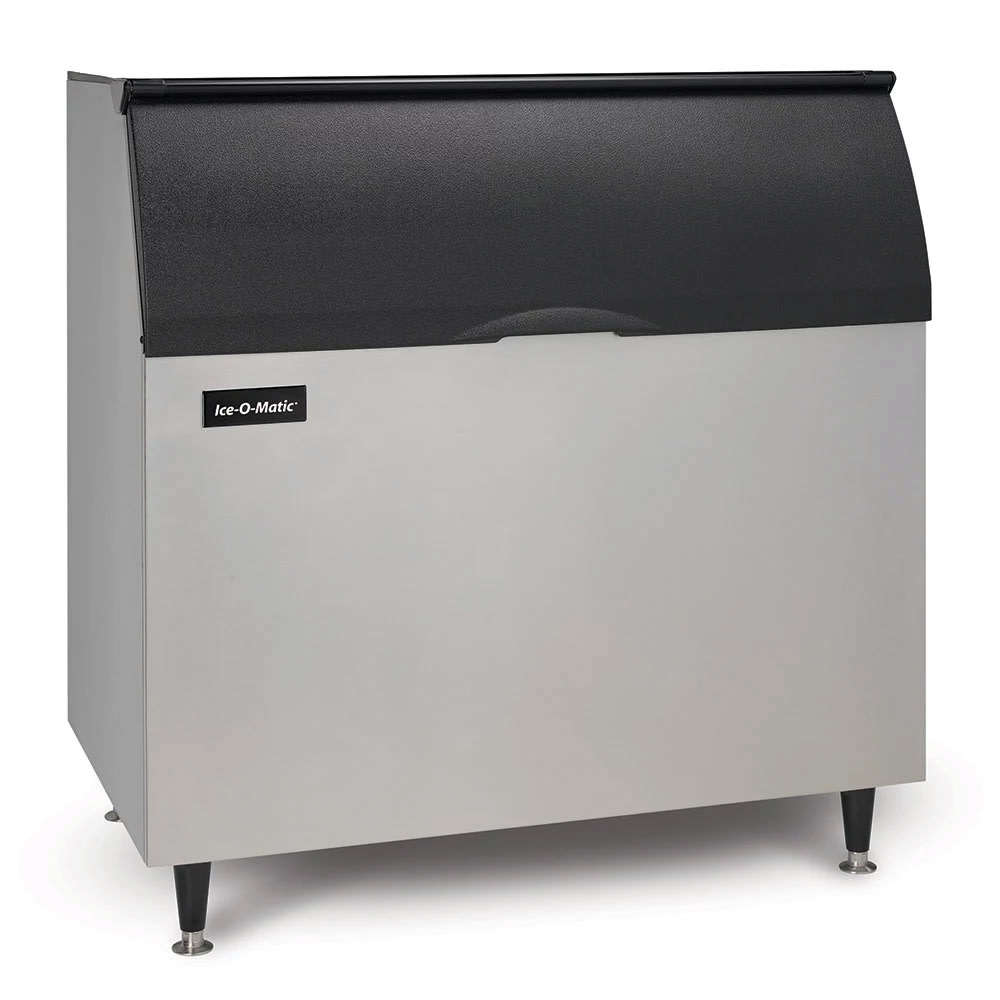

Ice Bin Details
- 854-lb. application capacity
- Durable aluminum exterior
- Polyethylene interior liner won’t harbor dust or bacteria
- Foam insulation lengthens life of ice
- Sloped, top-hinged door
- Situated on 6-in. legs
Dimensions & Utilities
- Ice maker: 30.25 in. W x 24.25 in. D x 21.25 in. H
- Ice bin: 48 in. W x 31 in. D x 50 in. H
- 11 A
- 115 V/60 Hz/1 ph
Elevation Series Modular Cube Ice Maker w/ Bin, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30″ W, approximately 435 lb production/24 hours at 70°/50° (320 lb at 90°/70°), full-size cubes, PURE ICE built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 115v/60/1-ph, 11.0 amps, cULus, NSF, CE; Ice Bin w/ Filler Panels: 854 lb storage capacity, 48″W x 31″D x 50″H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable stainless finish exterior, 6″ legs, NSF
