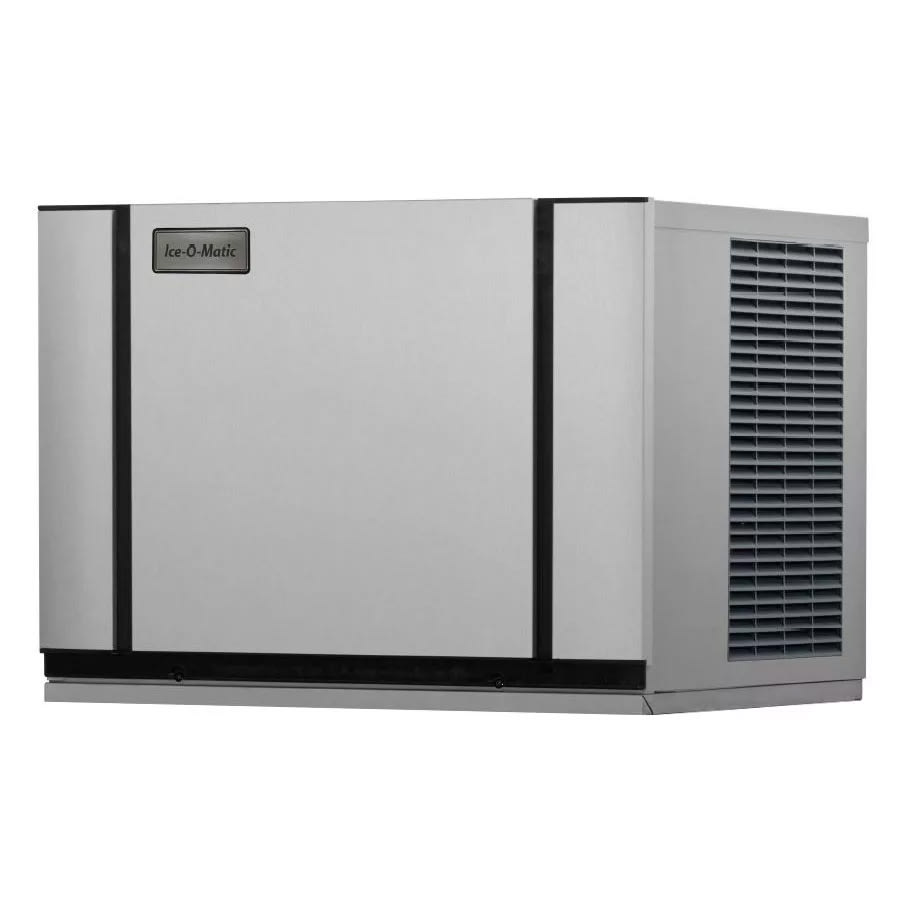

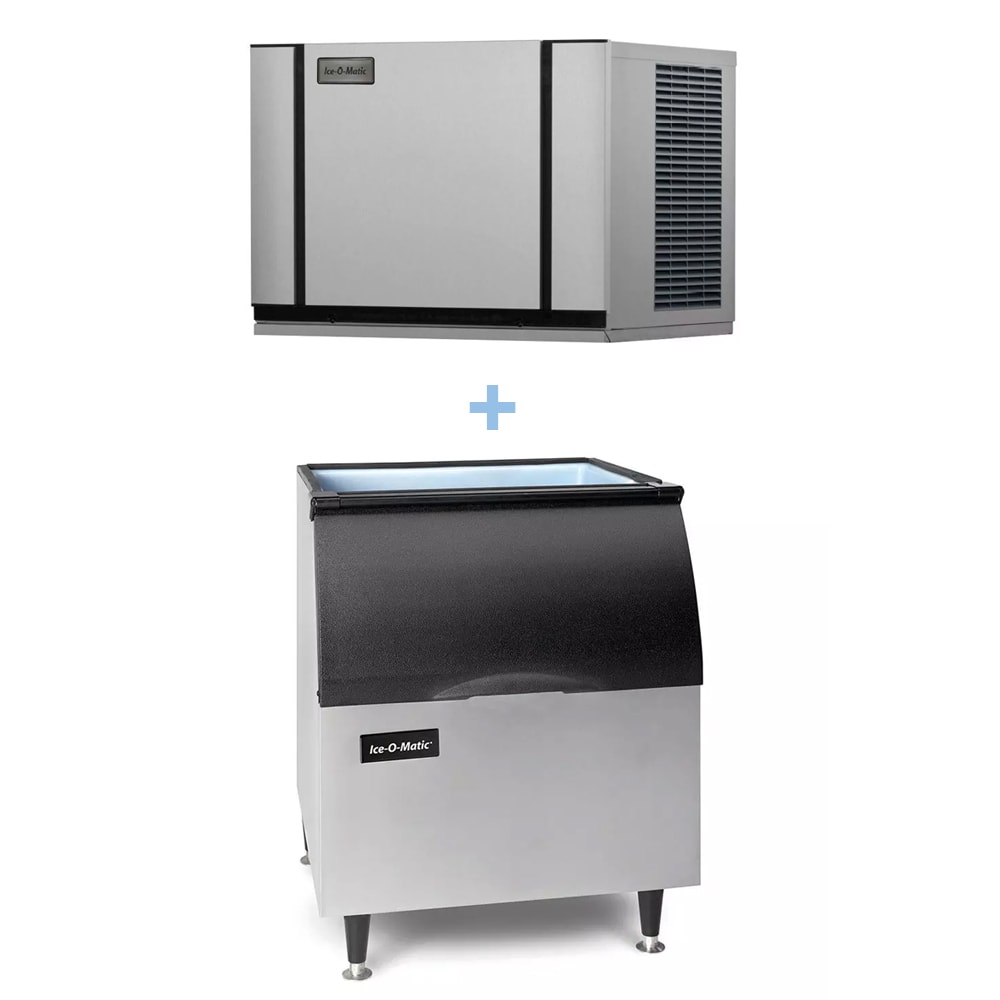

Ice-O-Matic CIM0330HA/B40PS
An air-cooled unit, the Ice-O-Matic CIM0330HA/B40PS ice machine with bin features a quick-install, self-contained condenser. Its LED display alerts users of status updates, and its one-touch descaling and sanitizing controls optimize performance and cleanliness. To further streamline cleaning, its plastic food zone is equipped with removable, dishwasher-safe components.
To preserve cold air and lengthen the life of stored ice, the Ice-O-Matic CIM0330HA/B40PS ice maker’s bin is insulated with foam. Its aluminum exterior defends against corrosion, and its polyethylene interior liner can be quickly wiped clean. This unit accommodates as much as 344 pounds of ice and rests on 6-inch legs.
Ice Maker Details
- Part of the Elevation Series
- 305-lb. maximum daily ice production
- 230-lb. AHRI daily ice production
- Makes half-size cubes
- Cube size: 3/8 in. x 7/8 in. x 7/8 in.
- 1-touch controls for sanitizing and descaling
- LED display alerts users of status updates
- Plastic food zone can be wiped clean
- Removable, dishmachine-safe food zone components
- Protected with antimicrobial PURE ICE
- Self-contained condenser
- Air cooled
- Dual-exhaust system discharges air from side and top
- Uses R404A refrigerant
- Ideal incoming water pressure: 20-80 PSIG
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient temperature range: 50-100 degrees F

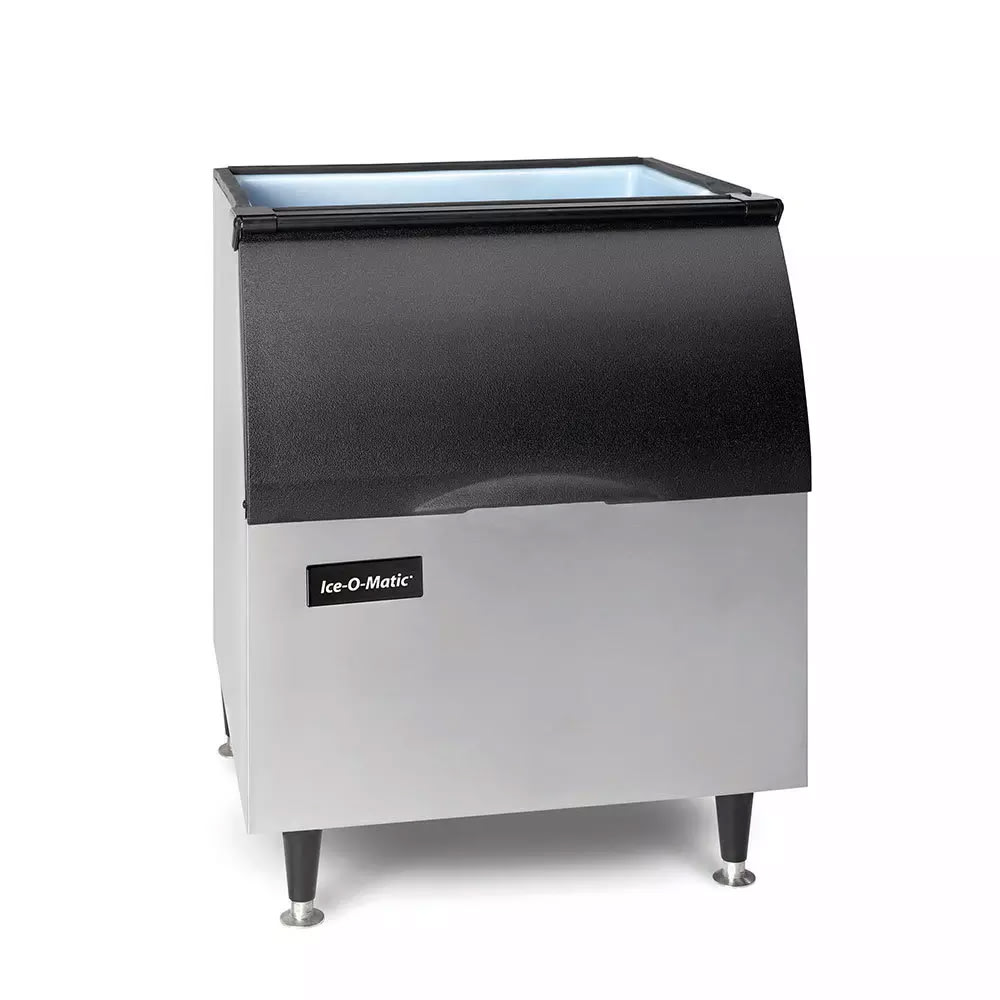

Ice Bin Details
- 344-lb. application capacity
- Foam insulation preserves temperatures
- Polyethylene interior liner streamlines cleaning
- Exterior is made of corrosion-resistant aluminum
- Sloped front door is top hinged
- Elevated on 6-in. legs
Dimensions & Utilities
- Ice maker: 30.25 in. W x 24.25 in. D x 21.25 in. H
- Ice bin: 30 in. W x 31 in. D x 37.5 in. H
- 11 A
- 115 V/60 Hz/1 ph
Elevation Series Modular Cube Ice Maker w/ Bin, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30″ W, approximately 305 lb production/24 hours at 70°/50° (230 lb at 90°/70°), half-size cubes, PURE ICE built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 115v/60/1-ph, 11.0 amps, cULus, NSF, CE; Ice Bin: 344 lb storage capacity, 30″W x 31″D x 37-1/2″H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable stainless finish exterior, 6″ legs, NSF
