Description
Ice-O-Matic CIM0320HA/B55PS

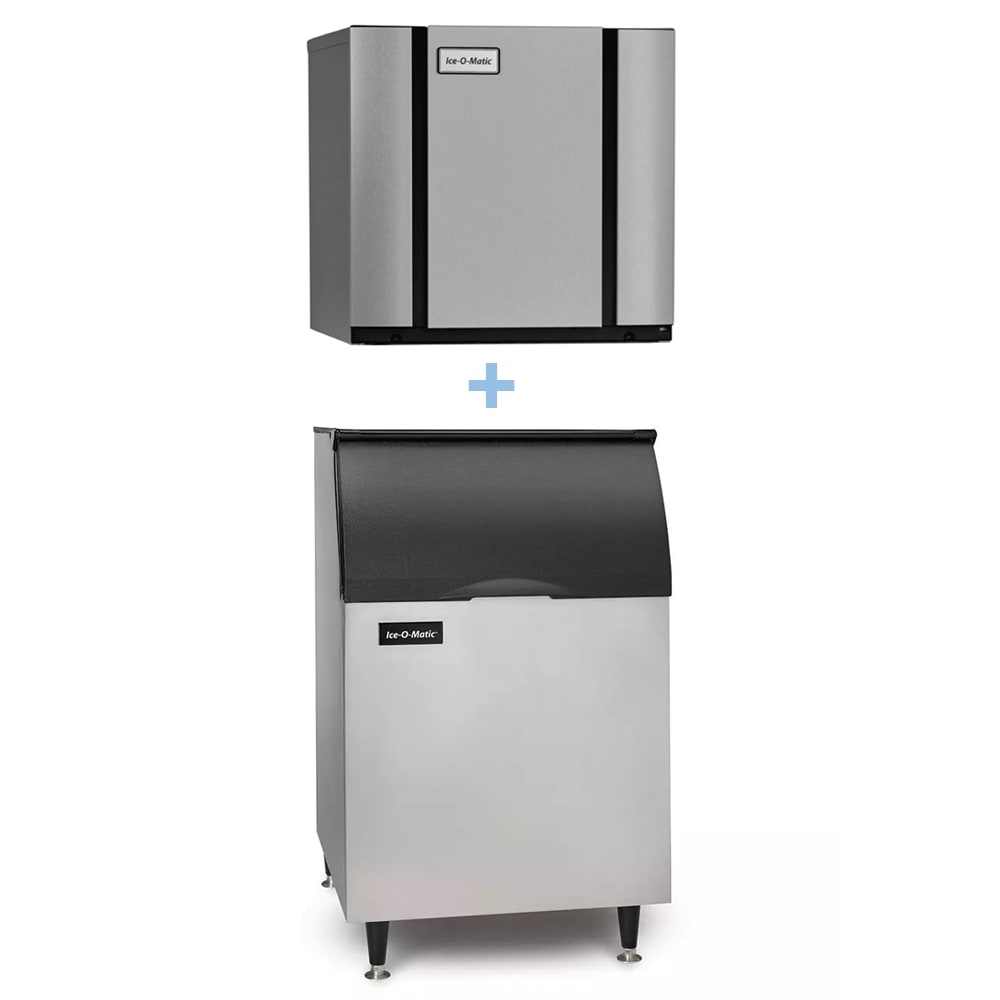

Designed for top mounting, the Ice-O-Matic CIM0320HA/B55PS half-cube ice maker head comes with a matching bin that supports the ice machine and stores as much as 510 pounds of ice to meet demand during peak service periods. The bin has an aluminum exterior that resists corrosion and scratches and a sloped door that’s top hinged. It rests on adjustable, 6-inch legs that can be fine-tuned to keep the unit level on uneven or cracked flooring.
The Ice-O-Matic CIM0320HA/B55PS ice machine head with bin fits into narrow spaces, making it a good choice for locations where space may be limited, such as food court kiosks and concession stands. Its air-cooled system features dual exhaust to prevent overheating and add flexibility to installation configurations. Inside the ice machine, select components are recyclable, and pieces can be removed for cleaning in a dishmachine. Simplifying routine maintenance, the unit features an LED display and provides digital diagnostics.

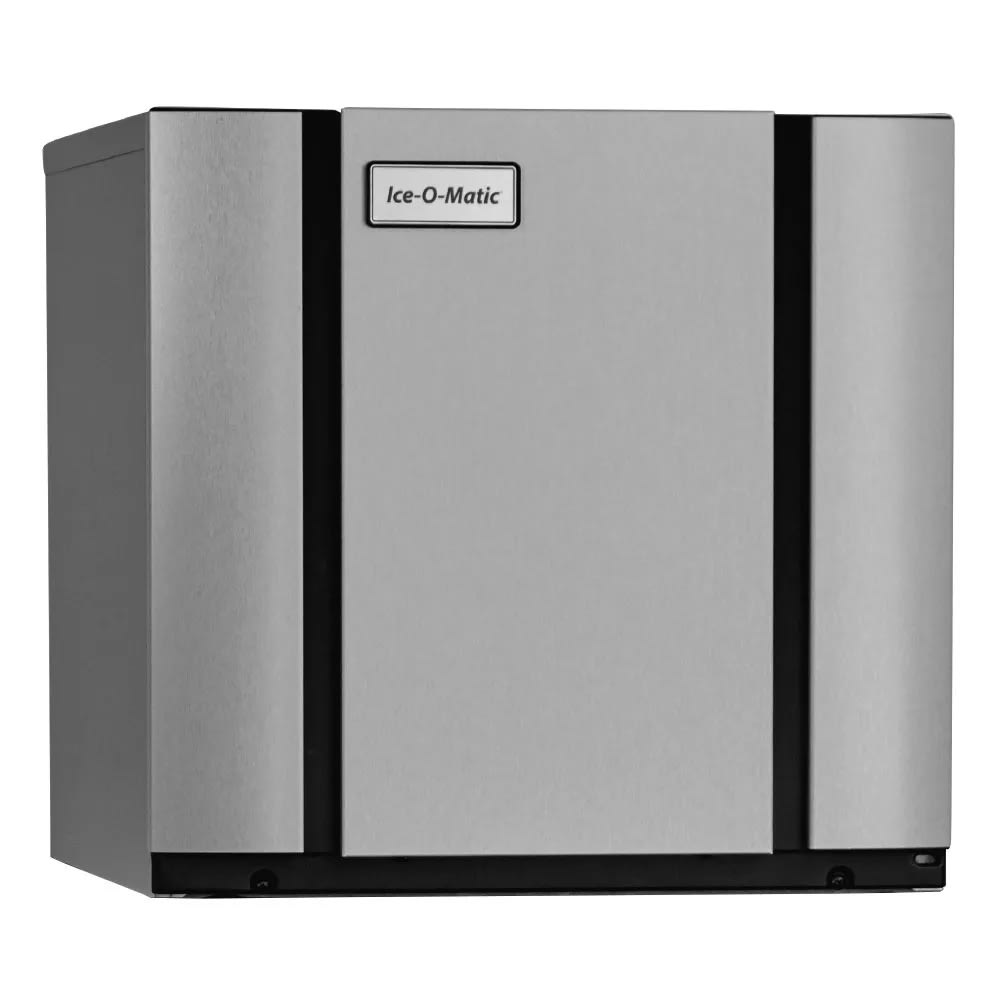

Ice Maker Details
- Part of the Elevation Series
- Production capacity: 313 lbs./24 hours in ideal conditions
- AHRI production capacity: 244 lbs./24 hours
- Produces half-size ice cubes
- Cube dimensions: 3/8 in. x 7/8 in. x 7/8 in.
- Narrow shape is just 22.25 in. wide
- Air-cooled design
- Condenser is self-contained for simplified installation
- Dual system exhausts heat and air from top and side
- Plastic food zone resists the growth of microbes
- BPA-free, dishwasher-safe components can be snapped in and out
- PURE ICE antimicrobial protection
- Smart status display and LED lights
- Universal Smart Harness control board for improved component access
- 1-touch controls for sanitizing and descaling
- Built with recyclable components
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient temperature: 50-100 degrees F
- Ideal water pressure: 20-80 PSIG
- Heat displacement: 4,400 BTU/hour

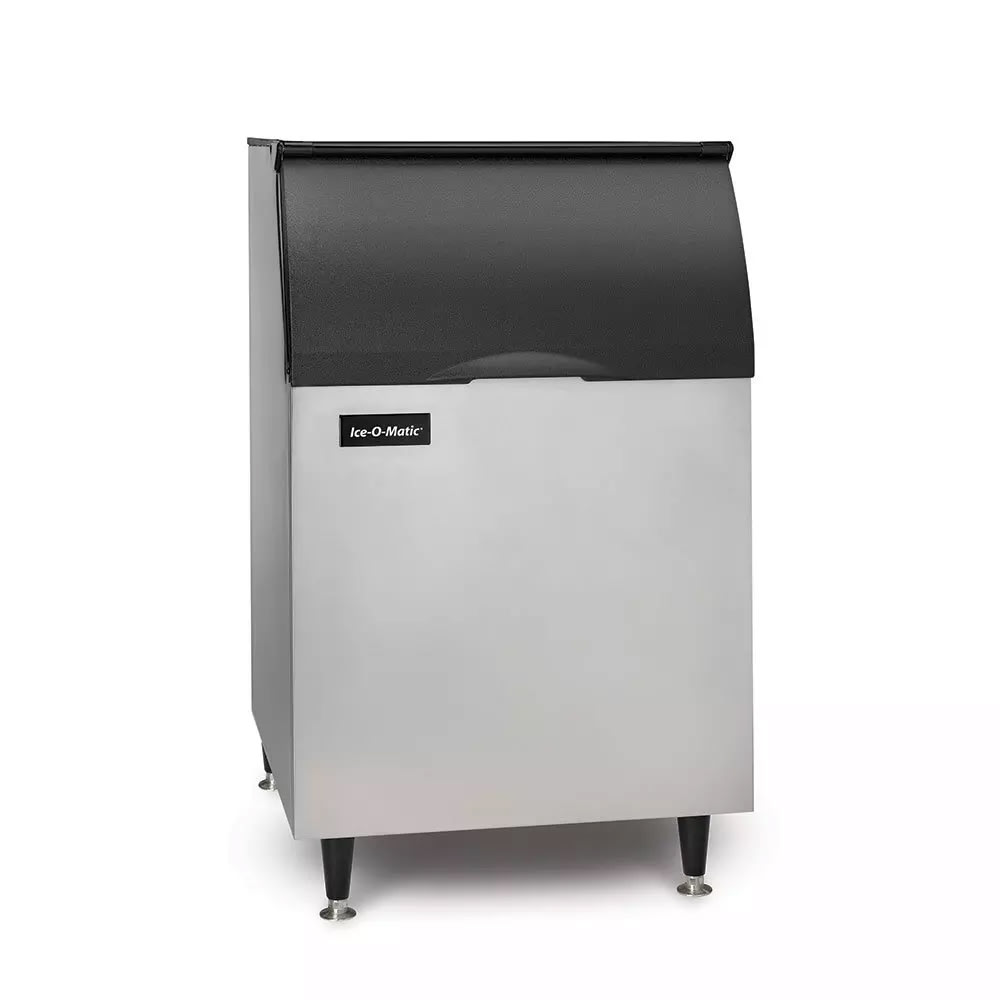

Ice Bin Details
- KBT19 bin top included; fits 22-in. cuber on 30-in. bin
- 510-lb. capacity
- Top-hinged, sloped-front door
- Insulated interior liner made of corrosion-resistant polyethylene
- Exterior rotocast aluminum finish for enhanced durability
- Designed with 6-in. adjustable legs
Dimensions & Utilities
- Ice maker: 22.25 in. W x 24.25 in. D x 21.25 in. H
- Bin: 30 in. W x 31 in. D x 50 in. H
- Bin top: 30 in. W x 231/2 in. D
- 11 A, 6.69 kW
- 120 V/60 Hz/1 ph
- Potable water inlet: 3/8-in. FPT
- Water outlet: 3/4-in. FPT
- Electrical connection port: 7/8-in. diameter
- Electrical connection junction box: 7/8-in. diameter
Elevation Series Modular Cube Ice Maker w/ Bin, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 22″ W, approximately 313 lb production/24 hours at 70°/50° (244 lb at 90°/70°), half-size cubes, PURE ICE built in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 115v/60/1-ph, 11.0 amps, cULus, NSF, CE; Ice Bin w/ Bin Top: 510 lb storage capacity, 30″W x 31″D x 50″H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable stainless finish exterior, 6″ legs, NSF
