Description
Ice-O-Matic CIM0320HA/B42PS Description

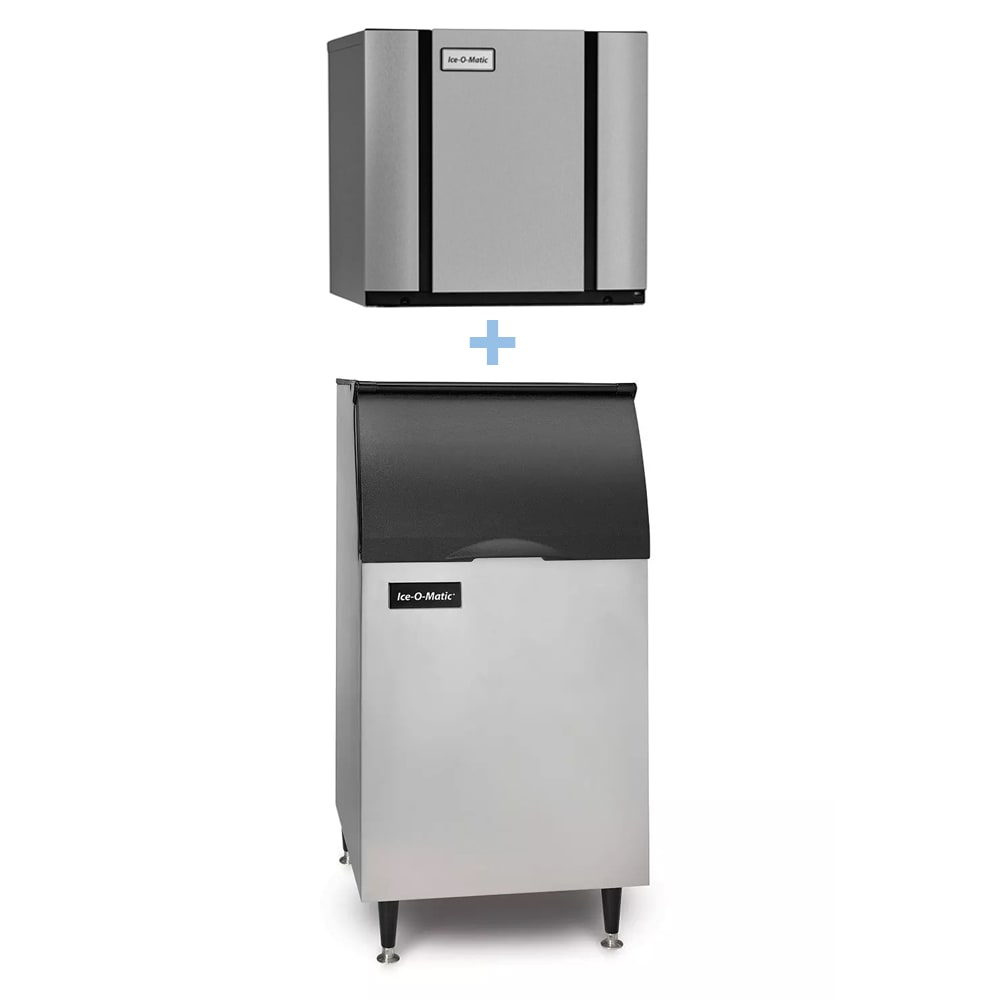

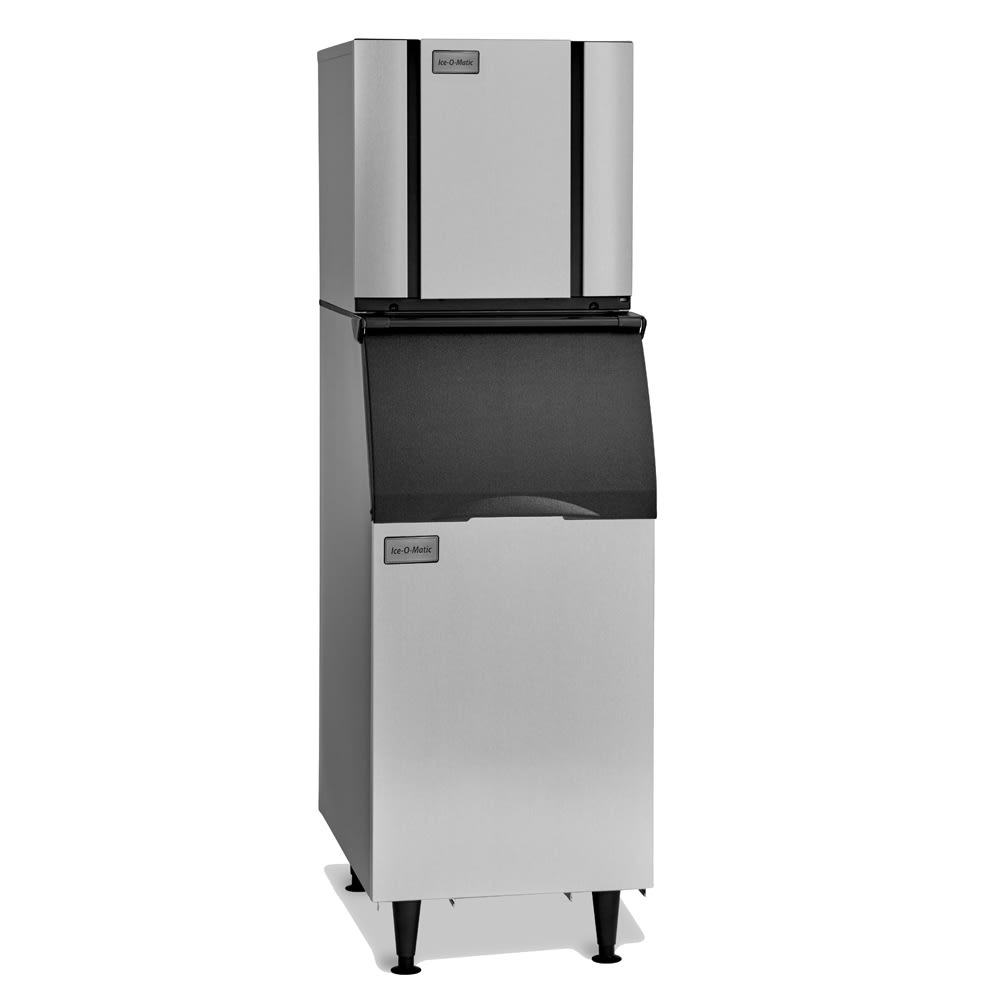

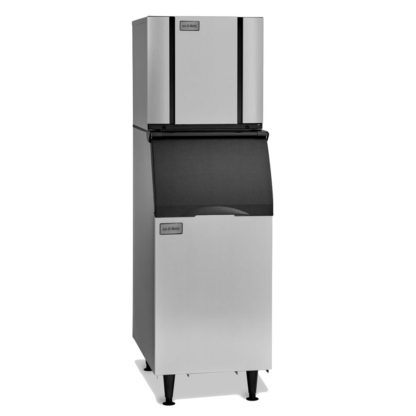

The Ice-O-Matic CIM0320HA/B42PS ice machine head with bin is designed for use in locations with restricted floor space. The ice machine and bin both measure less than 23 inches in width, and the bin has the capacity to store as much as 351 pounds of pre-made ice. A self-contained condenser with dual exhaust provides simplified installation with flexible placement options. Made with an aluminum exterior and poly interior liner, the bin is lightweight and resistant to corrosion.
The Ice-O-Matic CIM0320HA/B42PS half-cube ice maker with bin offers resistance to microbial growth with PURE ICE antimicrobial treatment, and its one-touch sanitizing and descaling functions streamline cleaning. For unimpeded access, some of the BPA-free interior components are removable and can be washed in a dishwasher to save time. The bin supports the ice machine head and has six-inch legs that can be adjusted for added stability during use.
Ice Maker Details
- Part of the Elevation Series
- Production capacity: 313 lbs./24 hours in ideal conditions
- AHRI production capacity: 244 lbs./24 hours
- Produces half-size ice cubes for chilling beverages
- Cube dimensions: 3/8 in. x 7/8 in. x 7/8 in.
- Ice maker measures just 22.25 in. wide
- Air-cooled design
- Self-contained condenser design for compact footprint
- Dual side and top air exhaust system for heat dispersal
- Microbial growth discouraged by plastic food zone
- Dishwasher-safe components are BPA free and snap in and out
- PURE ICE antimicrobial protection
- Machine status signified by LED smart status display and indicator lights
- Universal components and digital diagnosis with Universal Smart Harness control board
- Sanitizing and descaling process with 1-touch control
- Select components can be recycled
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient temperature: 50-100 degrees F
- Ideal water pressure: 20-80 PSIG
- Heat displacement: 4,400 BTU/hour

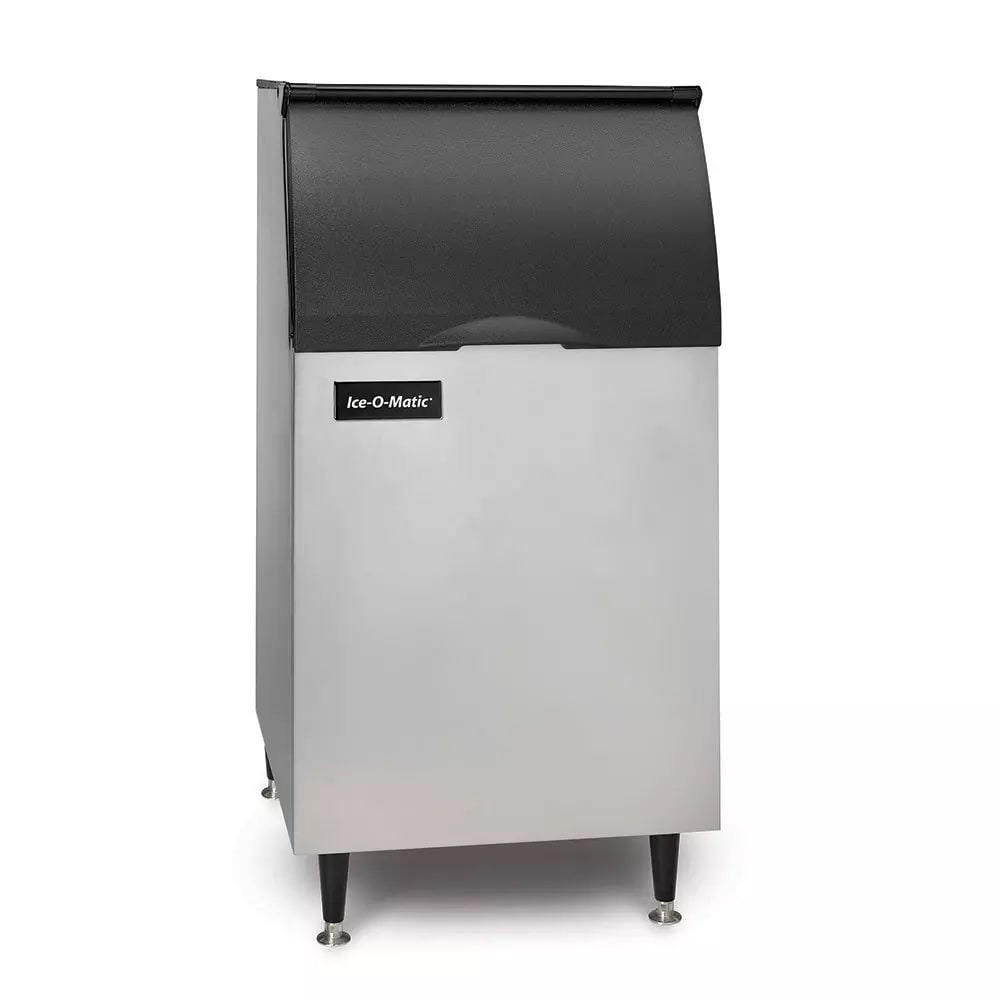

Ice Bin Details
- 351-lb. capacity
- Narrow, 22-in. footprint
- Top-hinged, slope-front door
- Interior liner is insulated and made of polyethylene
- Rotocast aluminum finish on exterior
- Sturdy, 6-in. adjustable legs support the unit
Dimensions & Utilities
- Ice maker: 22.25 in. W x 24.25 in. D x 21.25 in. H
- Bin: 22 in. W x 31 in. D x 50 in. H
- 11 A, 6.69 kW
- 120 V/60 Hz/1 ph
- Potable water inlet: 3/8-in. FPT
- Water outlet: 3/4-in. FPT
- Electrical connection port: 7/8-in. diameter
- Electrical connection junction box: 7/8-in. diameter
Warranty Offer
Elevation Series Modular Cube Ice Maker w/ Bin, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 22″ W, approximately 313 lb production/24 hours at 70°/50° (244 lb at 90°/70°), half-size cubes, PURE ICE built in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 115v/60/1-ph, 11.0 amps, cULus, NSF, CE; Ice Bin: 351 lb storage capacity, 22″W, 31″D x 50″H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable stainless finish exterior, 6″ legs, NSF
