Description
Ice-O-Matic CIM0320HA/B1600-60

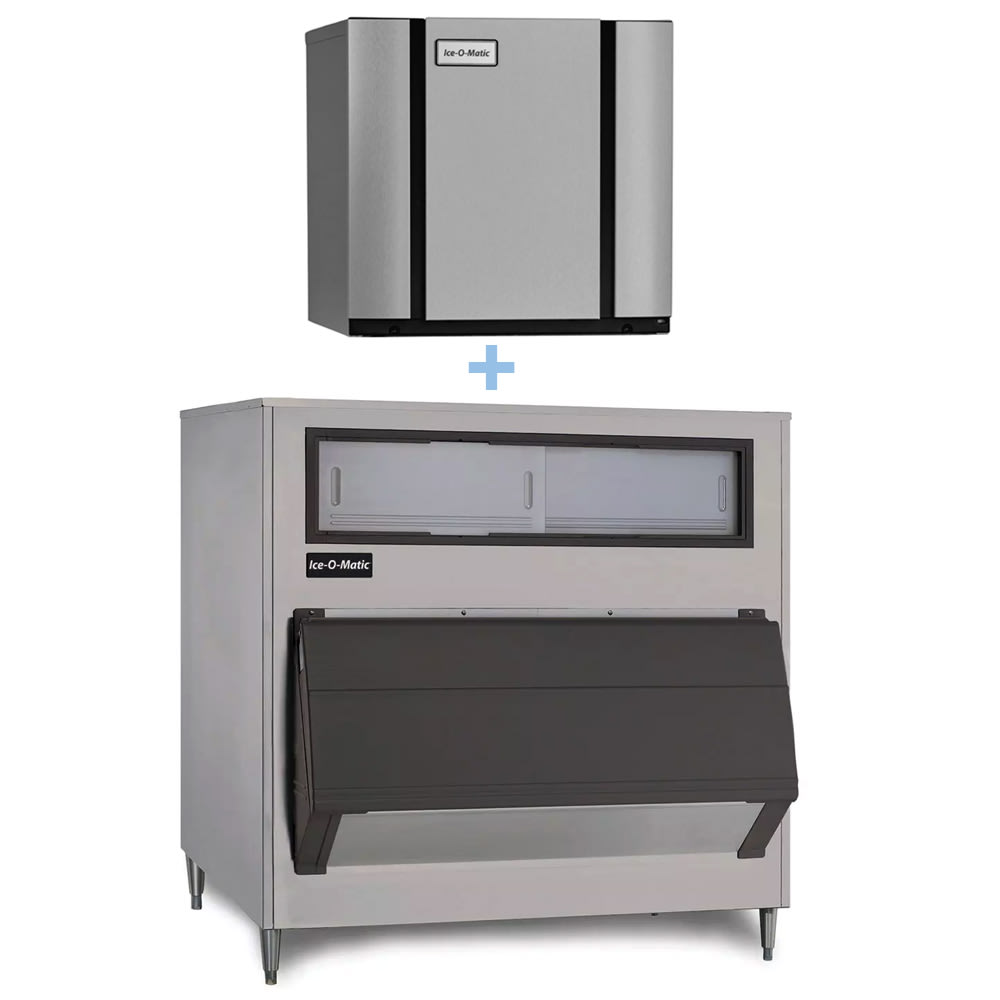

The Ice-O-Matic CIM0320HA/B1600-60 half-cube ice maker comes with a bin to safely store ice in a temperature-stable and sanitary environment. The bin is made of durable stainless steel to resist rust, and it’s designed to promote first-in, first-out (FIFO) ice use. Its heavy-duty door can be opened with one hand and remains open as the user portions ice, reducing the danger of injuries. Holding as much as 1,660 pounds of pre-made ice, the bin can store enough ice to keep up with high-demand periods.
Designed with a Universal Smart Harness control board, the Ice-O-Matic CIM0320HA/B1600-60 half-cube ice machine head with bin provides the user with digital diagnostics and displays the machine’s status on its LED display. When maintenance is needed, the LED status lights alert the user. To discourage the development and growth of microbes such as bacteria, mildew, and fungal spores, the interior of this machine is enhanced with antimicrobial protection.
Ice Maker Product Details
- Part of the Elevation Series
- Production capacity: 313 lbs./24 hours in ideal conditions
- AHRI production capacity: 244 lbs./24 hours
- Half-size ice cubes for chilling beverages
- Cube dimensions: 3/8 in. x 7/8 in. x 7/8 in.
- Narrow footprint measures 22.25 in. wide
- Air cooled
- Condenser is self-contained for simplified operation
- Dual side and top air exhaust discharges heat from multiple points
- Plastic food zone has no small cracks to retain bacteria
- BPA-free, snap-in and snap-out components are dishwasher safe
- PURE ICE antimicrobial protection
- LED smart status display and indicator lights communicate machine status and needed maintenance
- Digital diagnostics provided by universal Smart Harness control board
- 1-touch sanitizing and descaling for streamlined operation
- Built with recyclable components
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient temperature: 50-100 degrees F
- Ideal water pressure: 20-80 PSIG
- Heat displacement: 4,400 BTU/hour

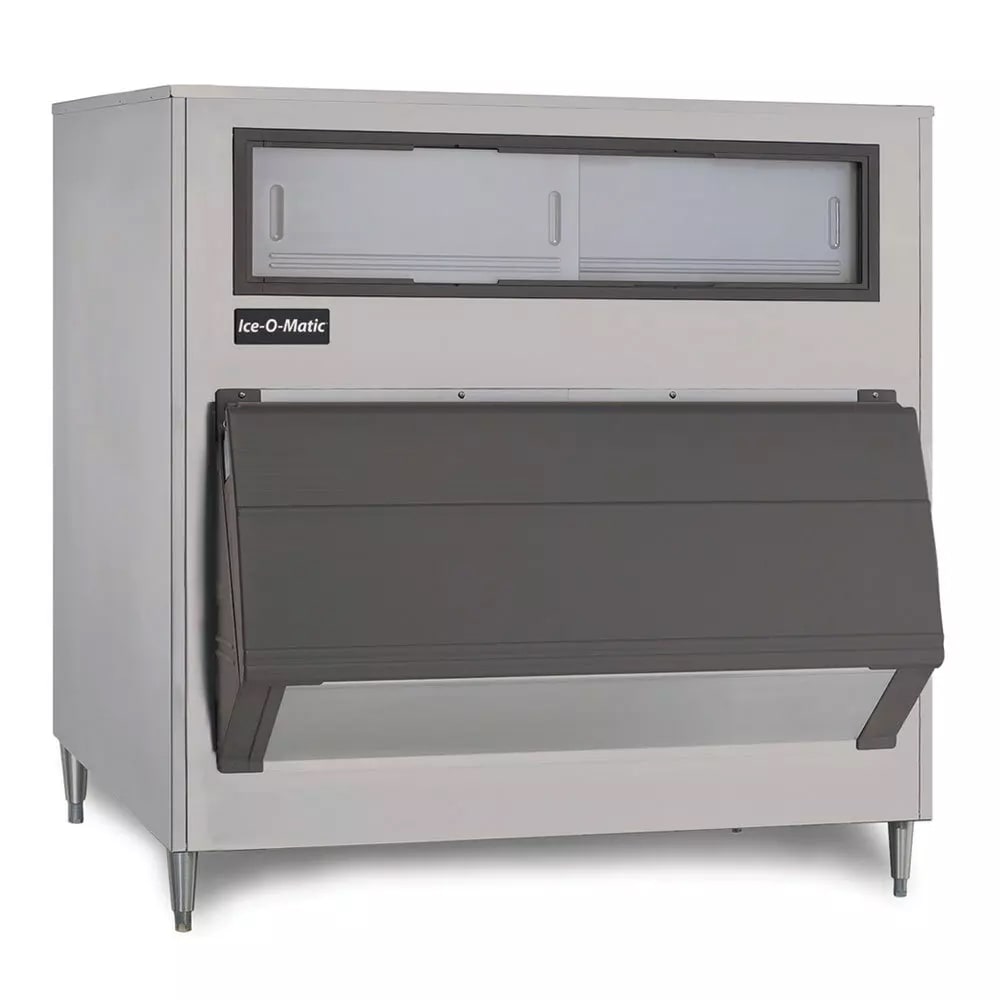

Ice Bin Details
- 1,660-lb. capacity
- 52.8-cu.-ft. storage space
- Made of durable stainless steel
- Design promotes first-in, first-out (FIFO) ice management
- Corrosion-resistant interior poly liner
- Heavy-duty, stay-open door can be operated with one hand
- Flow controlled with ice shield
- 32-in. required door access
- Stainless steel construction
Dimensions & Utilities
- Ice maker: 22.25 in. W x 24.25 in. D x 21.25 in. H
- Bin: 60 in. W x 31 in. D x 65 in. H
- 11 A, 6.69 kW
- 120 V/60 Hz/1 ph
- Potable water inlet: 3/8-in. FPT
- Water outlet: 3/4-in. FPT
- Electrical connection port: 7/8-in. diameter
- Electrical connection junction box: 7/8-in. diameter
Elevation Series Modular Cube Ice Maker w/ Bin, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 22″ W, approximately 313 lb production/24 hours at 70°/50° (244 lb at 90°/70°), half-size cubes, PURE ICE built in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 115v/60/1-ph, 11.0 amps, cULus, NSF, CE; Ice Bin: 1660 lb storage capacity, 60″W x 31″D x 65″H, stainless steel construction, first in first out ice management, corrosion resistant Poly Liner, heavy duty “stay open” door for easy one hand access, ice shield controls flow & reduces spills, NSF
