Description

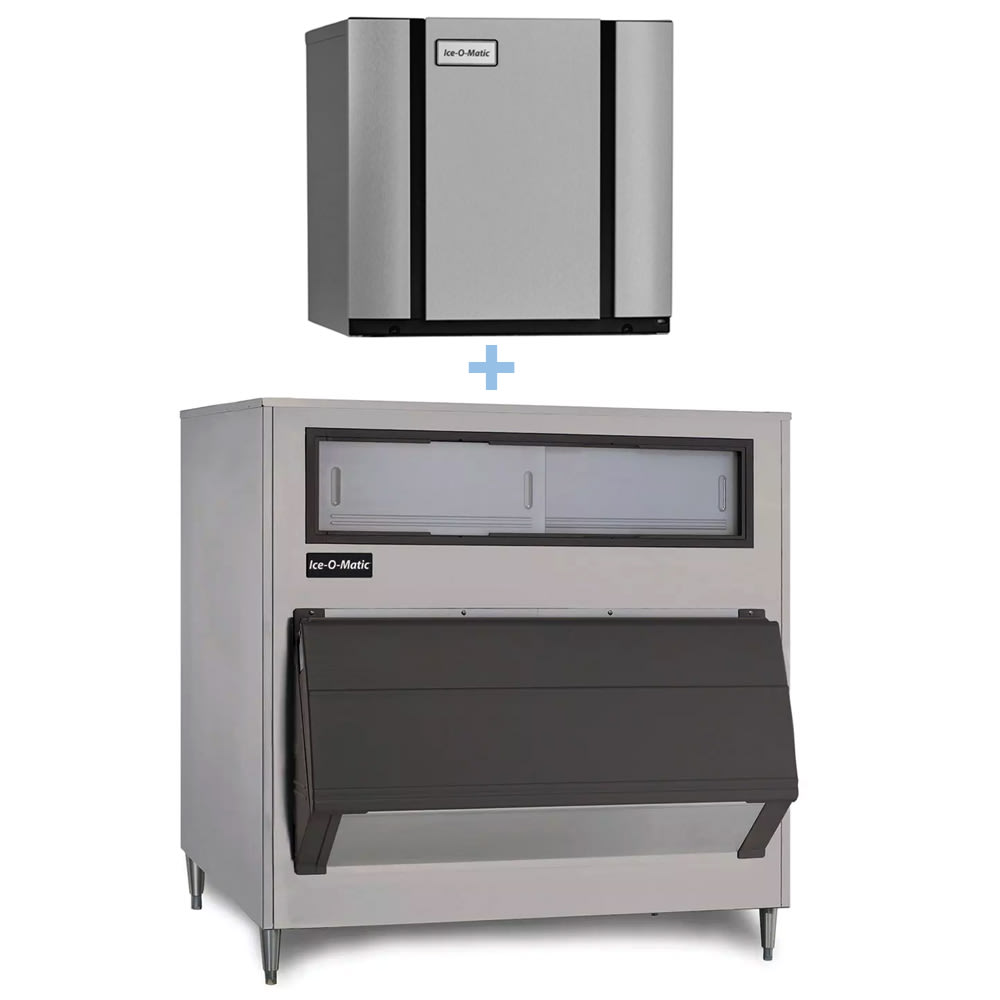

Ice-O-Matic CIM0320HA/B1325-60
Designed for use in venues with restricted space, the Ice-O-Matic CIM0320HA/B1325-60 modular ice machine head with bin is compact and has a self-contained condenser that doesn’t require additional parts or equipment to set up. It produces as much as 313 pounds of ice each day in ideal conditions, while the bin provides storage for 1,325 pounds of half-size ice cubes. Half-size cubes are good for locations that sell a high volume of chilled beverages each day; these cubes are large enough to slow the melting process but small enough to fit closely together in a glass for optimal product displacement.
The Ice-O-Matic CIM0320HA/B1325-60 half-cube ice maker with bin is air-cooled, meaning it uses less water than a water-cooled model and doesn’t require extra water input and output lines for the condenser to operate. For streamlined calibration and maintenance, this unit features a Universal Smart Harness control board that ensures uniform setup and function in all Universal Smart Harness machines. For improved heat dispersal, the ice machine has a dual exhaust system that outputs hot air to the top and side of the machine simultaneously.
Ice Maker Details
- Part of the Elevation Series Series
- Production capacity: 313 lbs./24 hours in ideal conditions
- AHRI production capacity: 244 lbs./24 hours
- Half-size ice cubes
- Cube dimensions: 3/8 in. x 7/8 in. x 7/8 in.
- Modular design measures 22.25 in. wide
- Air cooled
- Condenser is self-contained for simple installation
- Dual exhaust system reduces the chance of obstruction
- Plastic food zone has no tight spaces to harbor residue
- Dishwasher-safe pieces snap out
- PURE ICE antimicrobial protection
- Smart LED status light
- Universal Smart Harness control board for improved access
- Sanitizing and descaling functions with 1 touch
- Recyclable interior components
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient temperature: 50-100 degrees F
- Ideal water pressure: 20-80 PSIG
- Heat displacement: 4,400 BTU/hour

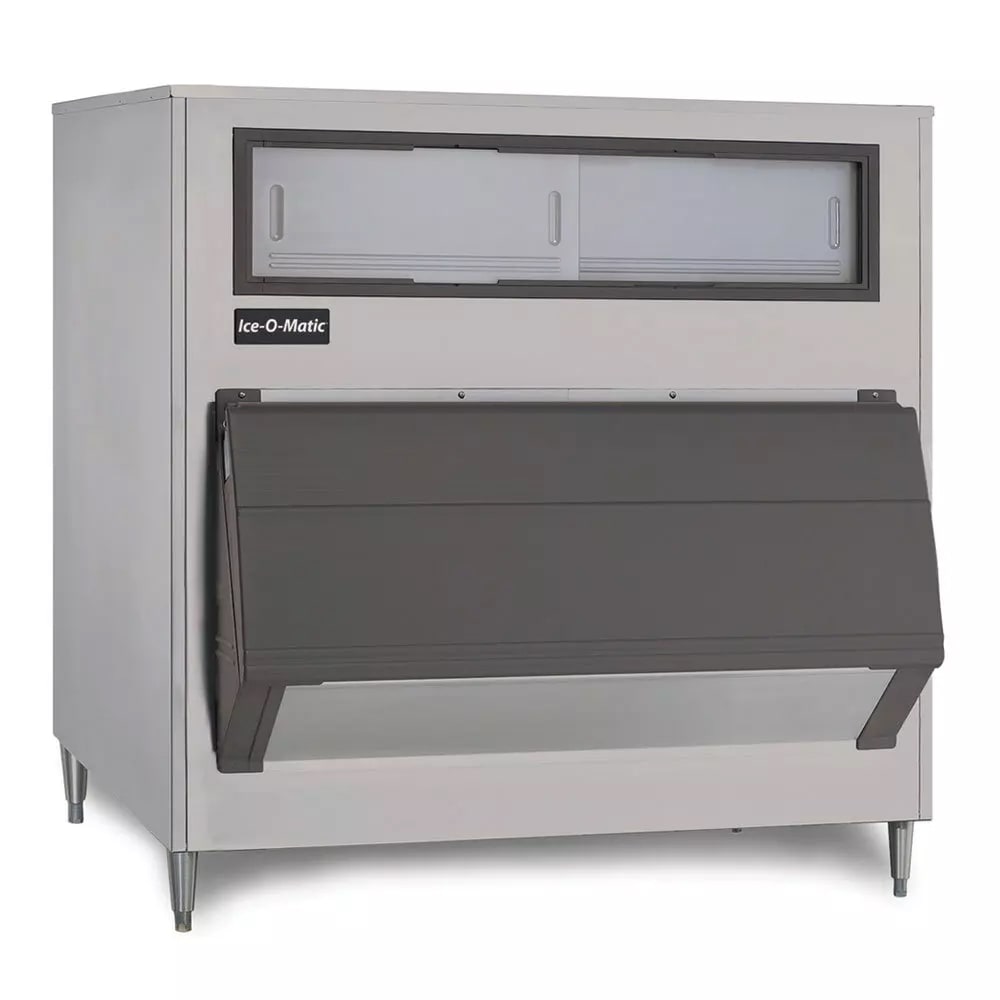

Ice Bin Details
- 1,325 lb. capacity
- 42-cu.-ft. storage space
- Made of stainless steel for durability
- Designed for first-in, first-out (FIFO) ice management
- Interior poly liner resists corrosion
- Heavy-duty, stay-open door for one-handed operation
- Ice shield reduces spills
- 32-in. required door access
Dimensions & Utilities
- Ice maker: 22.25 in. W x 24.25 in. D x 21.25 in. H
- Bin: 60 in. W x 31 in. D x 56 in. H
- 11 A, 6.69 kW
- 120 V/60 Hz/1 ph
- Potable water inlet: 3/8-in. FPT
- Water outlet: 3/4-in. FPT
- Electrical connection port: 7/8-in. diameter
- Electrical connection junction box: 7/8-in. diameter
Elevation Series Modular Cube Ice Maker w/ Bin, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 22″ W, approximately 313 lb production/24 hours at 70°/50° (244 lb at 90°/70°), half-size cubes, PURE ICE built in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 115v/60/1-ph, 11.0 amps, cULus, NSF, CE; Ice Bin: 1325 lb storage capacity, 60″W x 31″D x 56″H, stainless steel construction, first in first out ice management, corrosion resistant Poly Liner, heavy duty “stay open” door for easy one hand access, ice shield controls flow & reduces spills, NSF
