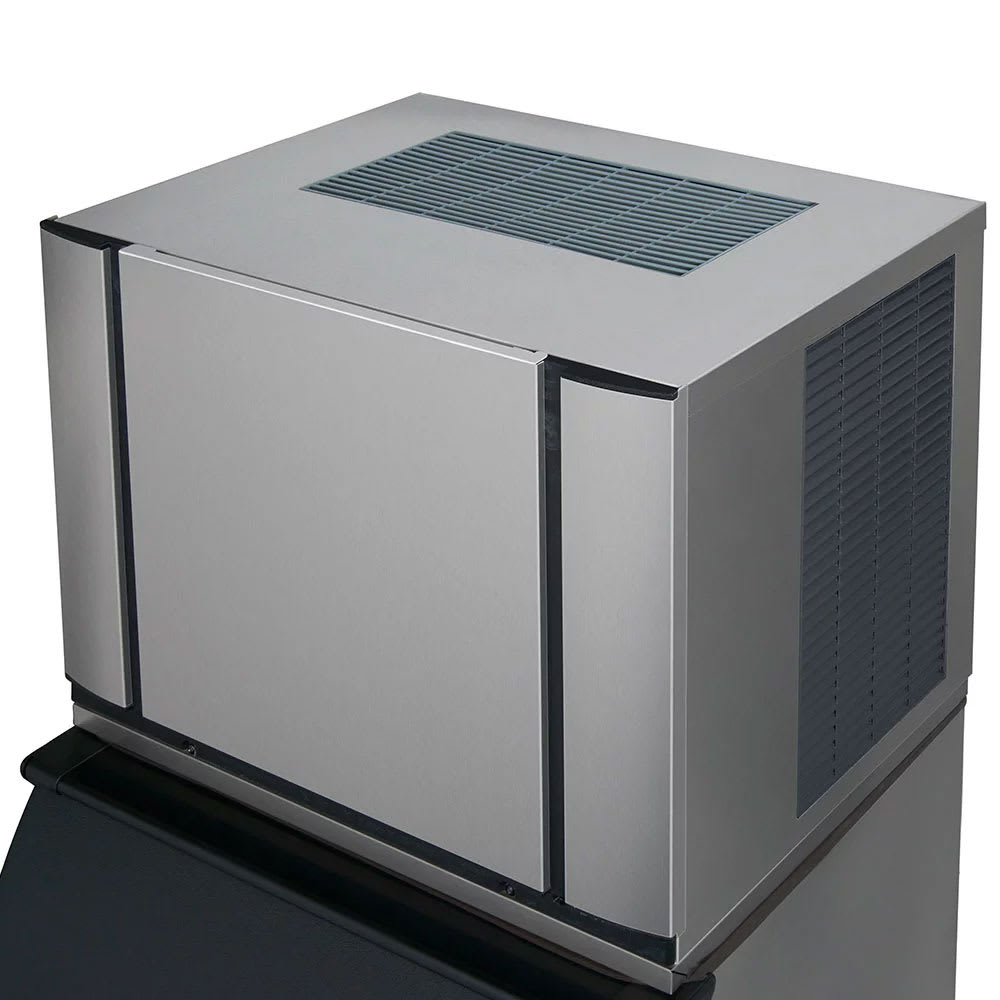

Ice-O-Matic CIM0320FA 22″ Elevation Series Full Cube Ice Machine Head – 313 lb/24 hr, Air Cooled 115v

The Ice-O-Matic CIM0320FA Elevation Series ice machine head can make 313 pounds of ice in 24 hours, but this amount will be affected by ambient air and incoming water temperatures. This unit uses air to cool refrigerant in the condensing coils as it flows away from the evaporator so it can freeze water and form cubes. It makes full-cube ice, which measures 0.875 inch by 0.875 inch by 0.875 inch; these cubes are perfect for drinks in bars and restaurants since they melt slowly.

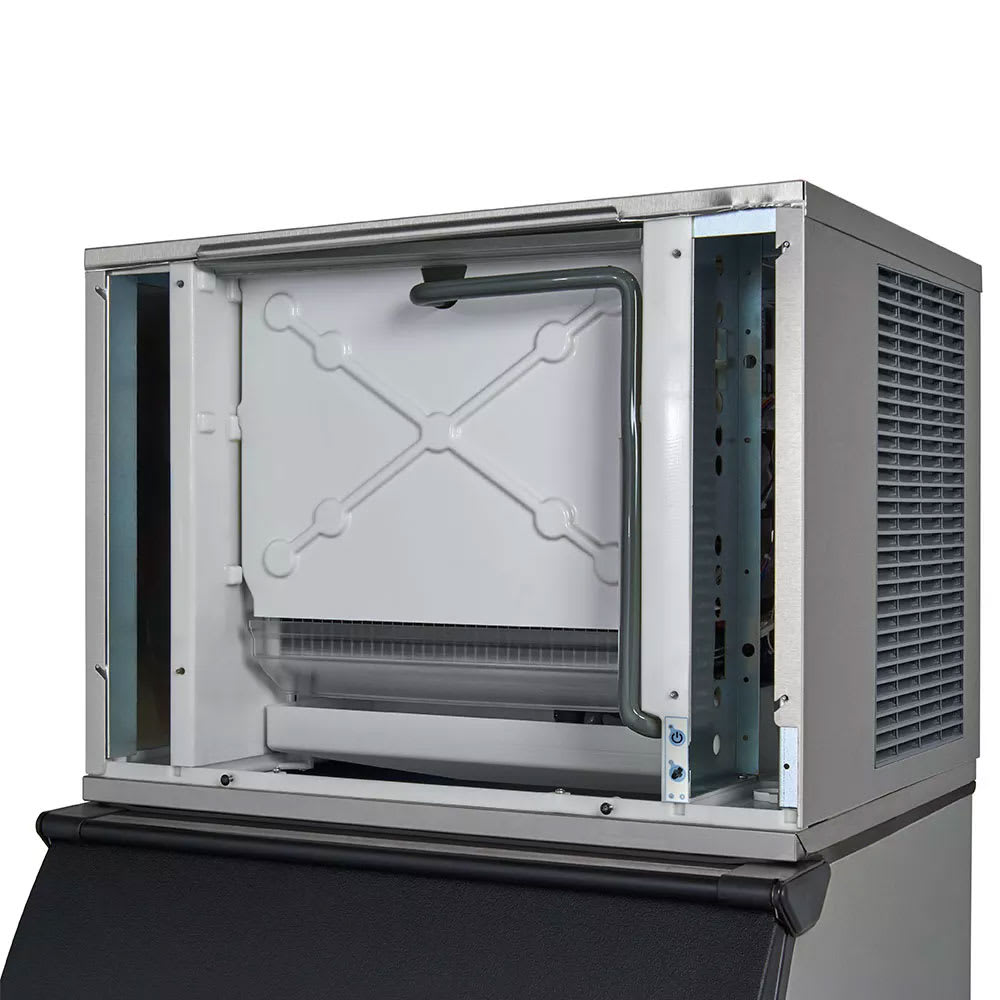

The food zone—the area that houses all the components that contact water and ice—is made of plastic without small cracks and crevices, so it is simple to wipe clean. Antimicrobial protection on the components slows bacteria and scale growth. An LED indicator light illuminates when cleaning is required, and the Ice-O-Matic CIM0320FA ice maker has a one-touch cleaning and sanitizing feature. The BPA-free food zone components snap in and out, which enables them to be removed for cleaning in a dishwasher.

Product Details

• 313-lb. maximum daily production
• Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
• Air-cooled condenser
• Air discharges from the side and top to increase installation flexibility without obstructing exhaust
• Smart Harness control board provides digital diagnostics to simplify servicing
• Required ambient air temperature: 50-100 degrees F
• Required incoming water temperature: 40-100 degrees F
• Required incoming water pressure: 20-80 PSIG
• Part of the Elevation Series
• Ice bin or dispenser is sold separately

Simple Cleaning and Sanitizing

• Plastic food zone does not have hard-to-clean cracks or crevices
• Agion antimicrobial protection slows mold, scale, and bacteria

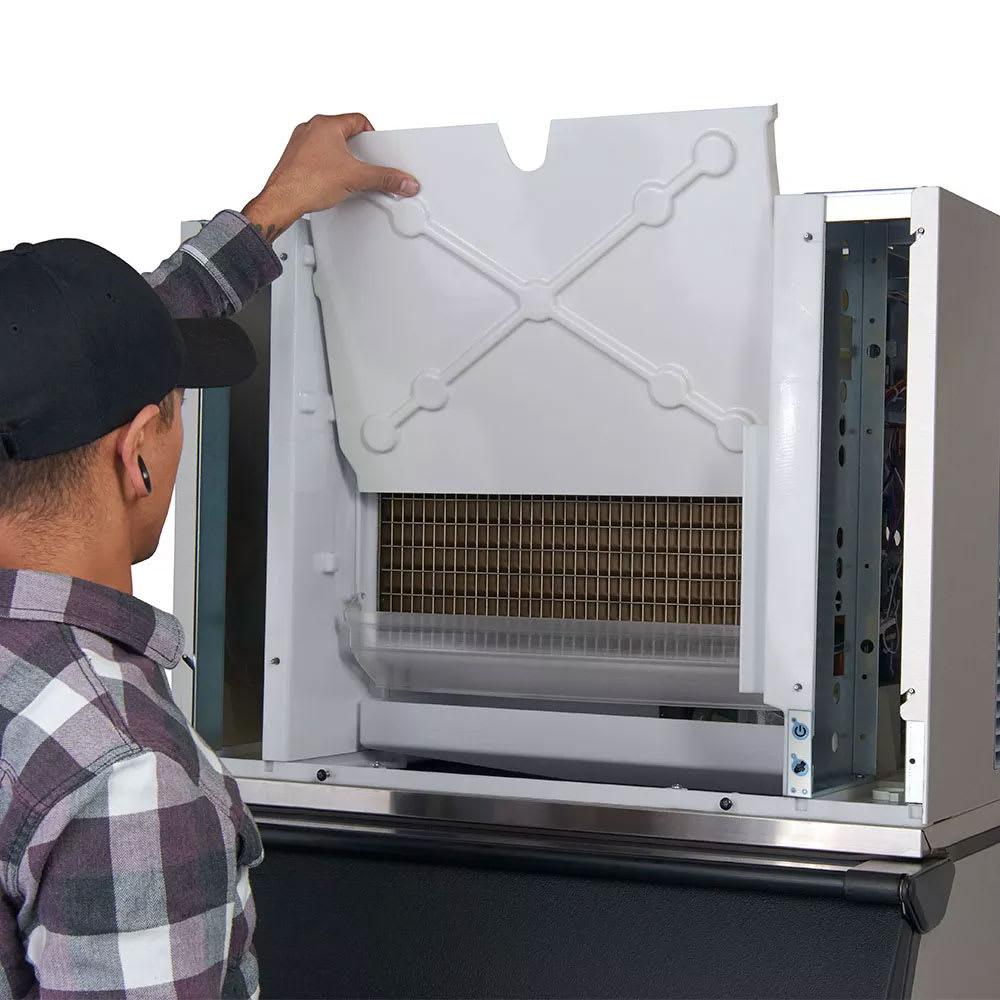

• BPA-free, dishwasher-safe components conveniently snap in and out
• LED indicator light illuminates when cleaning is required

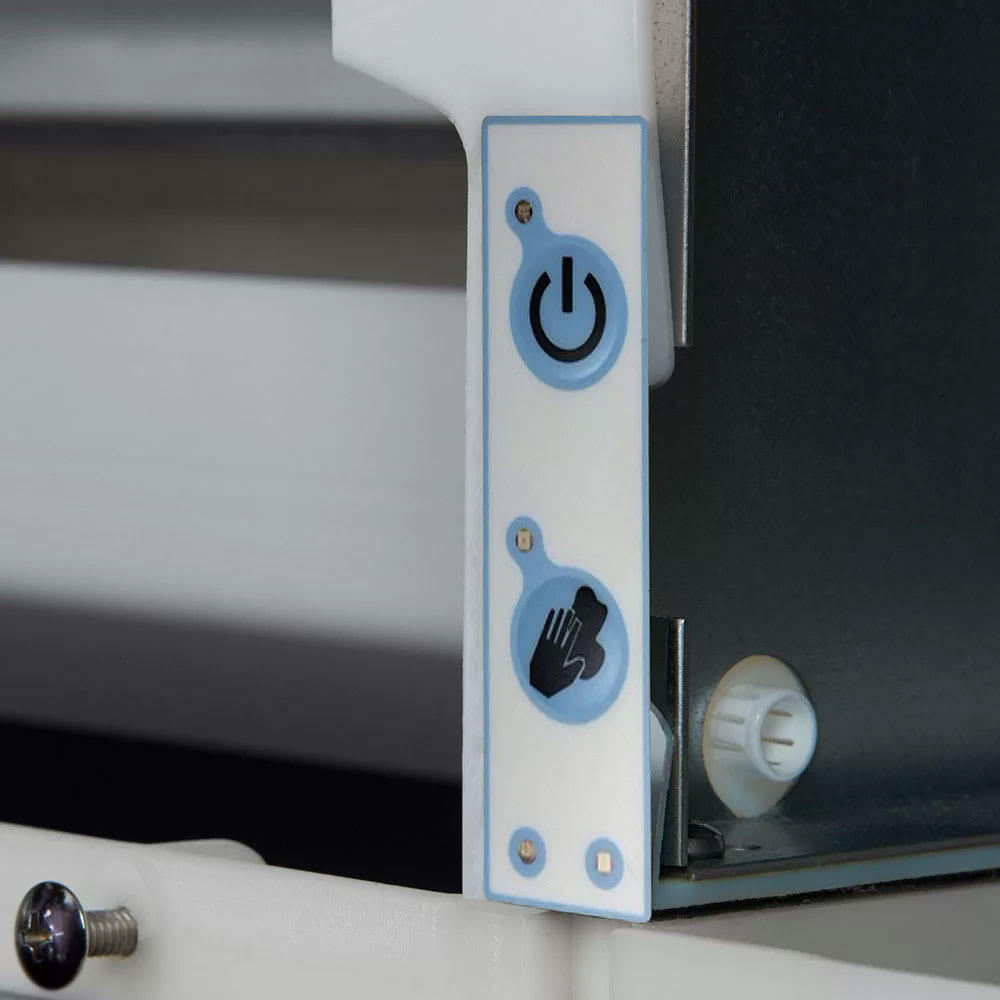

• 1-touch cleaning and sanitizing control

Dimensions & Utilities

• 22.25 in. W x 24.25 in. D x 21.25 in. H
• 11 A, 6.69 kW
• 115 V/60 Hz/1 ph

Elevation Series Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 22″ W, approximately 313 lb production/24 hours at 70°/50° (244 lb at 90°/70°), full-size cubes, Agion built in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 115v/60/1-ph, 11.0 amps, cULus, NSF, CE
