Description

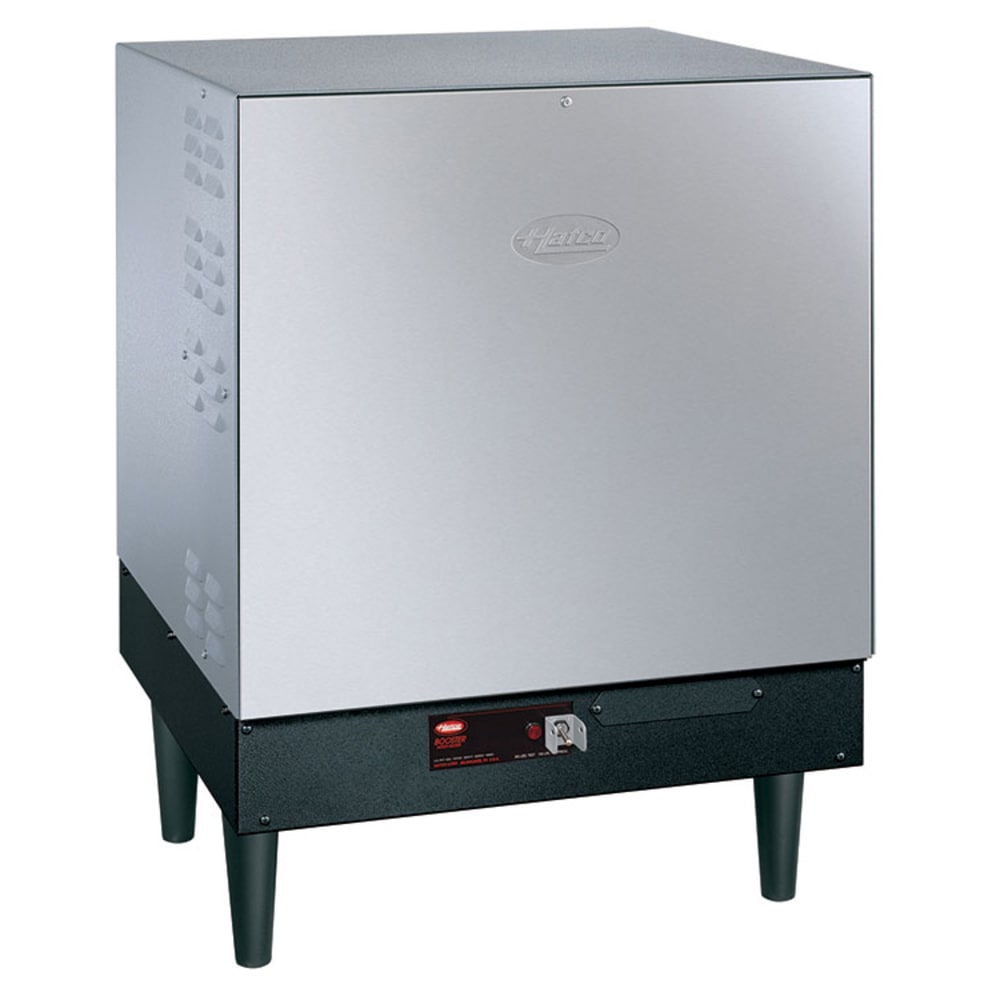

Hatco S-45
The Hatco S-45 booster heater has a 16-gallon tank that uses a heating element system to heat water to 180 degrees Fahrenheit, the necessary temperature for sanitizing dishes in a high-temperature dish machine. Its thermostat can also be adjusted to heat water to 140 degrees Fahrenheit if it is going to be used with a low-temperature machine instead. To use the booster heater, the operator only needs to flip the on/off toggle switch, and a low-water cut-off feature shuts off the heating element when the water level gets too low. A high-temperature limit safety feature shuts the unit off if the temperature goes over the safe limit.
A Castone lining in the tank helps keep the internal components of the Hatco S-45 booster heater protected from corrosion and limescale buildup. For energy efficiency, the tank is surrounded by fiberglass insulation and a heat trap that further prevent heat from being lost into the surrounding environment. When it comes time to service or repair the Imperial booster heater, the front panel is removable to expose vital electrical components. Its heating elements are sheathed in metal for protection.
Product Details
- Part of the Imperial series
- Maximum 452 GPH at 40-degree-F rise
- Maximum 258 GPH at 70-degree-F
- 16-gal. capacity tank is lined with corrosion-resistant Castone
- Pressure-relief valve prevents internal pressure from becoming too high
- Low-water cut-off protects elements from overheating if water runs low
- Built-in heat trap and fiberglass insulation provide energy efficiency
- Cabinet is built with stainless steel front and powder-coated hammertone body
- Pressure-reducing valve ensures incoming water is at the correct pressure
- Pilot light signifies that heater is on
- On/off switch enables the booster heater to be manually turned off
- Equipment is pre-plumbed and pre-wired to simplify installation
- Thermostat can be adjusted to heat water to 140 degrees F for use with low-temp dish machine wash cycles
- Removable front panel provides access to internal components for maintenance
Dimensions & Utilities
- 23.53 in. W x 22.75 in. D x 31.03 in. H
- 108 A, 45 kW
