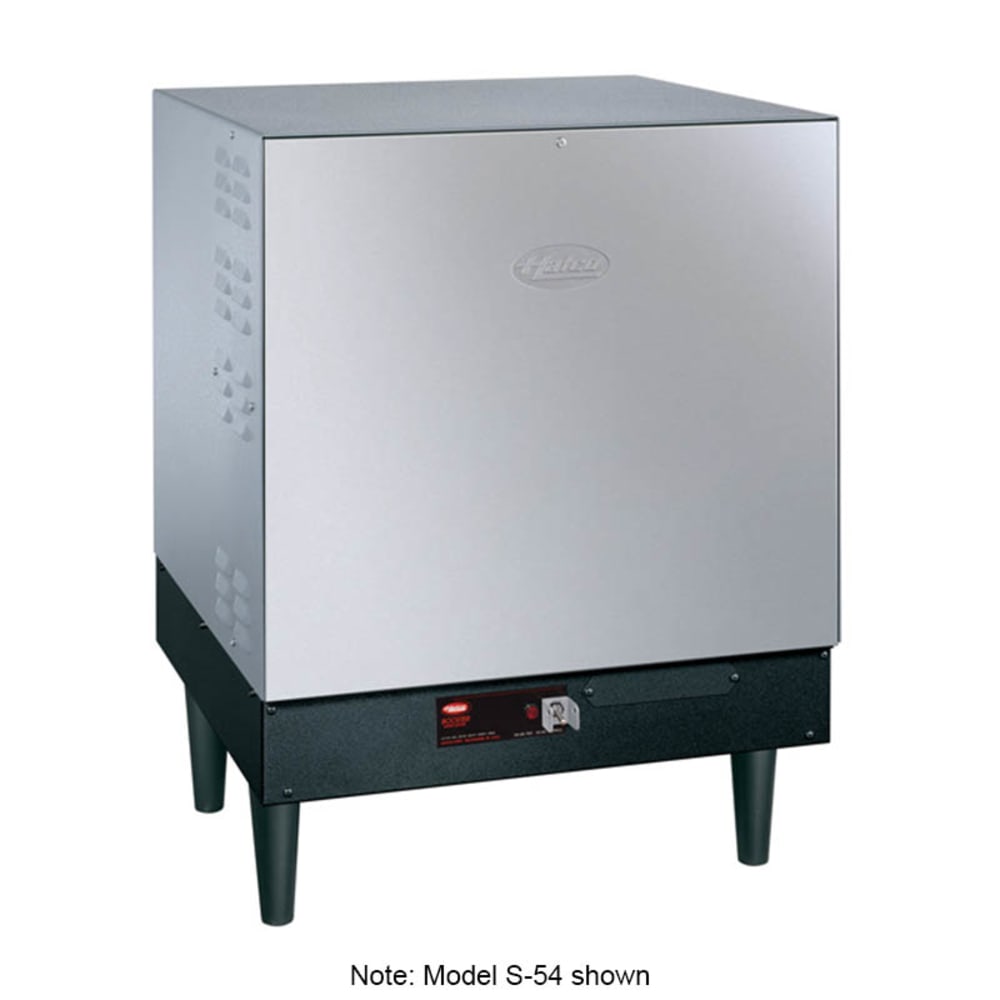

Hatco S-17 Imperial Booster Water Heater, 16 Gallon, 17 1/4 kW

Built for commercial use, the Hatco S-17 Imperial water heater has a hammertone exterior finish and a Castone-lined tank. Both offer corrosion protection, preventing the constant running water from damaging the unit. Other safeguards include a low-water cut-off and high-temperature limit switch, which prevent the elements from burning out or overheating the electronics. This heater also features a temperature/pressure relief valve and pressure reduction valve, which keep those values at safe levels for operation.

This Hatco S-17 water booster heater is designed to raise a water supply to the hot, sanitizing temperature of 180 degrees Fahrenheit. At this temperature, bacteria begins to die off, making the water ideal for the final rinse cycle of a high-temperature dishmachine. For low-temperature machines, this unit also features a 140-degree-Fahrenheit setting. The heater is operated with a front-located on/off switch, and to change the temperature setting, users can conveniently reach through the front cover and turn the thermostat screw.

Product Details

• Part of the Imperial series
• Maximum 173 GPH at 40-degree-F rise
• Maximum 99 GPH at 70-degree-F rise
• Powder-coated hammertone finish adds durability
• Stainless steel front cover provides service access
• 2 temperature pressure gauges
• Temperature/pressure relief valve
• Pressure reduction valve
• Power switch
• Pilot indicator light
• Adjustable thermostat can be set to 180 degrees F or 140 degrees F
• Metal-sheathed elements
• Elements automatically deactivate if water level is too low or temperature is too high
• 16-gal. water tank lined in scale-resistant Castone
• Fiberglass layer around tank for insulation
• Pre-wired and pre-plumbed

Dimensions & Utilities

• 28.53 in. W x 22.75 in. D x 31.03 in. H
• 47.9 A, 17.25 kW
• 208 V/60 Hz/3 ph

From The Manufacturer

Imperial Booster Heater, Electric, 16-gallon storage capacity, 17.25 kW, stainless steel front panel, powder-coated silver-gray hammertone body, 6″ plastic non-adjustable legs, Castone tank, NSF, cUL, UL, 208v/60/3ph

*Image may not depict product color, inclusions or accessories.
