Hatco S-15
The Hatco S-15 Imperial water heater attaches to a water line and dishwasher with 3/4-inch NPT connections. As water runs through it, it heats the water by either 40 or 70 degrees Fahrenheit, raising it to the 180-degree threshold needed for the final rinse cycle. Its water tank has a 16-gallon capacity, and if its water level falls below the elements, the unit stops heating to avoid element burnout. Immersed in water, the thermostat quickly responds to temperature changes and reaches the desired temperature. If the heat level in the tank exceeds safe levels, the unit shuts off, preventing permanent damage.
When components need maintenance or repair, users can quickly reach them through the front panel. This convenient design means the Hatco S-15 water booster heater can be placed right beside other equipment without problems. Built with a hammertone finish and stainless steel front, the unit is durable and stands on 6-inch legs, keeping it away from potential messes on the floor.
Product Details
- Part of the Imperial series
- Maximum 151 GPH at 40-degree-F rise
- Maximum 86 GPH at 70-degree-F rise
- Powder-coated hammertone exterior and stainless steel cover
- Cover provides access to interior parts from the front
- Preset thermostat, pre-wired electronics, and pre-plumbed tank
- Thermostat has 140-degree-F setting for low-temperature dishwashers
- 16-gal.-capacity water tank
- Castone tank liner adds corrosion resistance
- Fiberglass insulation increases warm-up speed and efficiency
- Heating elements only operate if enough water is in the tank
- Elements are sheathed in metal for durability
- Pilot light shows when elements are on
- On/off toggle switch
- High-temperature limit ensures safe internal temperatures
- Pressure/temperature relief valve and pressure reducing valve ensure proper pressure levels
- Gauges for monitoring temperature and pressure
Dimensions & Utilities
- 28.53 in. W x 22.75 in. D x 31.03 in. H
- 72 A, 15 kW
- 208 V/60 Hz/1 ph
From The Manufacturer
Imperial Booster Heater, Electric, 16-gallon storage capacity, 15-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6″ plastic non-adjustable legs, Castone tank, NSF, cUL, UL, 208v/60/1ph

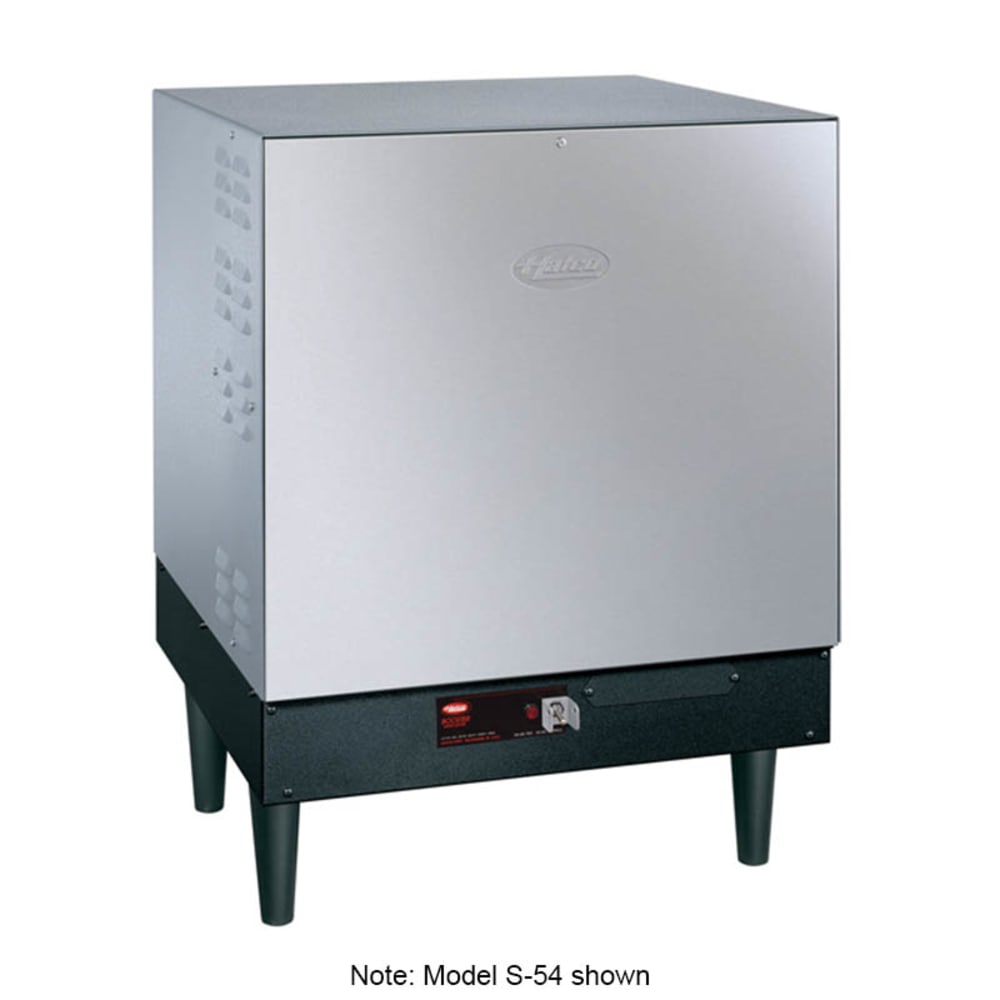

*Image may not depict product color, inclusions or accessories.
