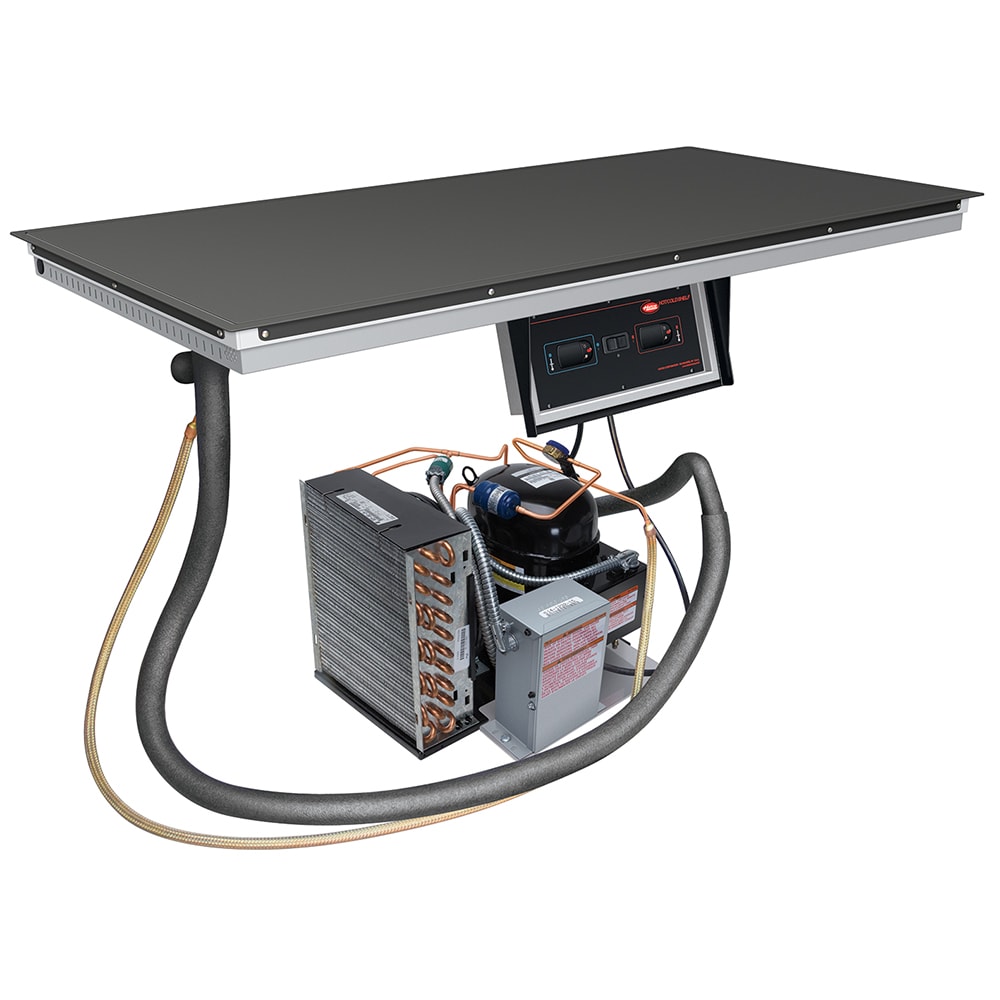

Hatco HCSBF-48-S 49 1/2″ Flush Hot/Cold Shelf w/ Remote Compressor

This Hatco HCSBF-48-S built-in flush-top shelf accommodates frequently changing menus because it can transition between heating and cooling within 30 minutes. Operators can adjust temperatures with the attached electronic temperature control box, and to accommodate available space, the control box and remote condenser can be mounted 4 feet from the shelf’s center. The unattached condenser includes a sight glass, service valves, dryer and filter, and a receiver to facilitate service, while its long, flexible refrigerant line lets operators pull the condenser out for maintenance.

For a sleek, sophisticated presentation, the Hatco HCSBF-48-S hot and cold shelf can be installed into a 49-inch by 25-inch cutout. Its hard-coat aluminum surface transfers temperatures effectively, resists corrosion, and matches Hatco’s GRSBF heated built-in shelves. Its thermal break protects nearby areas from condensation and temperature transfer, suiting buffet and cafeteria lines. This 49.5-inch-wide by 25.5-inch-deep by 10.1-inch-high shelf has a usable shelf space of 48 inches wide by 24 inches deep to accommodate the various sizes and shapes of food pans.

Product Details

• Built-in flush-top design
• Changes between cold and hot modes within 30 minutes
• Hard-coat aluminum surface with thermal break
• Unattached condensing unit with service valves, sight glass, dryer/filter, receiver, and 5-ft. flexible refrigerant line
• R-513A refrigerant
• Attached electronic temperature control box
• Condenser and control box can be mounted 4-ft. away from shelf’s center
• Minimum countertop cutout: 48.6 in. W x 24.6 in. D
• Maximum countertop cutout: 49 in. W x 25 in. D
• Control box cutout: 13.13 in. W x 5.63 in. H

Dimensions & Utilities

• Usable shelf space: 48 in. W x 24 in. D
• Overall: 49.5 in. W x 25.5 in. D x 10.1 in. H
• 9.2 A, 800-1100 W, ⁵/₈ HP
• 120 V/60 Hz/1 ph, NEMA 5-15P plug

From The Manufacturer

Hot/Cold Shelf, built-in flush top, 48″ W x 24″ D, electronic temperature control, condensing unit, aluminum hardcoat, top mount, cULus, Made in USA

*Image may not depict product color, inclusions or accessories.
