Description
Hatco HCSBF-48-I

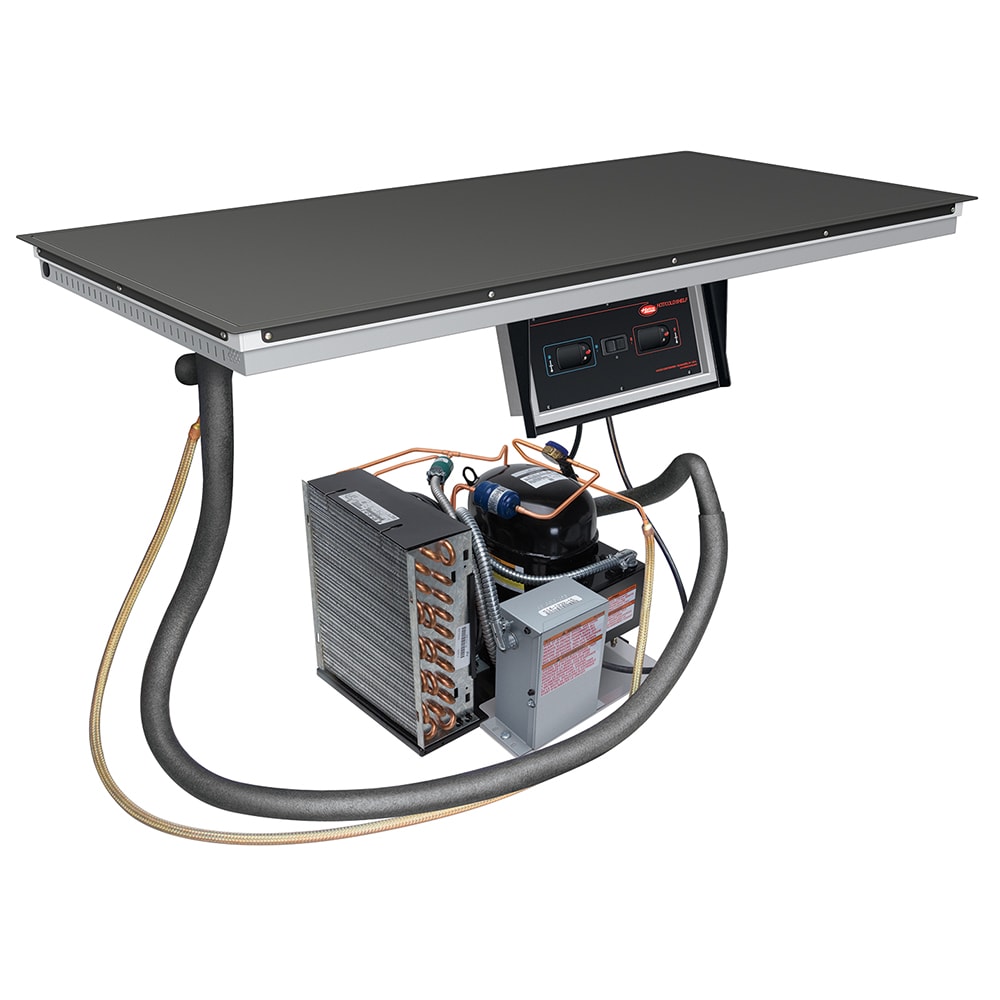

For holding pizzas, casseroles, pastas, salads, and desserts, the Hatco HCSBF-48-I heating and cooling shelf provides a wide temperature range that accommodates varying holding requirements. Its unattached condenser includes a long, flexible refrigerant line to facilitate extraction, while its sight glass, service glass, dryer and filter, and receiver simplify servicing. Operators can alter temperatures with the attached electronic temperature control box, and for quick adjustments, this unit can transition between cold and hot modes within 30 minutes. Both the condensing unit and control box can be mounted 4 feet from the shelf’s center.
This Hatco HCSBF-48-I hot and cold shelf measures 49.5 inches wide by 21 inches deep by 10.1 inches high overall and provides a 48-inch-wide by 19.5-inch-deep heating and cooling surface. For a cohesive presentation, it can be installed in a 49-inch-wide by 20.5-inch-deep countertop cutout. Its corrosion-resistant hard-coat aluminum surface matches Hatco’s GRSBF heated built-in shelves for an integrated appearance, and it includes a thermal break that protects nearby areas from temperature transfer and condensation.
Product Details
- Built-in flush-top configuration
- Transitions between cold and hot modes within 30 minutes
- Hard-coat aluminum surface
- Thermal break design
- Attached electronic temperature control box
- Unattached condensing unit with service valves, sight glass, dryer/filter, receiver, and 5-ft. flexible refrigerant line
- R-513A refrigerant
- Condenser and control box can be mounted 4-ft. away from shelf’s center
- Minimum countertop cutout: 48.6 in. W x 20.1 in. D
- Maximum countertop cutout: 49 in. W x 20.5 in. D
- Control box cutout: 13.13 in. W x 5.63 in. H
Dimensions & Utilities
- Usable shelf space: 48 in. W x 19.5 in. D
- Overall: 49.5 in. W x 21 in. D x 10.1 in. H
- 7.4 A, 450-890 W, 1/3 HP
- 120 V/60 Hz/1 ph, NEMA 5-15P plug
From The Manufacturer
Hot/Cold Shelf, built-in flush top, 48″ W x 19-1/2″ D, electronic temperature control, condensing unit, aluminum hardcoat, top mount, cULus, Made in USA
*Image may not depict product color, inclusions or accessories.
