Description

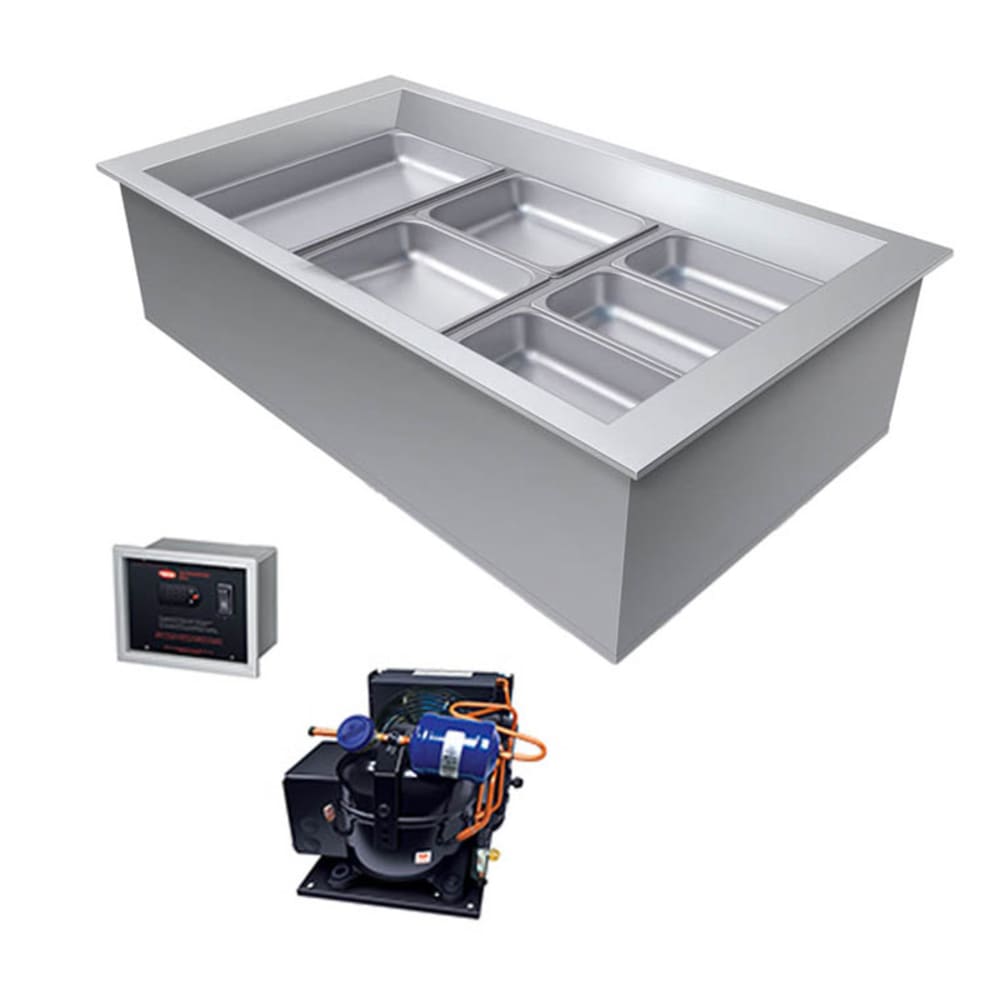

Hatco CWBR-3
The Hatco CWBR-3 remote refrigerated drop-in well is a top-mount unit measuring 45 inches wide by 27 inches deep by 12 inches high. For a cohesive, streamlined appearance on serving lines, it can be dropped into a cutout as small as 4313/100 inches wide by 2519/100 inches deep or as large as 44 inches wide by 26 inches deep. Made of aluminized steel with a stainless steel bezel, this corrosion-resistant unit is durable enough to endure long-term front- or back-of-house use; it also matches all Hatco wells for an integrated appearance. This cold well accommodates three full-size food pans and includes support bars to secure them in place. To ease cleaning, it includes an 1-inch NPT brass drain.
The Hatco CWBR-3 cold well’s cold-wall construction uses R-513A refrigerant to ensure foods remain at optimal temperatures without drying out. Its angled interior wall lets cold air blanket prechilled food to minimize warm spots that could affect product quality. To retain chill in warm ambient settings, the unit’s sides and base are insulated. The included condensing unit can be field mounted as far as 50 feet from the cold well, while the control panel includes 9-foot-long probe wires for flexibility in operator control locations. To minimize hands-on maintenance requirements, the control panel features an auto-defrost mechanism that reduces icy buildup.
Product Details
- Accommodates (3) 12-in. x 20-in. food pans
- Top-mount, drop-in configuration
- Minimum cutout dimensions: 4313/100 in. W x 2519/100 in. D
- Maximum cutout dimensions: 44 in. W x 26 in. D
- Condensing unit includes compressor, sight glass, service valves, receiver, and filter/dryer
- Condensing unit ships loose and can be field mounted 50 ft. away
- Control panel includes 9-ft.-long probe wires
- Auto-defrost mechanism
- Aluminized steel housing features stainless steel bezel
- Angled interior wall blankets food with cool air
- Environmentally friendly insulation
- Cold-wall construction
- R-513A refrigerant
- Pan support bars
- 1-in. NPT brass drain
- 1,768-BTU heat transfer capacity
Dimensions & Utilities
- Condenser: 1431/50 in. W x 1227/100 in. D x 1137/100 in. H
- Overall: 45 in. W x 27 in. D x 12 in. H
- 3.8 A, 300 W, 1/5 HP
- 120 V/60 Hz/1 ph
From The Manufacturer
Drop-In Refrigerated Well, (3) pan size, top mount, electronic temperature control, auto defrost, pan support bars for full-size pans, sight glass, service valves, dryer/filter, insulated with 1″ drain, aluminized steel housing, stainless steel bezel, remote refrigeration, condensing unit, control panel, TXV valve (shipped loose) & filter-drier, utilizes R-513A refrigerant, 1/5 HP, cULus, 120v/60/1ph
*Image may not depict product color, inclusions or accessories.
