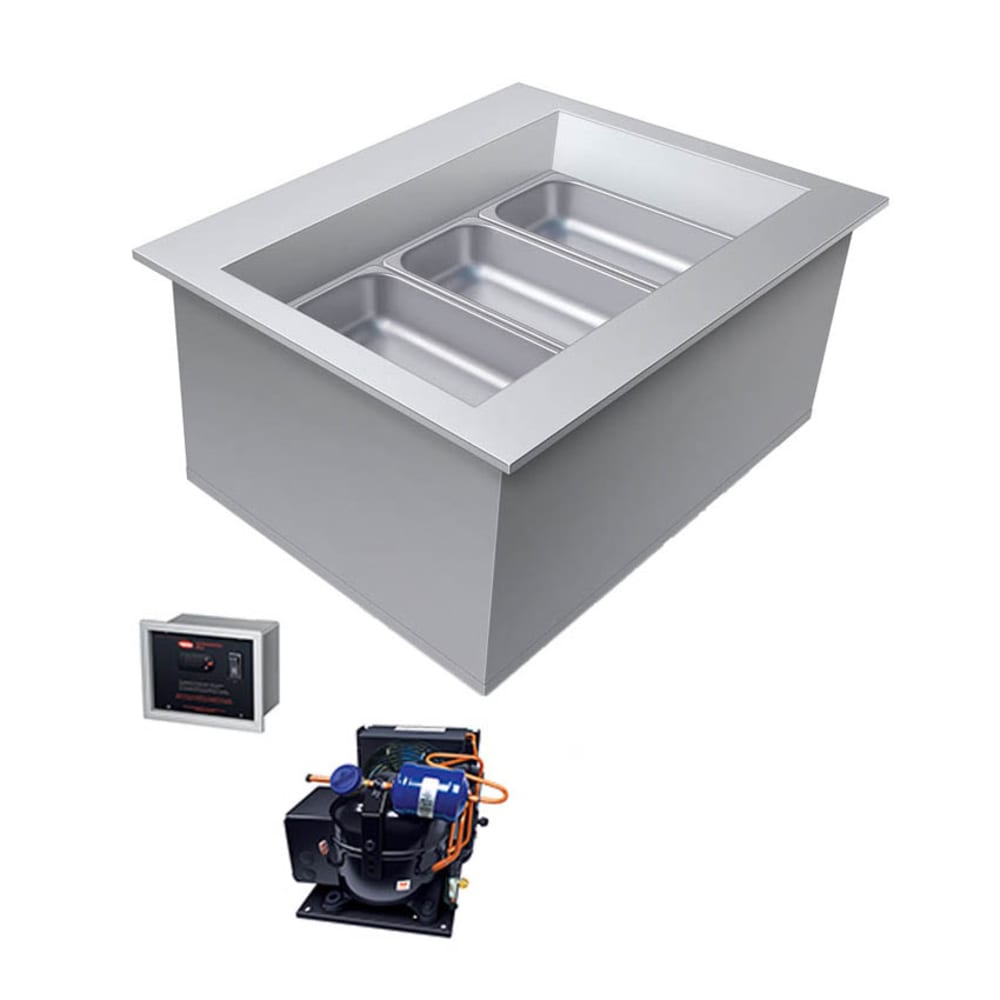

Hatco CWBR-1 19″ Drop-In Refrigerator w/ (1) Pan Capacity,Remote

The Hatco CWBR-1 drop-in well’s condensing unit uses R-513A refrigerant to produce cool temperatures, keeping prechilled products fresh for hours. Staff can adjust temperatures with the control panel to accommodate changing menus and initiate an automatic defrost to eliminate unsightly ice buildup. The angled interior wall enables cool air to blanket the displayed food pan for uniform temperature distribution. To ease condenser maintenance, this unit includes a sight glass, service valves, a receiver, and a filter/dryer. Because it’s built with a 1-inch NPT drain, cleaning between uses is streamlined.

To accommodate various food bar setups, the Hatco CWBR-1 refrigerated drop-in well’s condensing unit and control panel ship unassembled for remote installation. The condensing unit can be field mounted up to 50 feet away from the unit for convenience and improved performance, while the control panel includes 9-foot-long probe wires. This 19-inch-wide by 27-inch-deep by 12-inch-tall unit can be dropped into a cutout as small as 17¹³/₁₀₀ inches wide by 25¹⁹/₁₀₀ inches deep and as large as 18 inches wide by 26 inches deep for a recessed, streamlined appearance. To complement other pieces of Hatco equipment, it’s made of aluminized steel and includes a stainless steel bezel. Great for appetizers, entrees, or sides, it accommodates one 12-inch by 20-inch food pan.

Product Details

• Accommodates (1) 12-in. x 20-in. food pan
• Top-mount, drop-in unit
• Minimum cutout dimensions: 17¹³/₁₀₀ in. W x 25¹⁹/₁₀₀ in. D
• Maximum drop-in dimensions: 18 in. W x 26 in. D
• Resilient, corrosion-resistant aluminized steel housing
• Angled interior wall enhances airflow
• Remote-cooled unit
• Condenser can be installed 50 ft. from unit
• Control panel ships loose with 9-ft.-long probe wires
• Auto-defrost mechanism
• R-513A refrigerant
• Sight glass, service valves, dryer/filter, and receiver for simple servicing
• Stainless steel bezel
• 1-in. NPT brass drain
• 1,288-BTU heat transfer capacity

Dimensions & Utilities

• Condenser: 14³¹/₅₀ in. W x 12²⁷/₁₀₀ in. D x 11³⁷/₁₀₀ in. H
• Control panel: 8¹⁹/₁₀₀ in. W x 4⁴⁷/₁₀₀ in. D x 6¹/₂ in. H
• Overall: 19 in. W x 27 in. D x 12 in. H
• 3.8 A, 300 W, ¹/₅ HP
• 120 V/60 Hz/1 ph, cord with NEMA 5-15P plug

From The Manufacturer

Drop-In Refrigerated Well, (1) pan size, top mount, electronic temperature control, auto defrost, sight glass, service valves, dryer/filter, insulated with 1″ drain, aluminized steel housing, stainless steel bezel, remote refrigeration, condensing unit, control panel and TXV valve (shipped loose), utilizes R-513A refrigerant, cULus, Made in USA
