Description

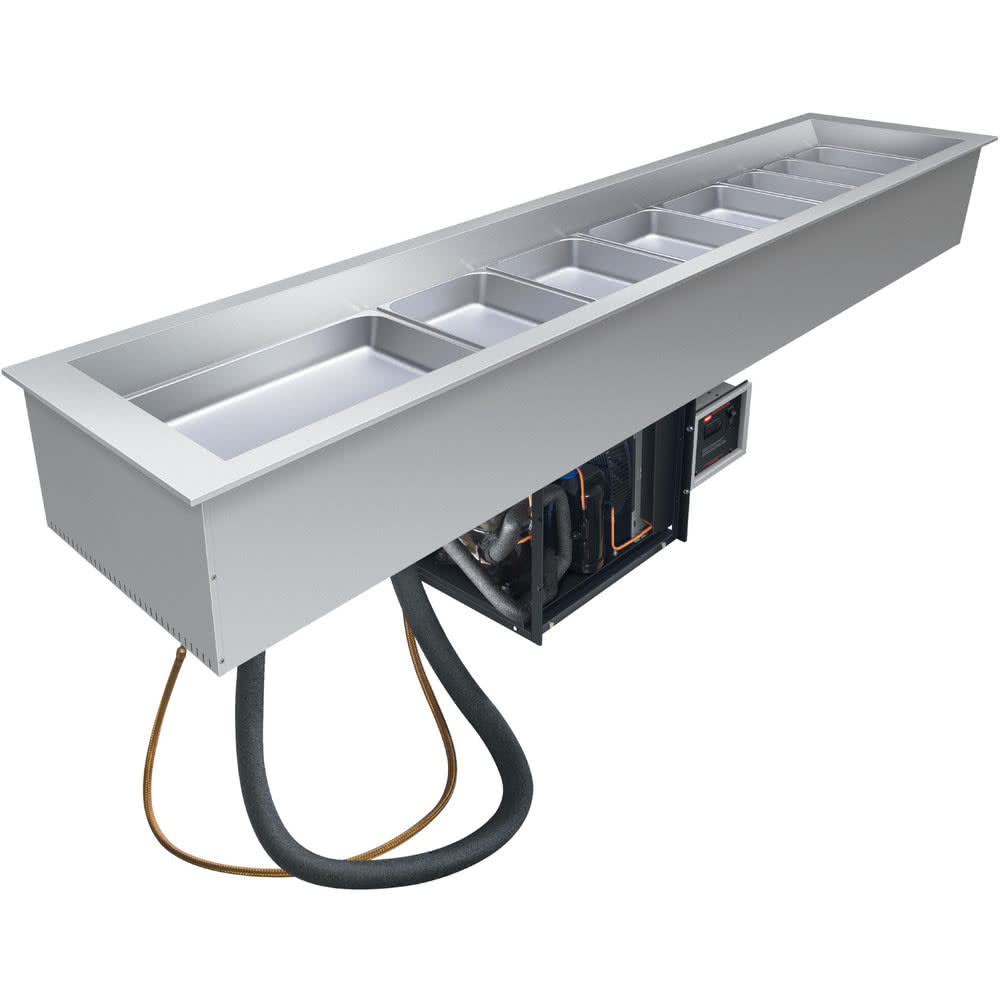

Hatco CWB-S4
The Hatco CWB-S4 slim drop-in well can accommodate four full-size food pans positioned lengthwise to provide various product offerings on food bars and buffet tables. For a classic appearance, its 901/4-inch-wide by 1847/50-inch-deep by 261/25-inch-tall body can be installed in a cutout as large as 8911/50 inches wide by 1747/50 inches deep. To ease installation, its condensing unit can be rotated by 180 degrees or repositioned to the left in 443/50-inch increments. Its aluminized steel housing resists corrosion, simplifies cleaning, provides lasting durability, and matches other Hatco wells.
To create an appropriate holding environment for various prechilled items, operators can adjust the Hatco CWB-S4 refrigerated food well’s temperatures with the corresponding electronic control. Its cold-wall construction uses R-513A refrigerant to ensure food remains fresh without drying out. To promote uniform chilling, its features precisely positioned coils and an angled interior wall that lets cool air blanket the pans. Eco-friendly insulated is integrated into the base and sides to preserve temperatures while reducing energy consumption. To eliminate unsightly ice buildup that could affect product quality, this unit features an automatic defrost mechanism that’s activated through the electronic controller.
Product Details
- Capacity: 4 full-size food pans
- Top-mounted, drop-in unit with slim design
- Minimum cutout dimensions: 8819/50 in. W x 173/50 in. D
- Maximum cutout dimensions: 8911/50 in. W x 1747/50 in. D
- Aluminized steel housing with stainless steel bezel
- Sides and base constructed with environmentally friendly insulation
- Cold-wall construction
- Angled interior wall blankets pans with cool air
- Long, flexible, removable refrigerant line
- R-513A refrigerant
- Electronic temperature control with automatic defrost mechanism
- Condensing unit (compressor, sight glass, service valves, receiver, and dryer/filter)
- Condensing unit can be rotated 180 degrees or repositioned to the left in 443/50-in. increments
- 1-in. NPT brass drain
- 3,954-BTU heat transfer capacity
Dimensions & Utilities
- 901/4 in. W x 1847/50 in. D x 261/25 in. H
- 8.7 A, 800 W, 5/8 HP
- 120 V/60 Hz/1 ph, includes NEMA 5-15P plug
From The Manufacturer
Drop-In Refrigerated Slim Well, (4) full-size pans, top mount, electronic temperature control, auto defrost, mobile condensing unit, sight glass, service valves, dryer/filter, insulated with 1″ drain, aluminized steel housing, stainless steel bezel, 5/8 HP
*Image may not depict product color, inclusions or accessories.
