Description

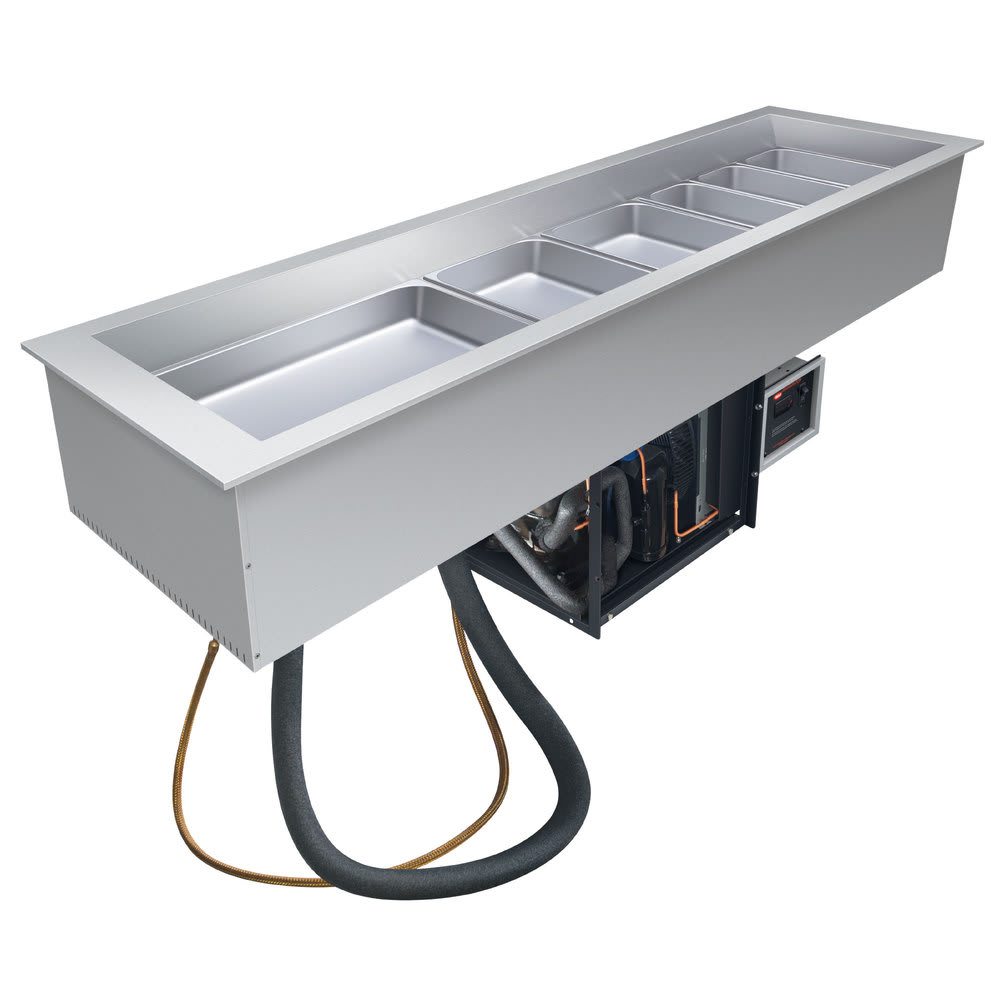

Hatco CWB-S3
The Hatco CWB-S3 drop-in refrigerated food well accommodates three full-size food pans placed lengthwise. Great for prechilled fruits, pasta salad, or refrigerated desserts, this unit’s cold-wall construction uses R-513A refrigerant to produce and maintain safe temperatures without drying the contents out. Its angled interior wall configuration blankets the pans uniformly with cold air, and the insulated sides and base preserve chill in warm settings. Employees can set temperatures with the corresponding electronic temperature control as inventory is rotated, and to eliminate frost accumulation, it’s equipped with an automatic defrost mechanism.
The Hatco CWB-S3 refrigerated food well is a slim, top-mounted unit measuring 6919/100 inches wide by 1847/50 inches deep by 261/25 inches high. For a cohesive, integrated appearance on food bars and self-service lines, this aluminized steel unit can be dropped in a cutout as large as 684/25 inches wide by 1747/50 inches deep. Its condensing unit includes a sight glass, service valves, a dryer/filter, and a receiver, and it can be rotated 180 degrees to adjust venting and ease installation. To create a convenient workstation, it can also be moved left in 443/50-inch increments. This unit’s 1-inch NPT brass drain simplifies cleanup after use.
Product Details
- Accommodates 3 full-size food pans
- Drop-in, top-mounted unit
- Slim configuration
- Minimum cutout dimensions: 6731/100 in. W x 173/50 in. D
- Maximum cutout dimensions: 684/25 in. W x 1747/50 in. D
- Made of rugged, corrosion-resistant aluminized steel housing
- Eco-friendly insulation built into sides and base
- Angled interior wall enhances air circulation
- Cold-wall construction
- Long, flexible refrigerant line is removable
- R-513A refrigerant
- Electronic temperature control with automatic defrost mechanism
- Condensing unit (compressor, sight glass, service valves, receiver, and dryer/filter)
- Condensing unit can be rotated 180 degrees or adjusted in 443/50-in. increments from the left
- Stainless steel bezel
- 1-in. NPT brass drain
- 2,439-BTU heat transfer capacity
Dimensions & Utilities
- 6919/100 in. W x 1847/50 in. D x 261/25 in. H
- 5.9 A, 450 W, 1/3 HP
- 120 V/60 Hz/1 ph, includes NEMA 5-15P plug
From The Manufacturer
Drop-In Refrigerated Slim Well, (3) full-size pans, top mount, electronic temperature control, auto defrost, mobile condensing unit, sight glass, service valves, dryer/filter, insulated with 1″ drain, aluminized steel housing, stainless steel bezel, 1/3 HP
