Description

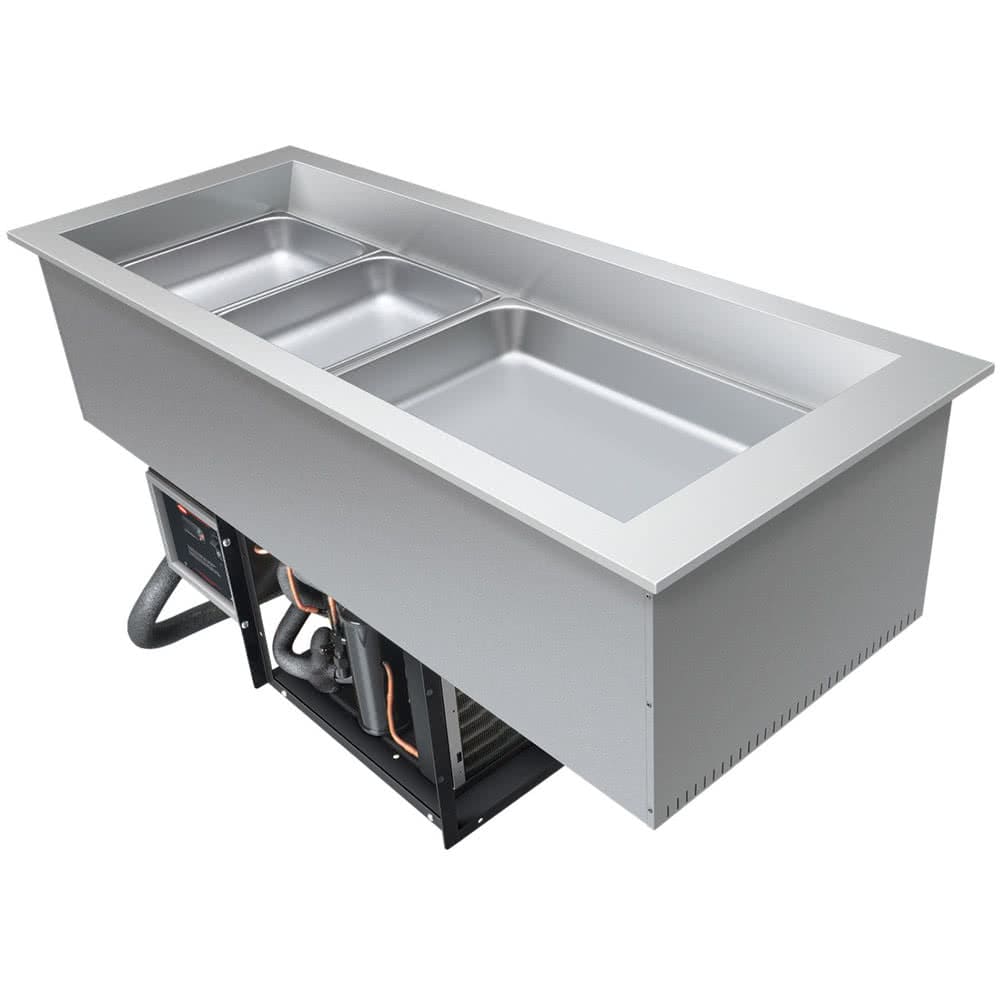

Hatco CWB-S2
So prechilled foods remain cold on food bars and buffet lines, the Hatco CWB-S2 refrigerated drop-in well features a cold-wall construction using R-513A refrigerant to hold product at safe temperatures without drying them out. Staff can adjust temperature with the corresponding electronic control, and to minimize icy buildup, this panel is built with automatic defrost. While the angled interior wall lets cool air blanket the food pans, the unit’s insulated sides and bottom retain temperatures to minimize energy consumption in warm environments.
With its slim size and drop-in configuration, the Hatco CWB-S2 refrigerated cold well enhances accessibility and creates a sleek, streamlined appearance in food bars. This 4813/100-inch-wide by 1847/50-inch-deep by 261/25-inch-tall unit accommodates two full-size food pans and can be installed in cutouts as large as 479/100 inches wide by 1747/50 inches deep. To adjust venting and enhance flexibility during installation, its condensing unit can be rotated 180 degrees Fahrenheit or be moved left in 443/50-inch increments. This component includes a sight glass, service valves, a dryer/filter, and a receiver, and to ease maintenance, its long, flexible refrigerant line is simple to extract.
Product Details
- Capacity: 2 full-size food pans
- Slim, drop-in configuration is top mounted
- Minimum cutout dimensions: 461/4 in. W x 173/50 in. D
- Maximum cutout dimensions: 479/100 in. W x 1747/50 in. D
- Aluminized steel housing features stainless steel bezel
- Angled interior wall promotes uniform chilling
- Environmentally friendly insulation built into base and sides
- Cold-wall construction
- Long, flexible, and removable refrigerant line
- R-513A refrigerant
- Electronic temperature control
- Automatic defrost mechanism
- Condensing unit includes compressor, sight glass, service valves, receiver, and dryer/filter
- Condensing unit can be rotated 180 degrees or adjusted in 443/50-in. increments
- 1-in. NPT brass drain
- 1,608-BTU heat transfer capacity
Dimensions & Utilities
- 4813/100 in. W x 1847/50 in. D x 261/25 in. H
- 3.8 A, 300 W, 1/5 HP
- 120 V/60 Hz/1 ph, includes NEMA 5-15P plug
From The Manufacturer
Drop-In Refrigerated Slim Well, (2) full-size pans, top mount, electronic temperature control, auto defrost, mobile condensing unit, sight glass, service valves, dryer/filter, insulated with 1″ drain, aluminized steel housing, stainless steel bezel, 1/5 HP
*Image may not depict product color, inclusions or accessories.
