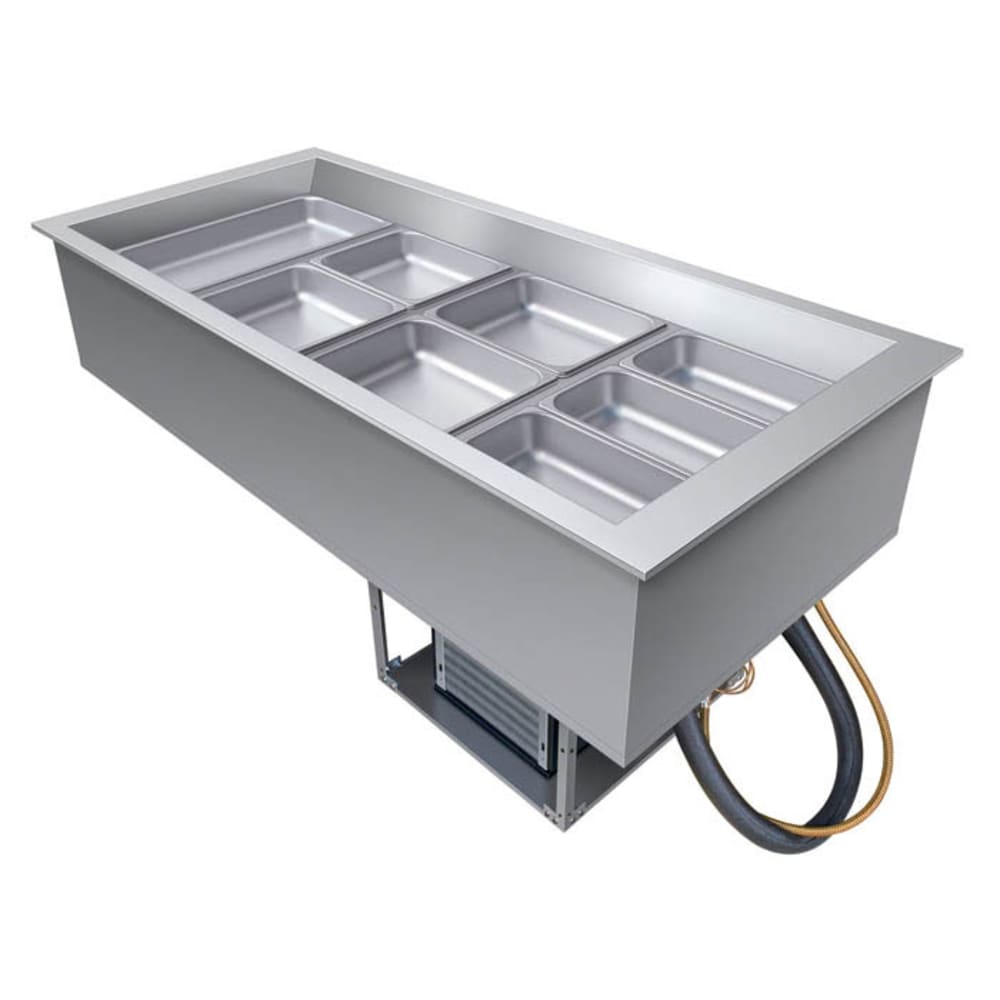

Hatco CWB-4 58″ Drop-In Refrigerator w/ (4) Pan Capacity, Cold Wall Cooled

Great for buffet lines and salad bars, the Hatco CWB-4 drop-in well’s 58-inch-wide by 27-inch-deep by 25¹/₂-inch-tall body accommodates four full-size food pans. For a sleek, recessed appearance, it can be dropped into a cutout as large as 57 inches wide by 26 inches deep. This corrosion-resistant aluminized steel unit provides lasting durability through front-of-house use and matches other refrigerated food wells from Hatco, establishing uniformity along buffet lines. For simple cleanup between uses, it’s built with a 1-inch NPT brass drain. Users can simply perform maintenance using the sight glass, service valves, dryer/filter, receiver, and long, flexible refrigerant line. To ease installation, the condenser can be rotated 90 or 180 degrees.

The Hatco CWB-4 refrigerated well generates and maintains safe, cool temperatures with R-513A refrigerant. Operators can adjust temperatures with the advanced electronic controller, which can be installed remotely or on either side of the condensing unit. This controller includes an auto-defrost setting that eliminates frost buildup to preserve product quality and maintain a professional display. Its angled interior wall enables cool air to blanket the food pans, while environmentally friendly insulation built throughout the unit retains chill.

Product Details

• Accommodates (4) 12-in. x 20-in. food pans
• Top-mount, drop-in design
• Minimum cutout dimensions: 56¹³/₁₀₀ in. W x 25¹⁹/₁₀₀ in. D
• Maximum cutout dimensions: 57 in. W x 26 in. D
• Aluminized steel housing with a stainless steel bezel
• Environmentally friendly insulation integrated throughout unit
• Angled interior wall enhances airflow
• Condenser can be rotated 90 or 180 degrees
• Advanced electronic controller can be installed remotely on either side of the condenser
• Auto-defrost mechanism
• R-513A refrigerant
• Sight glass, service valves, dryer/filter, and receiver for simple servicing
• Long, flexible refrigerant line
• 1-in. NPT brass drain
• 2,519-BTU heat transfer capacity

Dimensions & Utilities

• 58 in. W x 27 in. D x 25¹/₂ in. H
• 5.9 A, 450 W, ¹/₃ HP
• 120 V/60 Hz/1 ph, cord with NEMA 5-15P plug

From The Manufacturer

Drop-In Refrigerated Well, (4) pan size, top mount, electronic temperature control, pan support bars for full-size pans, condenser unit (can be rotated), sight glass, service valves, dryer/filter, insulated with drain, aluminized steel housing, stainless steel bezel, 1/3hp, 120v/60/1-ph, NEMA 5-15P, cULus, Made in USA

*Image may not depict product color, inclusions or accessories.
