Hatco CWB-1 19″ Drop-In Refrigerator w/ (1) Pan Capacity, Cold Wall Cooled

The Hatco CWB-1 drop-in refrigerated well’s condenser uses R-513A refrigerant to hold prechilled vegetables, fruit, pasta salad, or sandwich ingredients at cool, safe temperatures for extended periods of time without drying them out. Its angled inside wall lets cool air blanket products, chilling them uniformly. Insulation built into the sides and bottom retains chill and minimizes energy consumption. So staff can adjust the unit temperature as menus change, it includes an electronic control assembly that can be mounted on either side of the condensing unit or installed remotely. This controller features an automatic defrost setting that eliminates unseemly ice buildup. To ease maintenance, this unit is built with a sight glass, service valves, a dryer and filter, a receiver, and a long, flexible refrigerant line, and its condensing unit can be rotated 90 or 180 degrees to adjust venting and enhance flexibility during installation.

The Hatco CWB-1 refrigerated food well is a top-mount, 19-inch-wide by 27-inch-deep by 25¹/₂-inch-high unit that can be dropped into a cutout as small as 17¹³/₁₀₀ inches wide by 25¹⁹/₁₀₀ inches deep or as large as 18 inches wide by 26 inches deep. Great for entrees or sides, it accommodates one full-size 12-inch by 20-inch food pan. Its resilient aluminized steel construction matches other Hatco food wells for uniformity on buffet lines, and it’s durable enough to withstand high-volume front-of-house use. To simplify cleaning between uses, it’s built with a 1-inch NPT brass drain.

Product Details

• Accommodates (1) 12-in. x 20-in. food pan
• Top-mount, drop-in configuration
• Minimum cutout dimensions: 17¹³/₁₀₀ in. W x 25¹⁹/₁₀₀ in. D
• Maximum cutout dimensions: 18 in. W x 26 in. D
• Condenser can be rotated 90 or 180 degrees
• Advanced electronic controller can be installed remotely or on either side of the condenser
• Auto-defrost mechanism
• Aluminized steel housing with a stainless steel bezel
• Angled inside wall blankets food with cool air
• Environmentally friendly insulation
• Sight glass, service valves, dryer/filter, and receiver for simple servicing
• Long, flexible refrigerant line
• R-513A refrigerant
• 1-in. NPT brass drain
• 1,288-BTU heat transfer capacity

Dimensions & Utilities

• 19 in. W x 27 in. D x 25¹/₂ in. H
• 3.8 A, 300 W, ¹/₅ HP
• 120 V/60 Hz/1 ph, cord with NEMA 5-15P plug

From The Manufacturer

Drop-In Refrigerated Well, (1) pan size, top mount, electronic temperature control, pan support bars for full-size pans, condenser unit (can be rotated), sight glass, service valves, dryer/filter, insulated with drain, aluminized steel housing, stainless steel bezel, 120v/60/1ph

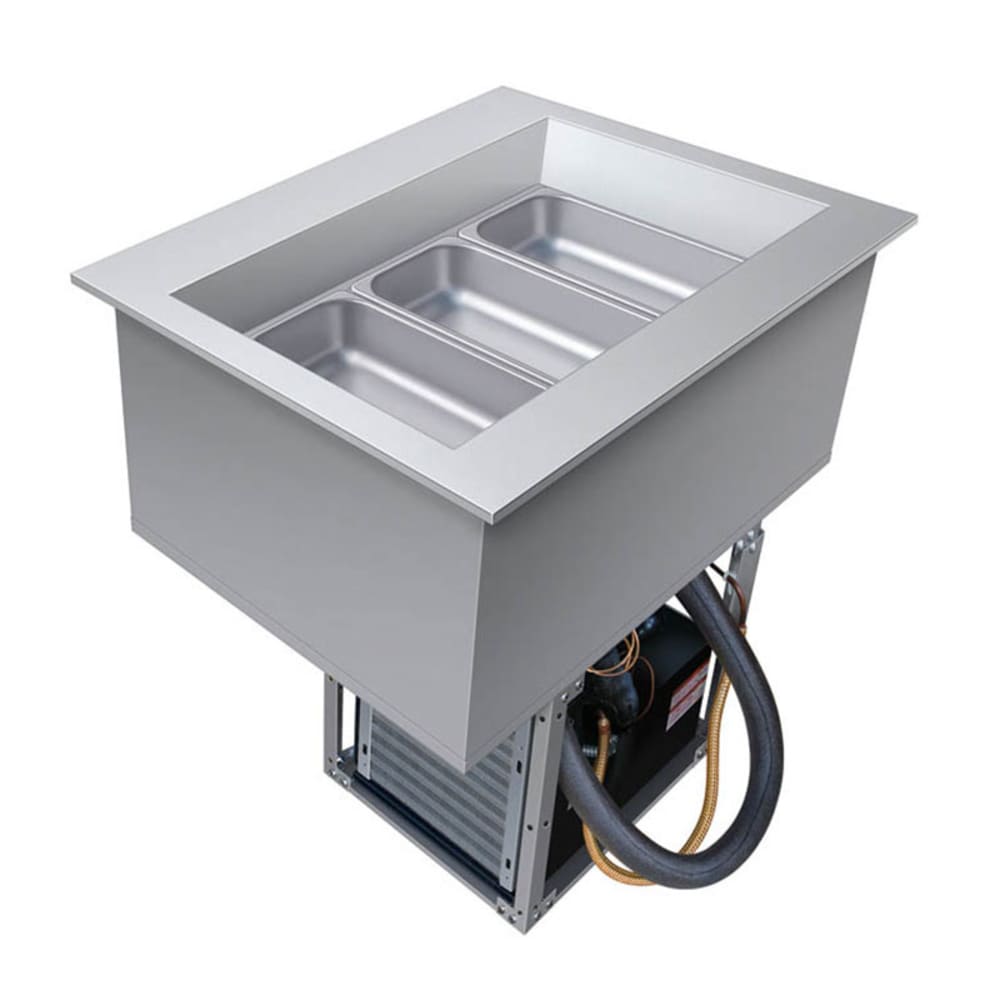

*Image may not depict product color, inclusions or accessories.
