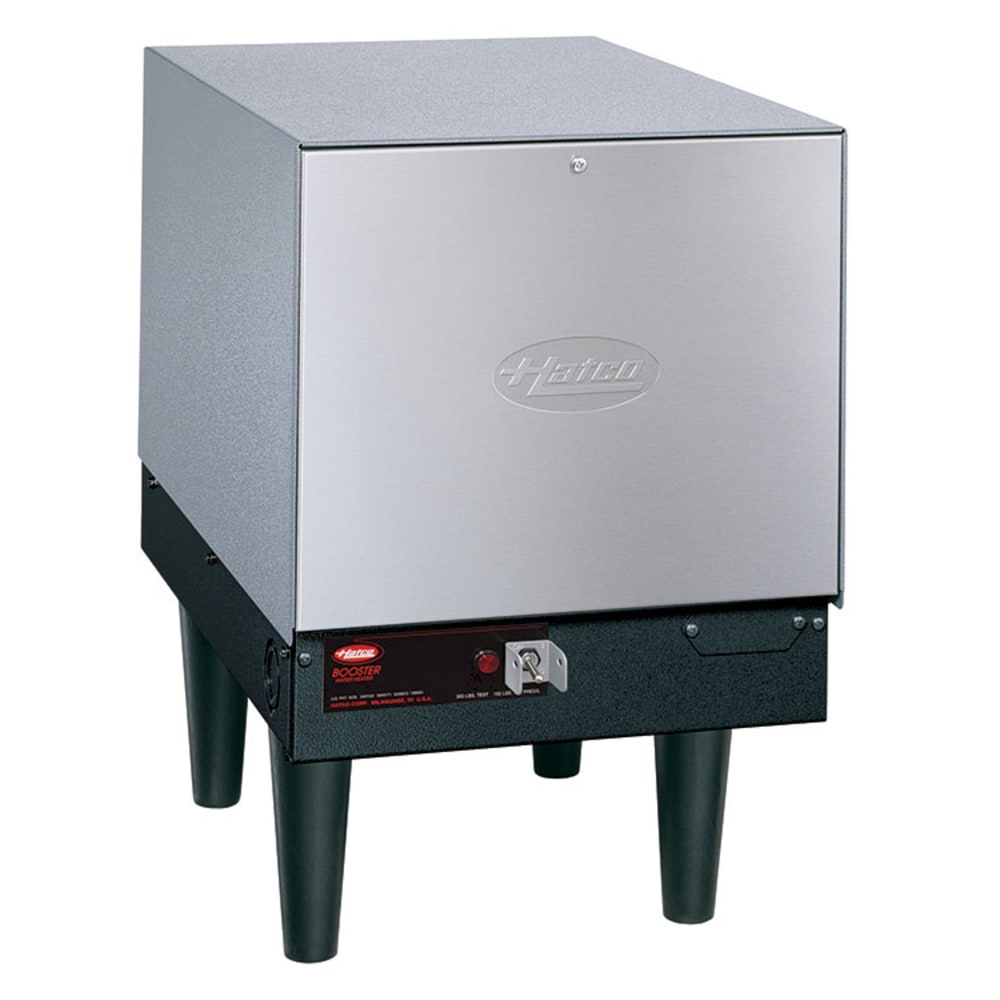

Hatco C-9 Compact Booster Water Heater, 6 Gallon, 9 kW

The Hatco C-9 booster heater raises water to 180 degrees Fahrenheit, the necessary level to sanitize dishes. Its 6-gallon tank is lined with Castone, a lasting substance similar to concrete that protects the tank from corrosion and limits limescale buildup. Fiberglass insulation keeps heat inside and provides energy efficiency.

To simplify installation, the Hatco C-9 booster heater is plumbed and wired at the factory, and a swing-away front panel gives service technicians access to electrical components during servicing. For safety, a high-limit switch shuts the heater off if the temperature exceeds the safety maximum. A low-water cut-off switch turns the heating element off when the water level is low, and its pressure-relief valve turns off when there is too much pressure in the unit.

Product Details

• Provides final rinse water at 180 degrees F for high-temperature dish machines
• Maximum 90 GPH at 40-degree-F rise
• Maximum 52 GPH at 70-degree-rise
• 6-gal.-capacity, Castone-lined tank is protected from corrosion and resists limescale buildup in areas with hard water
• Pressure-relief valve prevents high-pressure buildup
• High-limit switch and low-water switch prevent damage to equipment components by shutting off burner if unit begins to overheat
• Fiberglass insulation helps prevent tank from losing heat to ambient air
• Built-in heat trap prevents heat loss through the cold water inlet
• Ships pre-plumbed and pre-wired to simplify installation
• Swing-away front panel gives access to internal components for service and maintenance
• Stainless steel panel and powder-coated body are scratch resistant

Dimensions & Utilities

• 13.06 in. W x 26 in D x 19.78 in. H
• 9 kW, 37.5 A
• 208 V/60 Hz/3 ph

From The Manufacturer

Compact Booster Heater, electric, 6-gallon storage capacity, electric operation, 9-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6″ plastic non-adjustable legs, Castone tank, 208/60/3-ph, NSF, cUL, UL

*Image may not depict product color, inclusions or accessories.
