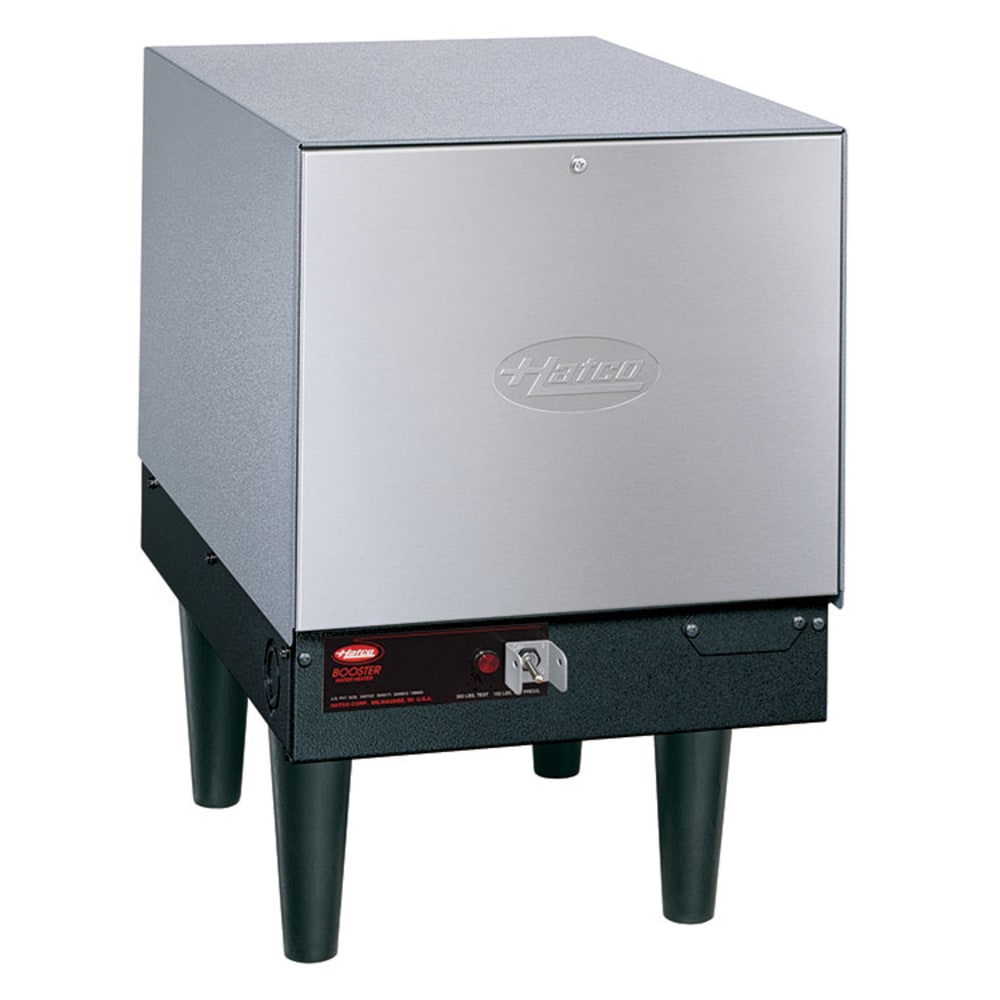

Hatco C-5 Compact Booster Water Heater, 6 Gallon, 5 kW

The stainless steel swinging front panel on the Hatco C-5 compact booster water heater enables quick access to probes and elements for servicing. Made of powder-coated silver hammertone, this unit reaches the 180 degrees Fahrenheit needed to sanitize and flash-dry dishes before reusing them. This unit operates with a calibrated immersion thermostat and fiberglass insulation to maintain the set temperatures. For straightforward monitoring, the two pressure gauges and a pilot indicator light display the unit’s status.

Regulated by a temperature relief valve and pressure reducing valve, the temperature and pressure stay at the appropriate level. The Hatco C-5 compact booster water heater includes a low-water cut-off and a high-temperature limit control for safety. Equipped with 6-inch legs, this unit is made to stand near the kitchen’s dish area, and slide brackets for mounting are available if desired. For fast installation, this unit has been completely pre-wired and pre-plumbed at the factory before shipping.

Product Details

• 6-gal. capacity
• Supplies 180-degree-F water for sanitizing and flash-drying
• Maximum 50 GPH at 40-degree-F rise
• Maximum 29 GPH at 70-degree-F rise
• Temperature relief valve
• Pressure reducing valve
• 2 pressure gauges
• Power switch
• Low-water cut-off prevents burnout of elements
• High-temperature limit control
• Calibrated immersion thermostat
• Pilot indicator light
• Stainless steel front panel grants quick access to probes and elements for servicing
• Powder-coated hammertone body
• Fiberglass insulation traps heat
• Castone-lined tank eliminates limestone
• 6-in. legs
• Fittings for water inlet and outlet
• ³/₄-in. NPT pipe

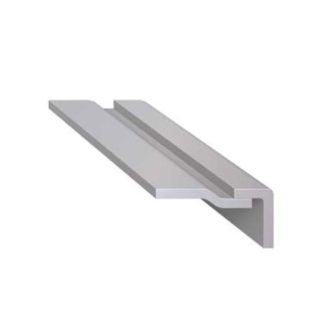

• Available slide mounting brackets (not included)

Dimensions & Utilities

• 13.06 in. W x 26 in. D x 19.78 in. H
• 24.1 A, 5 kW

From The Manufacturer

Compact Booster Heater, electric, 6-gallon storage capacity, electric operation, 5-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6″ plastic non-adjustable legs, Castone tank
